RAM® Universal Post Clamp Mount with Diamond Plate – B Size Medium Arm

RAM® Universal Post Clamp Mount with Diamond Plate – B Size Medium Arm

OVERVIEW

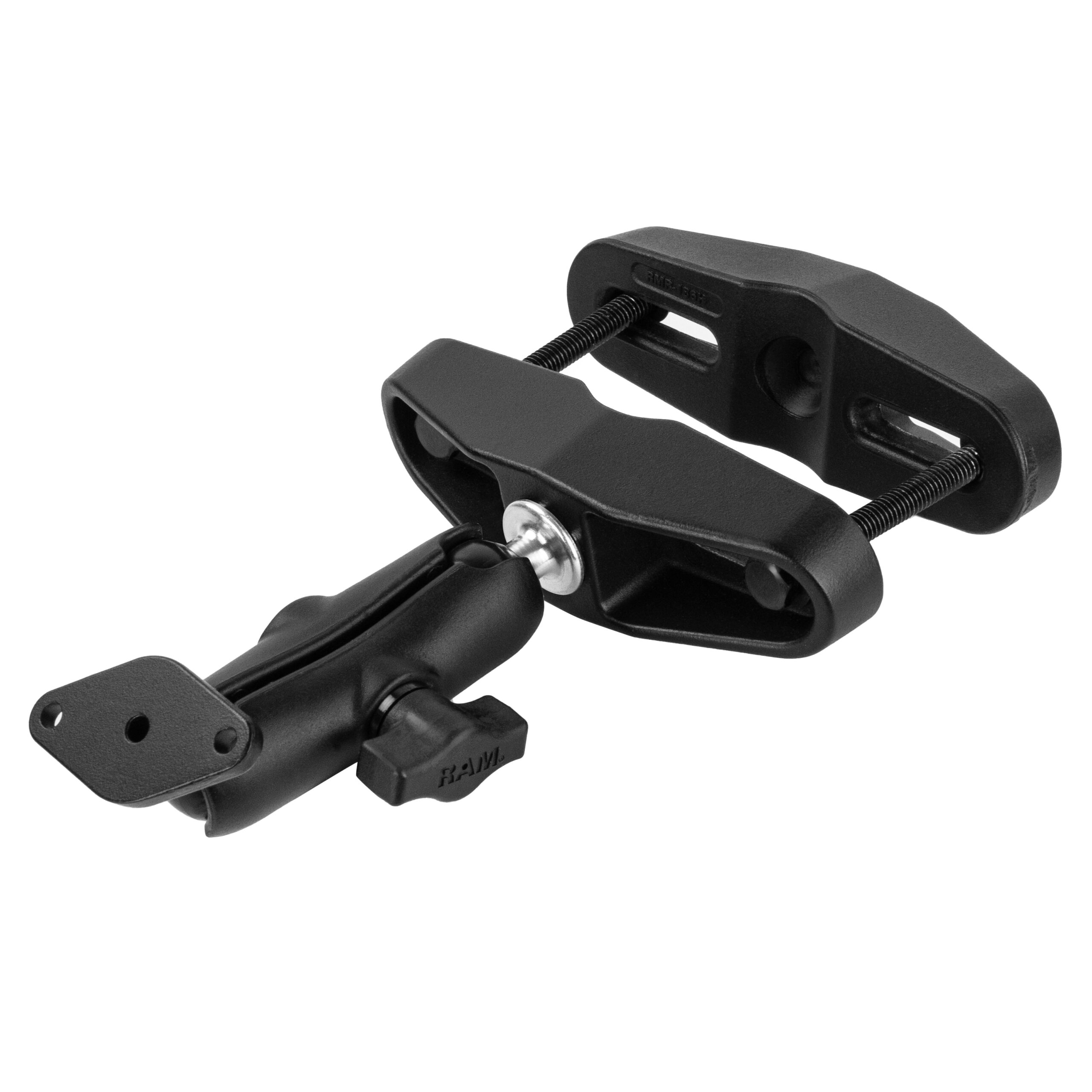

The RAM® Universal Post Clamp Mount with Diamond Plate - B Size Medium Arm (RAM-B-102U-247) is a mounting solution designed to secure small handheld devices to forklifts. This kit consists of one (1) double socket B size medium arm, one (1) diamond plate with B size ball, and one (1) square post clamp. The square post clamp will wrap around a square post with a maximum width of 4" and is tightened by screwing the two plates together with the included nuts and bolts. The RAM® rubber ball and socket technology dampens shock and vibration, as well as allows for almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED

Assembly Hardware

CLAMP RANGE

1.75" - 4" width

SOCKET TO SOCKET LENGTH

3"

HOLE PATTERN

2-Hole AMPS: 1.912"

PLATE SIZE

2.43" x 1.31"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

1.7 lb
