RAM Double Ball Diamond Plate Mount – B Size Long

RAM Double Ball Diamond Plate Mount – B Size Long

OVERVIEW

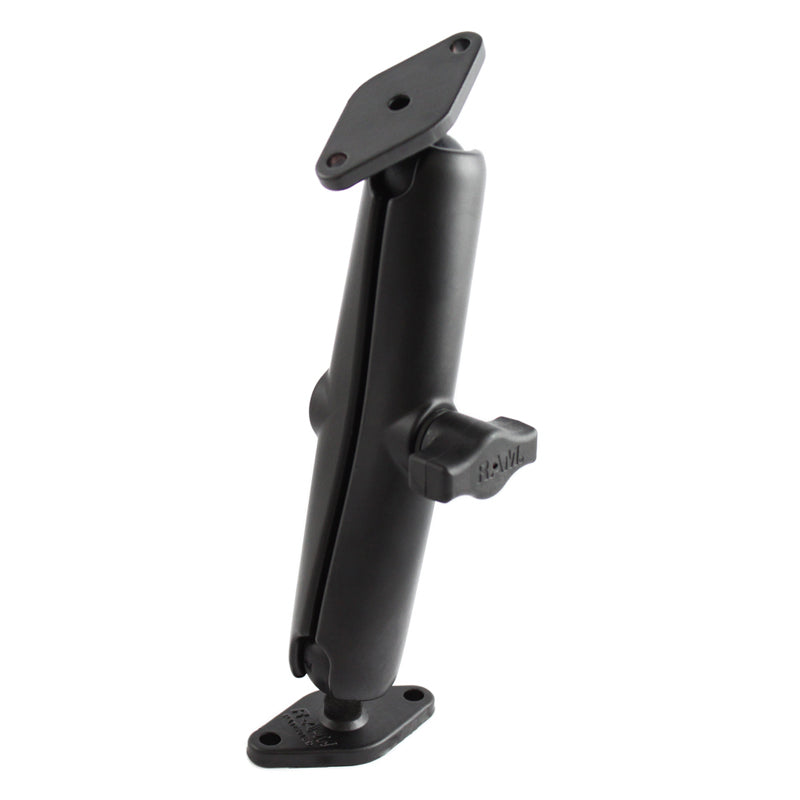

The RAM-B-102U-C consists of a long double socket arm and two diamond bases. The diamond bases measure 2.43" x 1.31" diamond base and contain two holes 1.912" from center to center, positioned at both ends of the diamond base. The hole pattern found on the diamond bases will connect to many RAM cradles, as well as third party cradles including mounts with the industry standard AMPS hole pattern. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm.

PRODUCT DIMENSIONS

Overall Height: 7.3125"

SOCKET TO SOCKET LENGTH

5.31"

HOLE PATTERN

2-Hole AMPS: 1.912"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.72 lb
