RAM® Double Ball Strap Hose Clamp Mount with Diamond Plate – Short

RAM® Double Ball Strap Hose Clamp Mount with Diamond Plate – Short

OVERVIEW

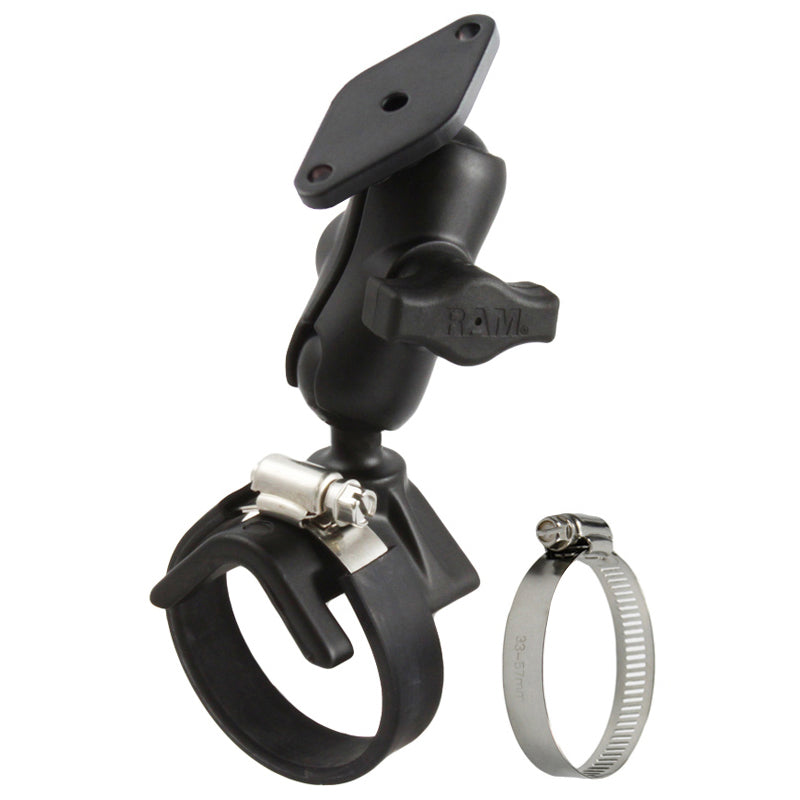

The RAM-B-108-A-238 consists of a short length B size arm with a 2.43" x 1.31" diamond base with 2 hole AMPS pattern and a strap clamp base for rails between 1" and 2.1" diameter.

HARDWARE INCLUDED

(1) #20 Worm Drive Strap Clamp(1) #28 Worm Drive Strap Clamp(1) 6" Rubber Strip

CLAMP RANGE

1" - 2.1" diameter

SOCKET TO SOCKET LENGTH

1.75"

HOLE PATTERN

2-Hole AMPS: 1.912"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Retail Bag

WEIGHT

0.66 lb
