RAM® Universal Marine Electronic Mount – B Size Long

RAM® Universal Marine Electronic Mount – B Size Long

OVERVIEW

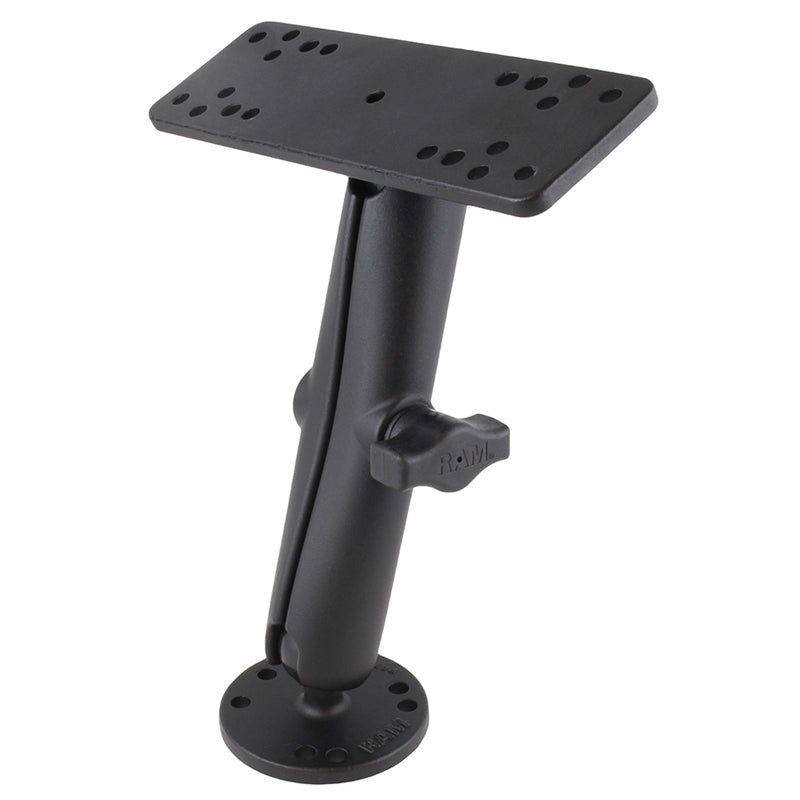

The RAM-B-111U-C consists of a long double socket arm, 2.5" diameter round base, and 6.25" x 2" rectangle base. The round base includes a 1" B size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 1" B size rubber ball and contains a variety of pre-drilled holes that are compatible with several marine electronic devices, including fish finders and chartplotters.

PRODUCT DIMENSIONS

Overall Height: 7.3125"

SOCKET TO SOCKET LENGTH

5.31"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" DiameterSee Drawing

PLATE SIZE

Top Plate: 6.25" x 2.5"Bottom Plate: 2.5" Diameter

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.97 lb

ADDITIONAL INFORMATION

This plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
