RAM Universal Marine Electronic Mount – B Size Medium

FEATURES

• Complete flat surface, drill-down mounting solution with an overall height of 5"
• RAM® Mounts ball and socket technology allows for near-infinite adjustability
• Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
• Backed by a lifetime warranty

OVERVIEW

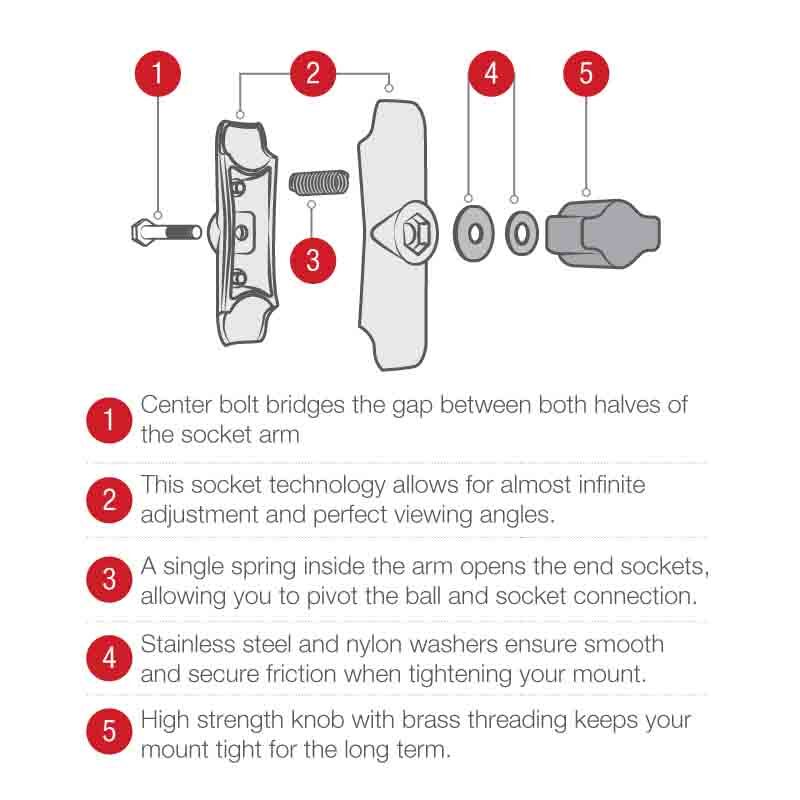

The RAM-B-111U consists of a medium double socket arm, 2.5" diameter round base, and 6.25" x 2" rectangle base. The round base includes a 1" B size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 1" B size rubber ball and contains a variety of pre-drilled holes that are compatible with several marine electronic devices, including fishfinders and chartplotters.

PRODUCT DIMENSIONS:

Overall Height: 5"

SOCKET-TO-SOCKET LENGTH:

3"

HOLE PATTERN:

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

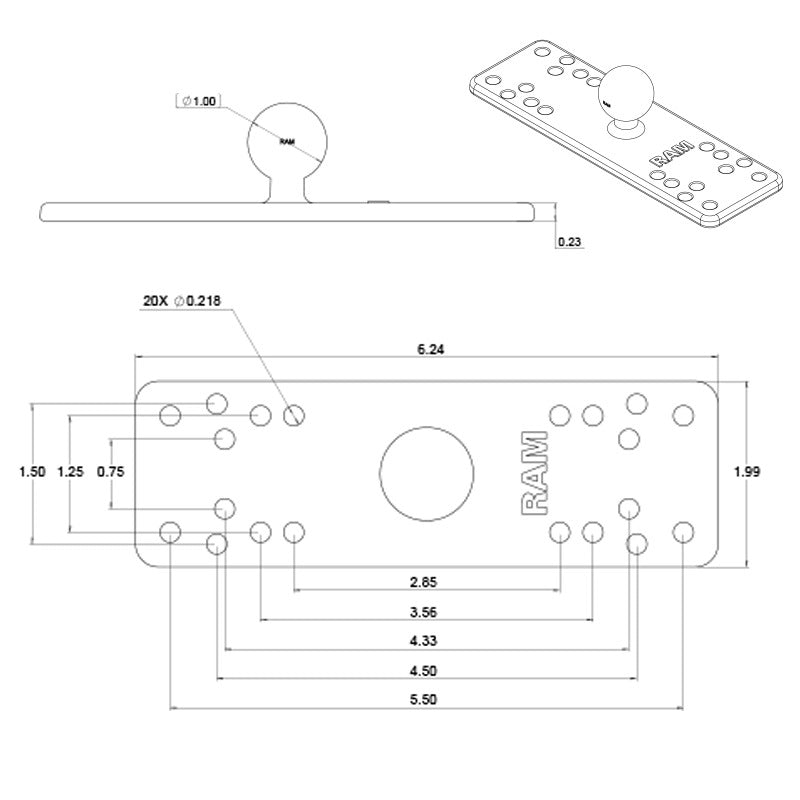

See Drawing

PLATE SIZE:

• Top Plate: 6.25" x 2.5"
• Bottom Plate: 2.5" Diameter

BALL/SOCKET SIZE:

B Size (1")

WEIGHT CAPACITY:

• Standard Use: 2 lbs
• Heavy-Duty Use: 1 lb

MATERIALS:

Marine-grade aluminum

WEIGHT:

0.71 lbs.

ADDITIONAL INFORMATION:

• This plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

COMPATIBLE DEVICES

• Garmin

  • GPSMAP 162
  • GPSMAP 168
  • GPSMAP 175
  • GPSMAP 180
  • GPSMAP 180C
  • GPSMAP 182
  • GPSMAP 185
  • GPSMAP 188
  • GPSMAP 232
  • GPSMAP 238
  • Striker 5 Series
  • Striker Plus 5cv
  • Striker Vivid 5cv
