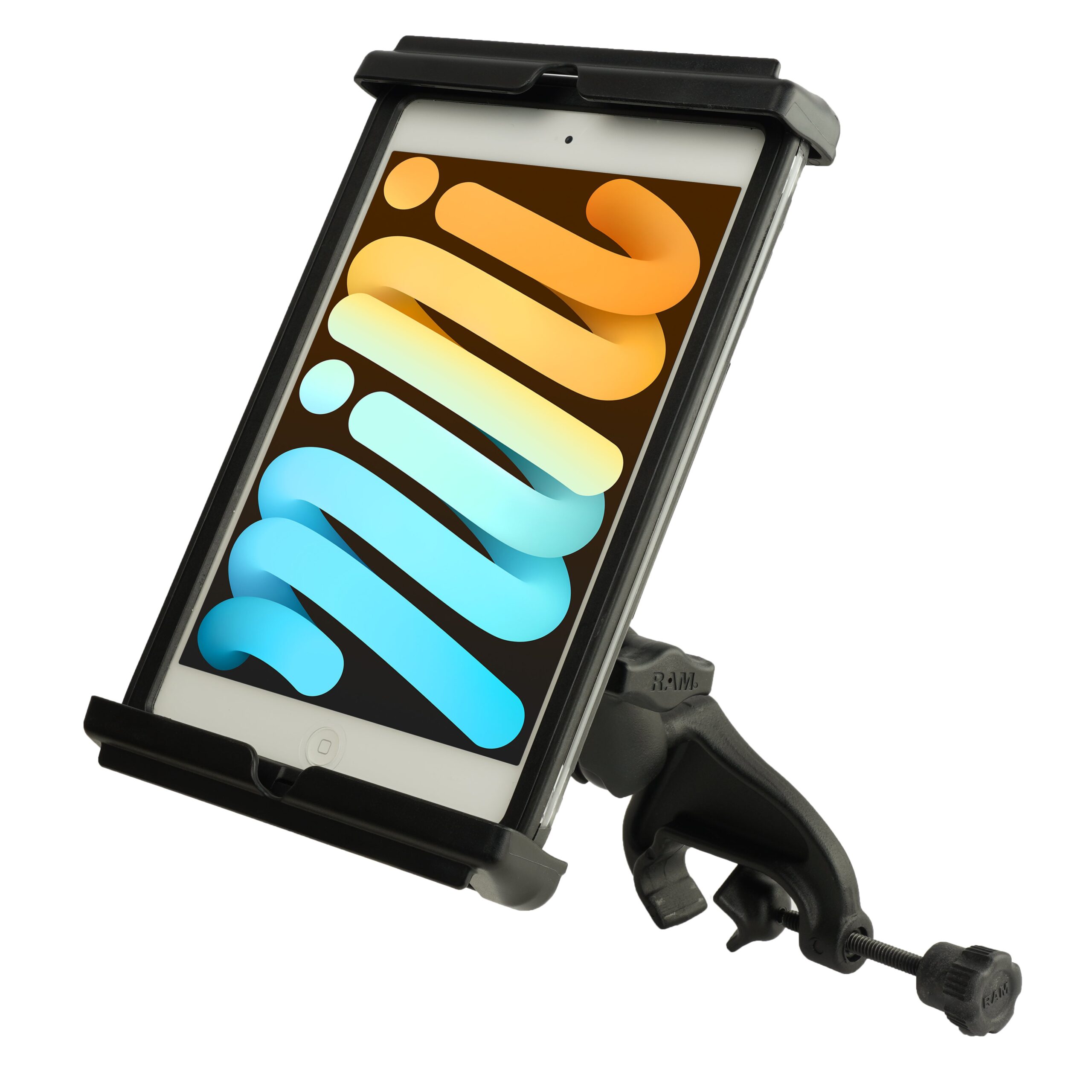

RAM® Tab-Tite™ Yoke Clamp Mount for iPad mini with Heavy Duty Cases

RAM® Tab-Tite™ Yoke Clamp Mount for iPad mini with Heavy Duty Cases

OVERVIEW

This ideal airplane yoke mount is designed specifically to hold any 8" tablet with a heavy duty case including the Apple iPad mini (A17 Pro), mini 6 as well as all previous iPad mini models, and consists of a RAM® Tab-Tite™, yoke clamp base, B size medium length double socket arm and round 2.5" base that contains the universal AMPS hole pattern to attach the holder. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles. The RAM® Tab-Tite™ spring-loaded, quick release holder offers a secure fit with easy access to the mounted tablet. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions. Included is a set of four nuts and bolts to attach the holder to any RAM® components that contain the universal AMPS hole pattern. The RAM® Tab-Tite™ holder is compatible with any tablet within the listed dimensions.

HARDWARE INCLUDED

Assembly Hardware

HOLDER DIMENSIONS

Height Range: 7.125" - 9.5"Width Range: 5.06" - 5.68"Depth Range: .13" - 1"

CLAMP RANGE

.625" - 1.25"

SOCKET TO SOCKET LENGTH

3"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

1.43 lb
