RAM® Glare Shield & Window Scope Camera Mount

RAM® Glare Shield & Window Scope Camera Mount

OVERVIEW

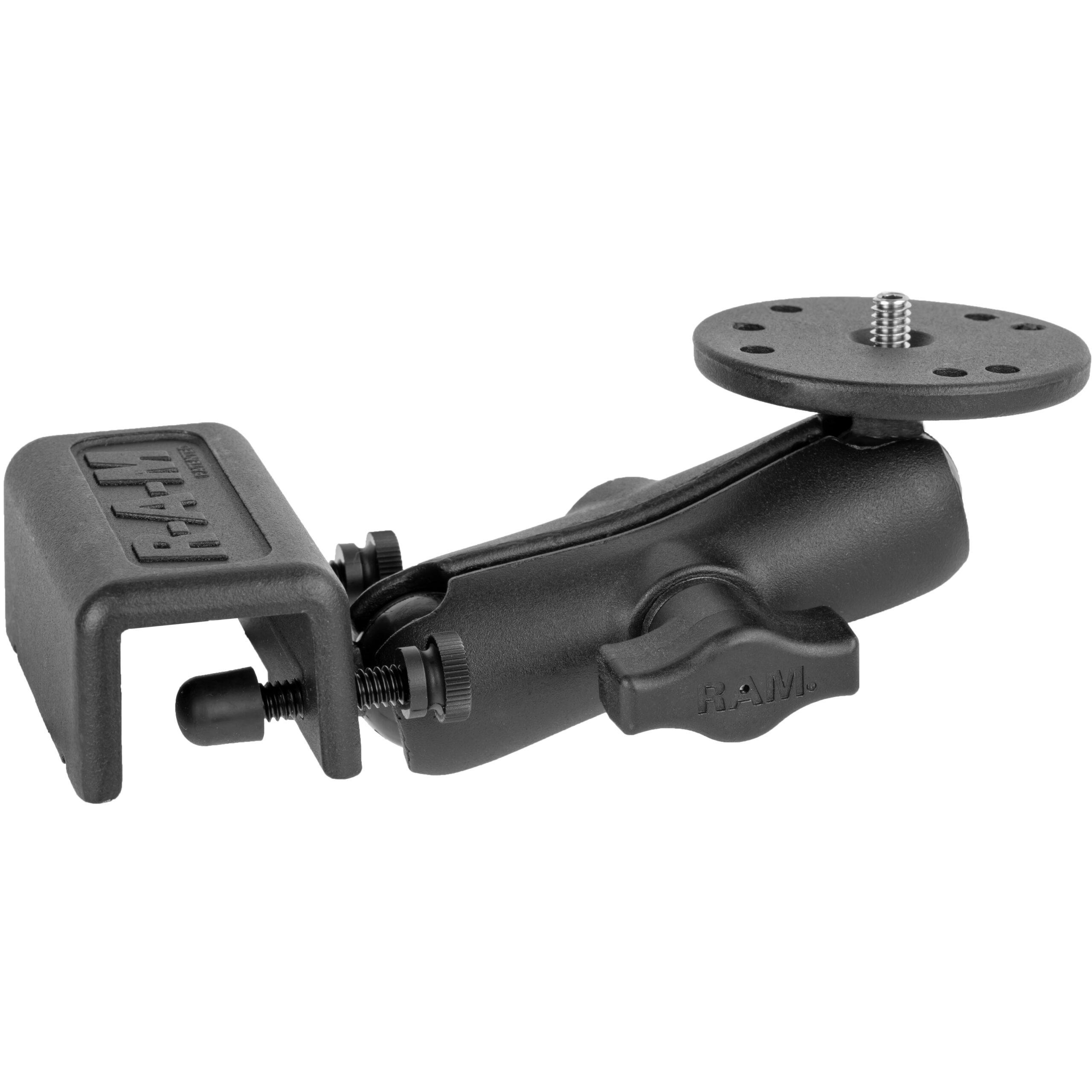

The RAM-B-127 consists of a medium length B-size double socket arm with a 2.5" diameter round plate with universal AMPS hole pattern and a removable 1/4"-20 threaded post on one side and a glare shield clamp base on the other side. The glare shield clamp base is suitable for the edges of glare shields or other sturdy surfaces up to .625" thick.

HARDWARE INCLUDED

Assembly Hardware

CLAMP RANGE

.625" max

SOCKET TO SOCKET LENGTH

3"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.78 lb
