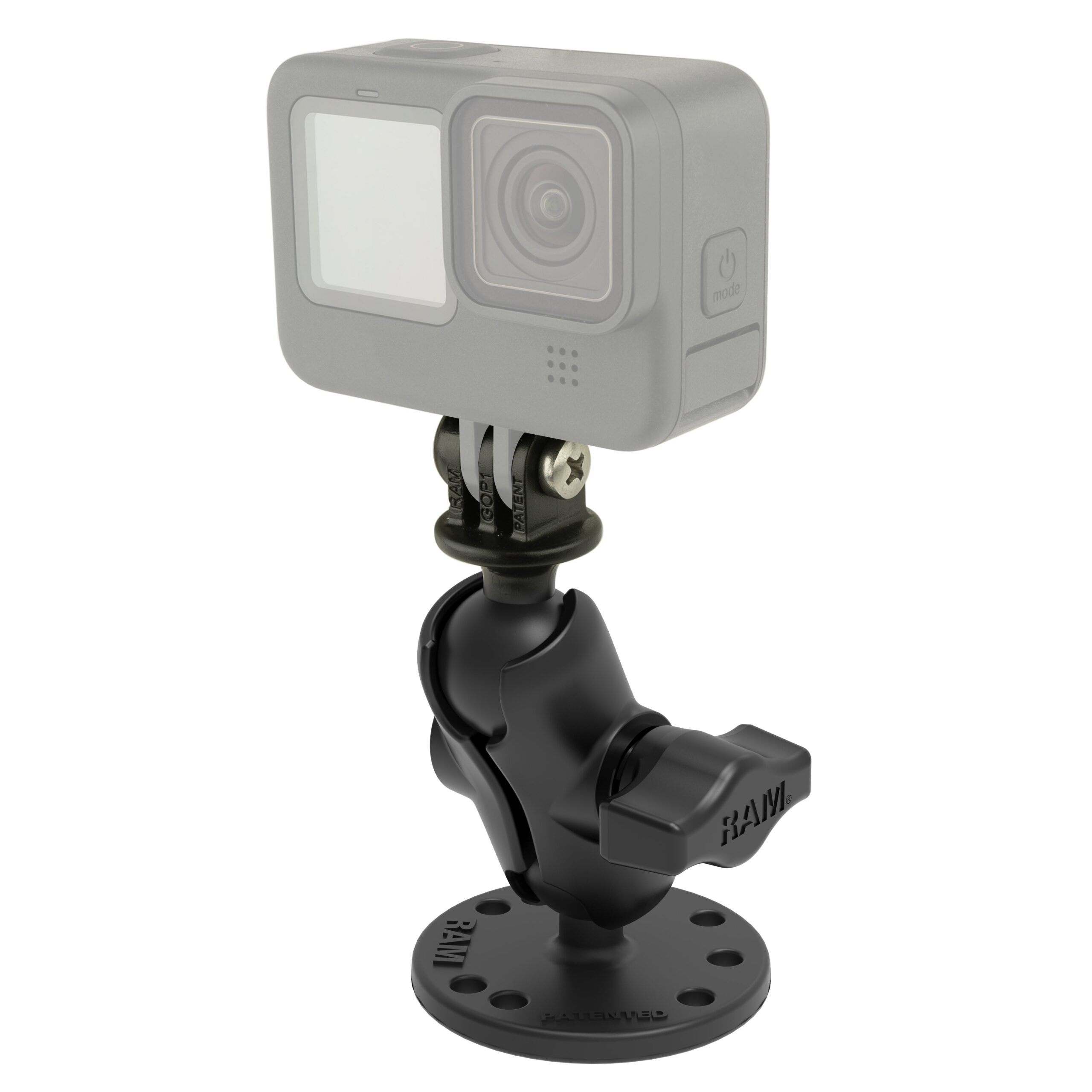

RAM® Drill-Down Double Ball Mount with Universal Action Camera Adapter

RAM® Drill-Down Double Ball Mount with Universal Action Camera Adapter

OVERVIEW

The RAM-B-138-A-GOP1U consists of a 2.5" diameter round base with the universal AMPS hole pattern, SHORT size double socket arm and 1" diameter ball with custom GoPro® Hero adapter. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The RAM-B-138-A-GOP1U can be used as a drill-down or a temporary, removable mounting solution with the addition of the RAP-339U accessory. The GoPro® Hero adapter attaches directly to the underside of the camera, replacing the factory mounting bracket.

HARDWARE INCLUDED

Assembly Hardware

SOCKET TO SOCKET LENGTH

1.75"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE

2.5" Diameter

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

0.39 lb
