RAM® Drill-Down Mount for Garmin GPSMAP 60 Series + More

RAM® Drill-Down Mount for Garmin GPSMAP 60 Series + More

OVERVIEW

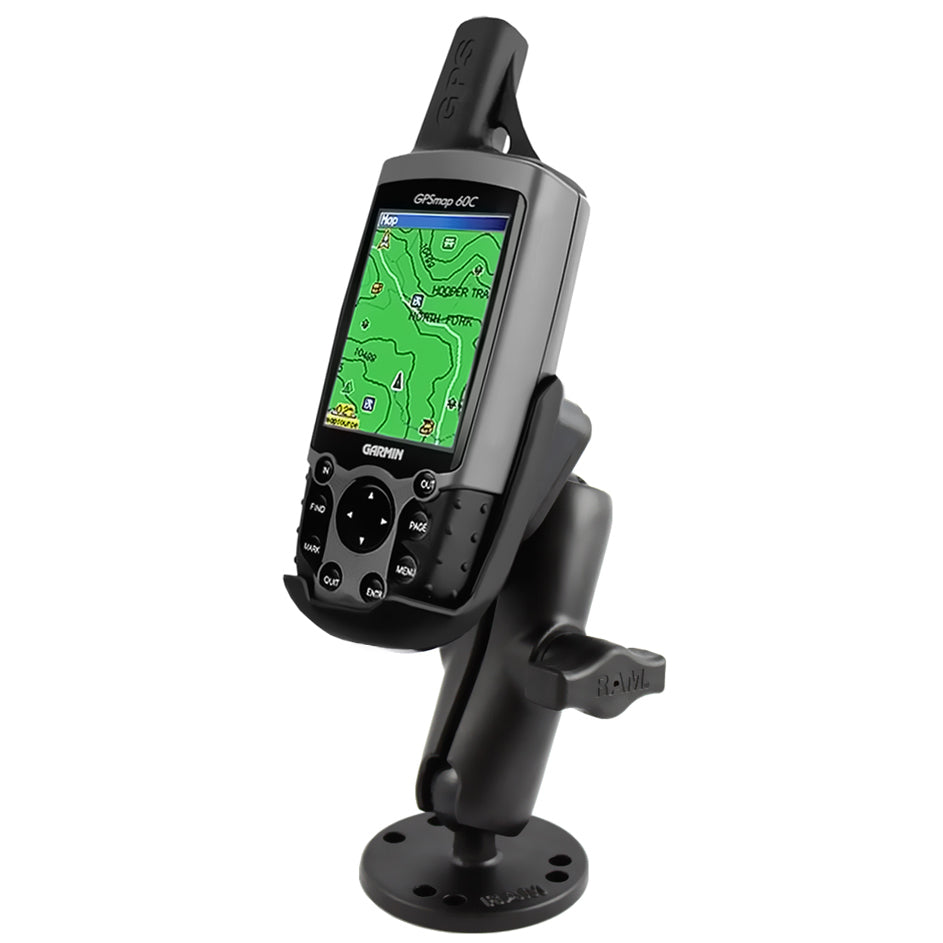

The RAM-B-138-GA12U consists of a 2.5" diameter round base with the universal AMPs hole pattern, standard length double socket arm, diamond adapter base and high strength composite cradle for the Garmin GPSMAP. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED

Assembly Hardware

SOCKET TO SOCKET LENGTH

3"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE

2.5" Diameter

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

0.57 lb

ADDITIONAL INFORMATION

This mount requires the standard belt clip button which is included with the purchase of the GPS unit from Garmin.
