RAM® EZ-Roll’r™ Drill-Down Mount for SPOT X™

RAM® EZ-Roll’r™ Drill-Down Mount for SPOT X™

OVERVIEW

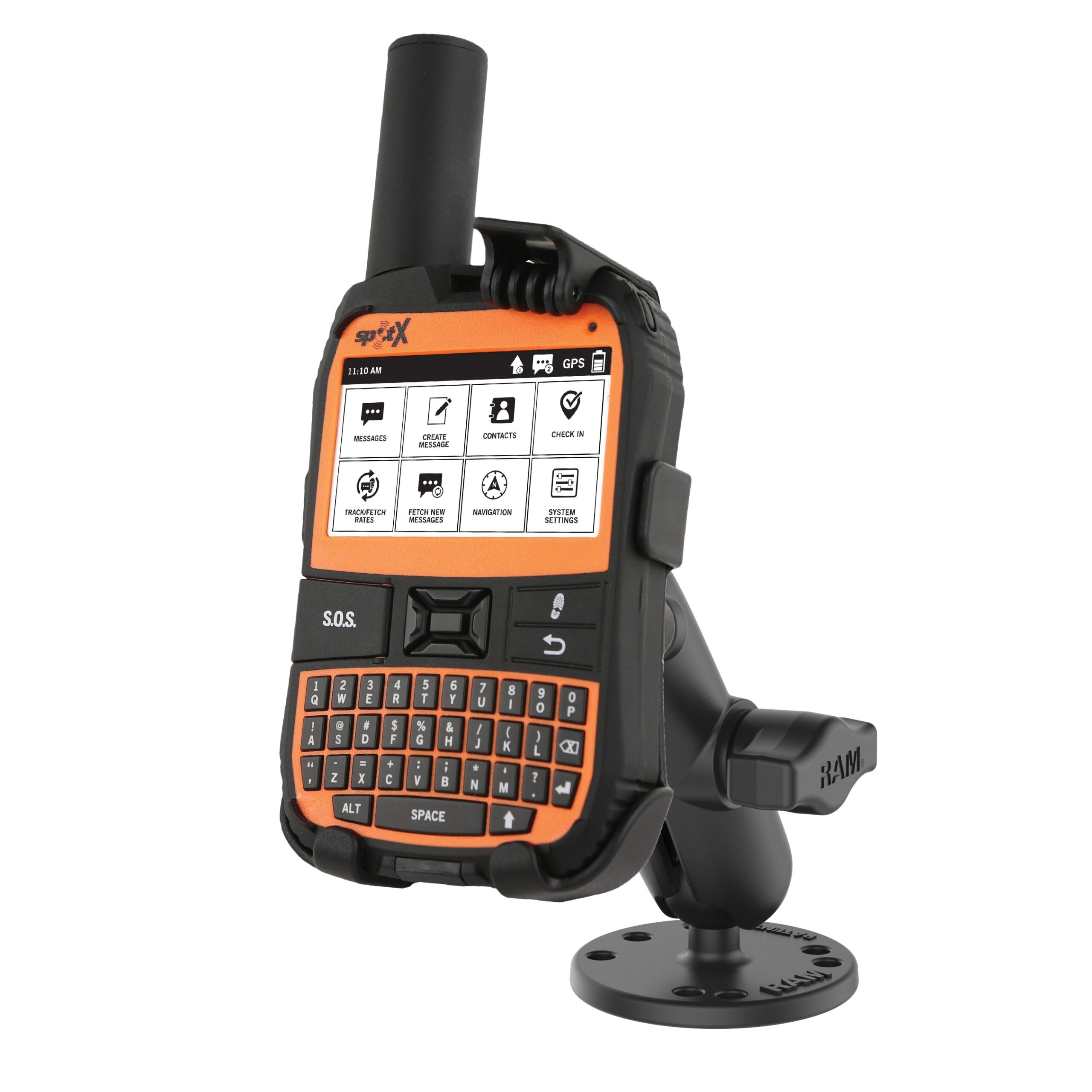

The form-fitting, high-strength composite RAM® EZ-Roll’r™ cradle for the SPOT X™ allows for the attachment of RAM® components containing the universal AMPS hole pattern. With the device in the cradle, all buttons and the power port remain fully accessible. The RAM® EZ-Roll’r™ cradle for the SPOT X™ is compatible and interchangeable with a wide range of RAM® diamond ball bases. Included is a set of two nuts and bolts. Consists of a medium length B size 1" double socket arm, one 2.5" diameter round ball base, and one diamond ball base (both bases feature the universal AMPS hole pattern). The ball and socket system provides shock and vibration damping, and allows for near-infinite adjustability to achieve an ideal viewing and operating angle of your device.

HARDWARE INCLUDED

Assembly Hardware

SOCKET TO SOCKET LENGTH

3"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE

2.5" Diameter

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

0.62 lb
