RAM® Tab-Tite™ Drill-Down Mount with Backing Plate for Small Tablets

RAM® Tab-Tite™ Drill-Down Mount with Backing Plate for Small Tablets

OVERVIEW

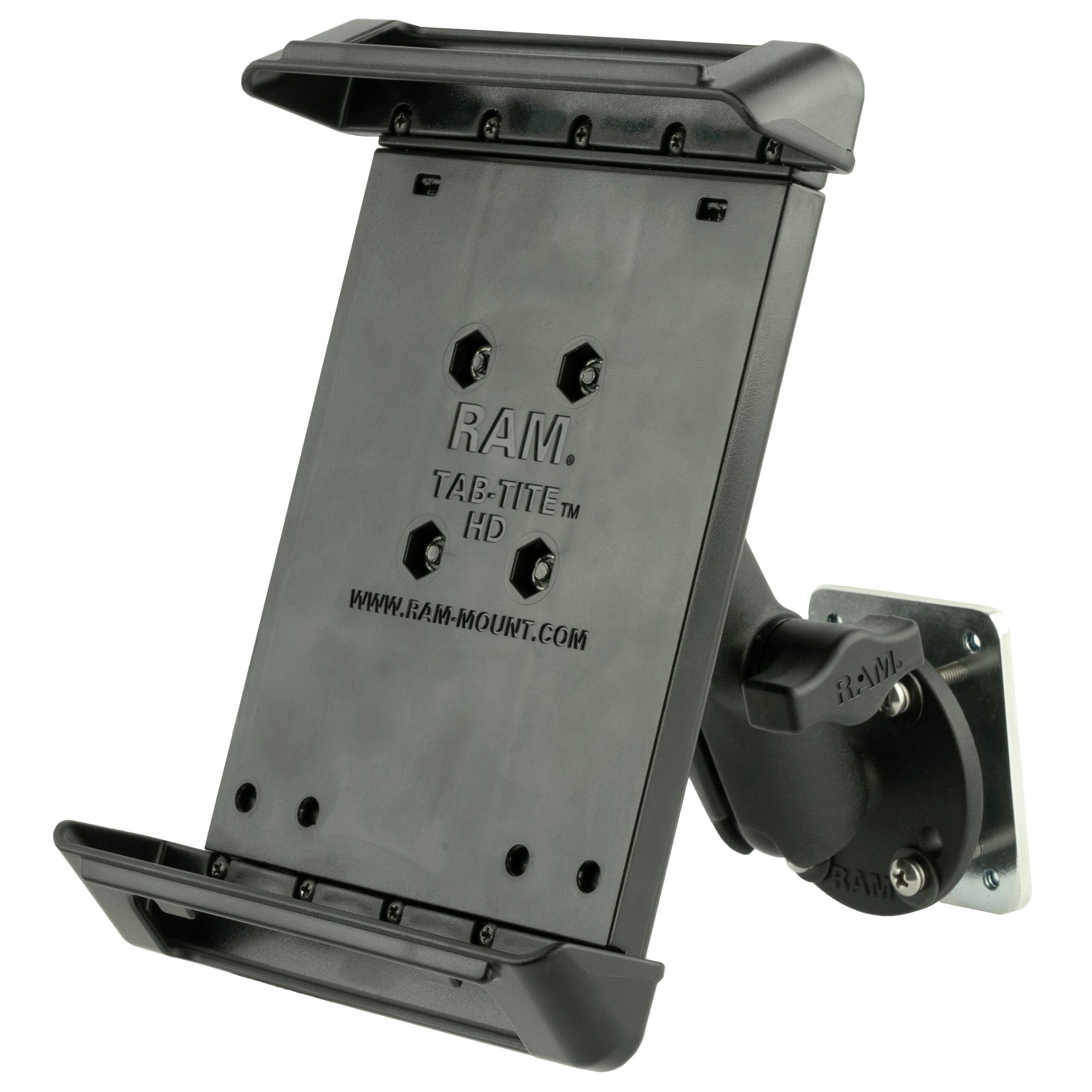

The RAM-B-138-TAB4-225B2U consists of a 2.10" x 2.60" backer plate, double socket arm, round base adapter and Tab-Tite™ universal clamping cradle. The spring loaded Tab-Tite™ cradle makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

HARDWARE INCLUDED

Assembly Hardware(1) 2.10" x 2.60" Steel Backing Plate(4) #8-32 x 1" Screws(4) #8 Split Lock Washers(4) #8 Flat Washers

HOLDER DIMENSIONS

Height Range: 7.375" - 10"Width Range: 4" - 5.31"Depth Range: .13" - 1.06"

SOCKET TO SOCKET LENGTH

3"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

SteelMarine-grade aluminumHigh strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

1.35 lb
