RAM® Double Ball Mount with Backing Plate & Diamond Plate

RAM® Double Ball Mount with Backing Plate & Diamond Plate

OVERVIEW

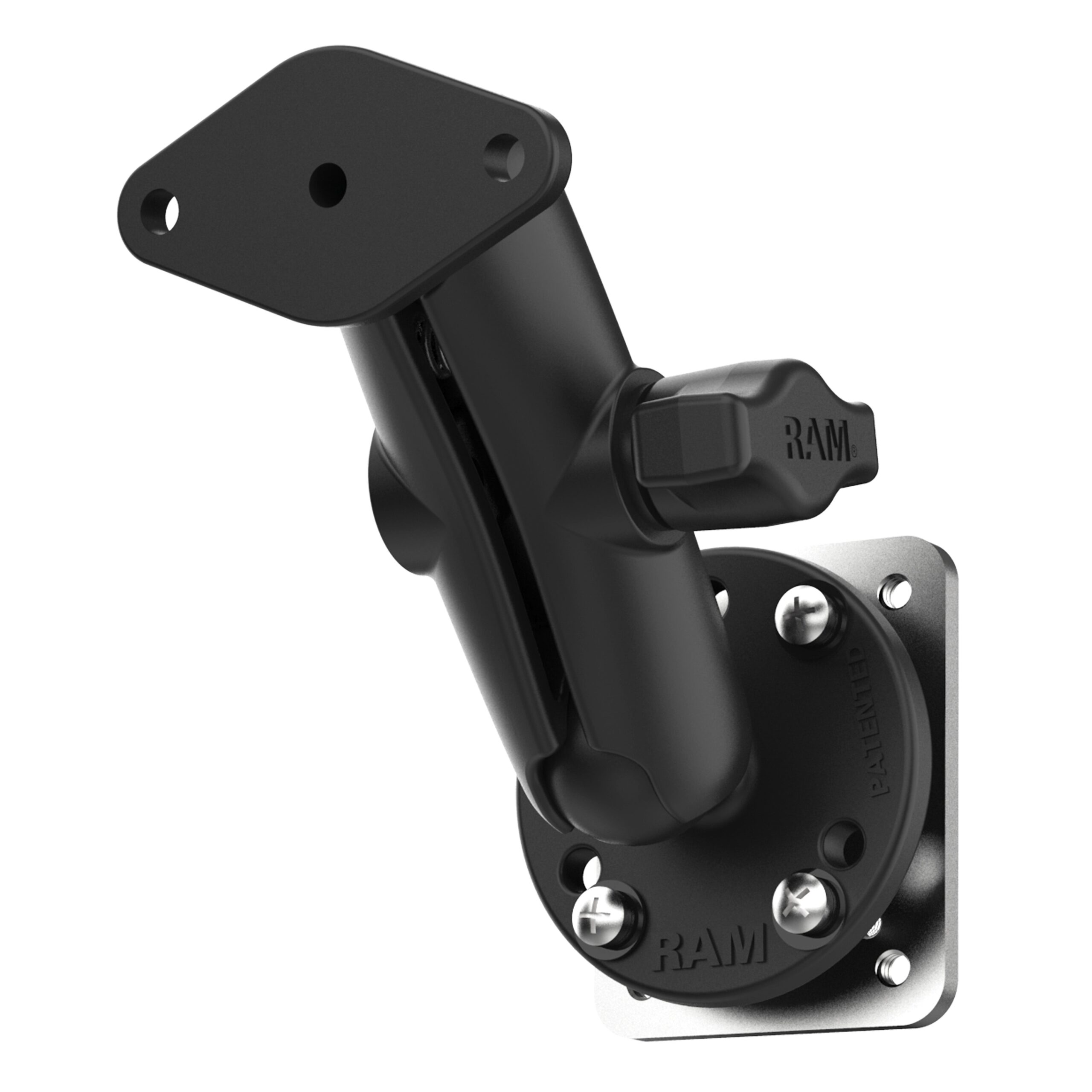

The RAM® Double Ball Mount with Backing Plate & Diamond Plate (RAM-B-138U-225B2) consists of a double socket arm, one 2.5" diameter round base, one 2.43" x 1.31" diamond base, one 2.10" x 2.60" backing plate, and mounting hardware. Each base features the universal AMPS hole pattern, making them compatible with all RAM® device holders. The mount is designed with a 1" diameter rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles.

HARDWARE INCLUDED

(1) 2.10" x 2.60" Steel Backing Plate(4) #8-32 x 1" Screws(4) #8 Split Lock Washers(4) #8 Flat Washers

PRODUCT DIMENSIONS

Overall Height: 5"

SOCKET TO SOCKET LENGTH

3"

HOLE PATTERN

2-Hole AMPS: 1.912"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum Stainless steel

PACKAGING TYPE

Poly Bag

WEIGHT

0.75 lb
