RAM Double Ball Drill-Down Mount with Diamond Plate – Short

RAM Double Ball Drill-Down Mount with Diamond Plate – Short

OVERVIEW

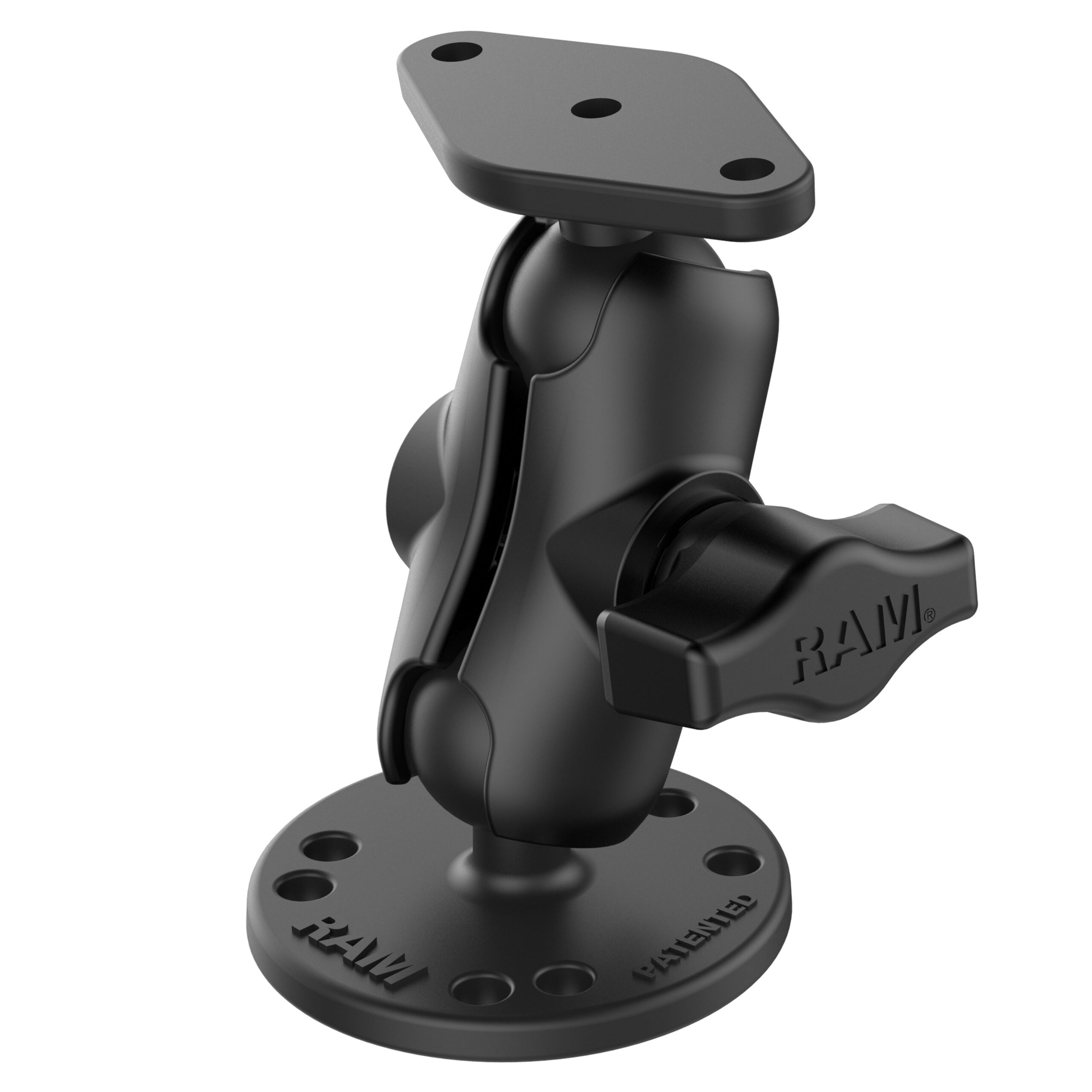

The RAM-B-138U-A consists of a 2.5" diameter round base that contains the universal AMPs hole pattern, SHORT double socket arm and diamond base adapter. The mount is designed with a 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the diamond base adapter will connect to most RAM cradles. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device.

PRODUCT DIMENSIONS

Overall Height: 3.75"

SOCKET TO SOCKET LENGTH

1.75"

HOLE PATTERN

Diamond Plate: 2-Hole AMPS: 1.912"Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE

Round Plate: 2.5" DiameterDiamond Plate: 2.43" x 1.31"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.42 lb
