RAM® Drill-Down Double Ball Mount with Rectangle AMPS Plate – Short

RAM® Drill-Down Double Ball Mount with Rectangle AMPS Plate – Short

OVERVIEW

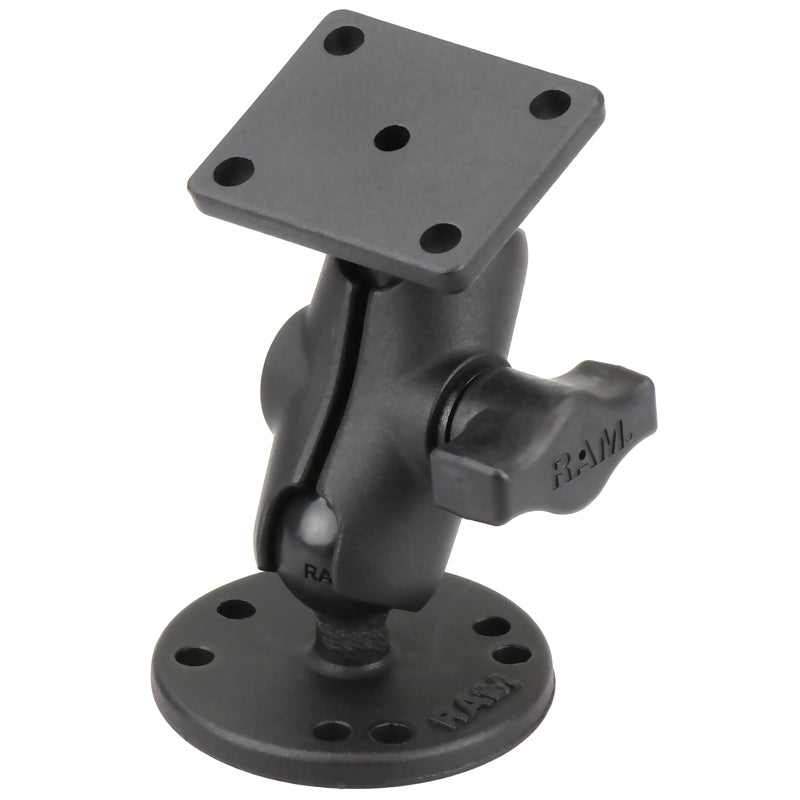

The RAM-B-139U-A consists of a short length B-size double socket arm, one 2.5" round plate and one 2" X 1.7" plate that contains the universal AMPS hole pattern. The mount is designed with a 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The AMPS hole pattern on each plate will connect to many RAM cradles, including all iPad cradles. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device.

PRODUCT DIMENSIONS

Overall Height: 3.75"

SOCKET TO SOCKET LENGTH

1.75"

HOLE PATTERN

Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree: 1.812" DiameterRectangular Plate: 4-Hole AMPS: 1.181" x 1.496"

PLATE SIZE

2.5" Diameter

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.45 lb
