RAM® Handlebar U-Bolt Mount for Garmin Rino 520, 520HCx, 530 & 530HCx

RAM® Handlebar U-Bolt Mount for Garmin Rino 520, 520HCx, 530 & 530HCx

OVERVIEW

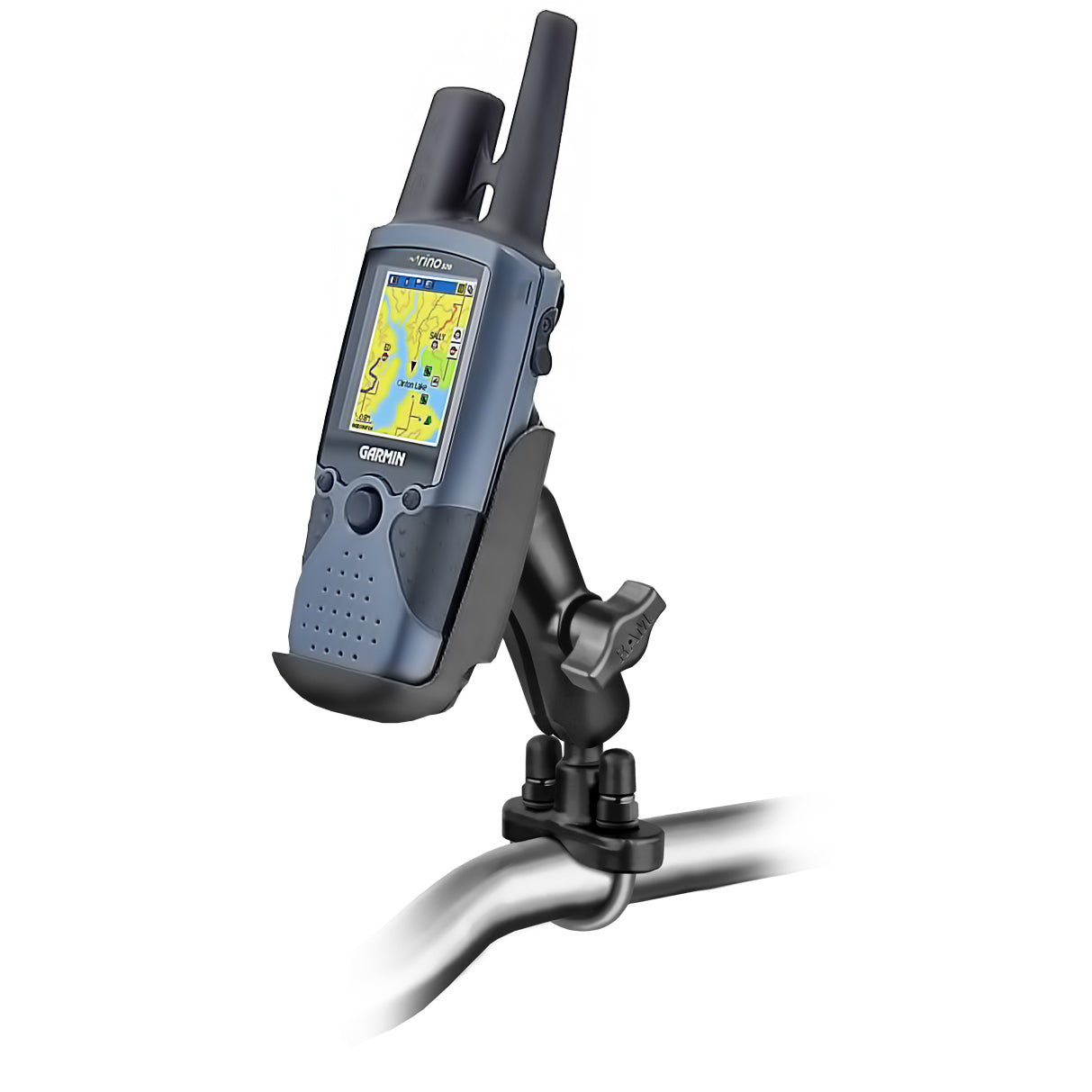

The RAM-B-149-GA20 consists of a stainless steel u-bolt base, double socket arm, diamond adapter base and custom high strength composite cradle for the Garmin Rino 520 and 530 series. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the motorcycle GPSMAP® mount to your optimum viewing position. Included in this package is a GPS safety lanyard clip and hardware that will accommodate rails from 0.50" to 1" in diameter.

HARDWARE INCLUDED

Assembly Hardware(1) 1/4"-20 U-Bolt for .5" - 1" Rails(2) 1/4"-20 Nylock Nuts(2) Rubber Caps(1) U-Bolt Spacer

CLAMP RANGE

.5" - 1" diameter

SOCKET TO SOCKET LENGTH

3"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum High strength composite

PACKAGING TYPE

Retail Bag

WEIGHT

0.54 lb
