RAM® Chrome Handlebar U-Bolt Mount with Short Double Socket Arm

RAM® Chrome Handlebar U-Bolt Mount with Short Double Socket Arm

OVERVIEW

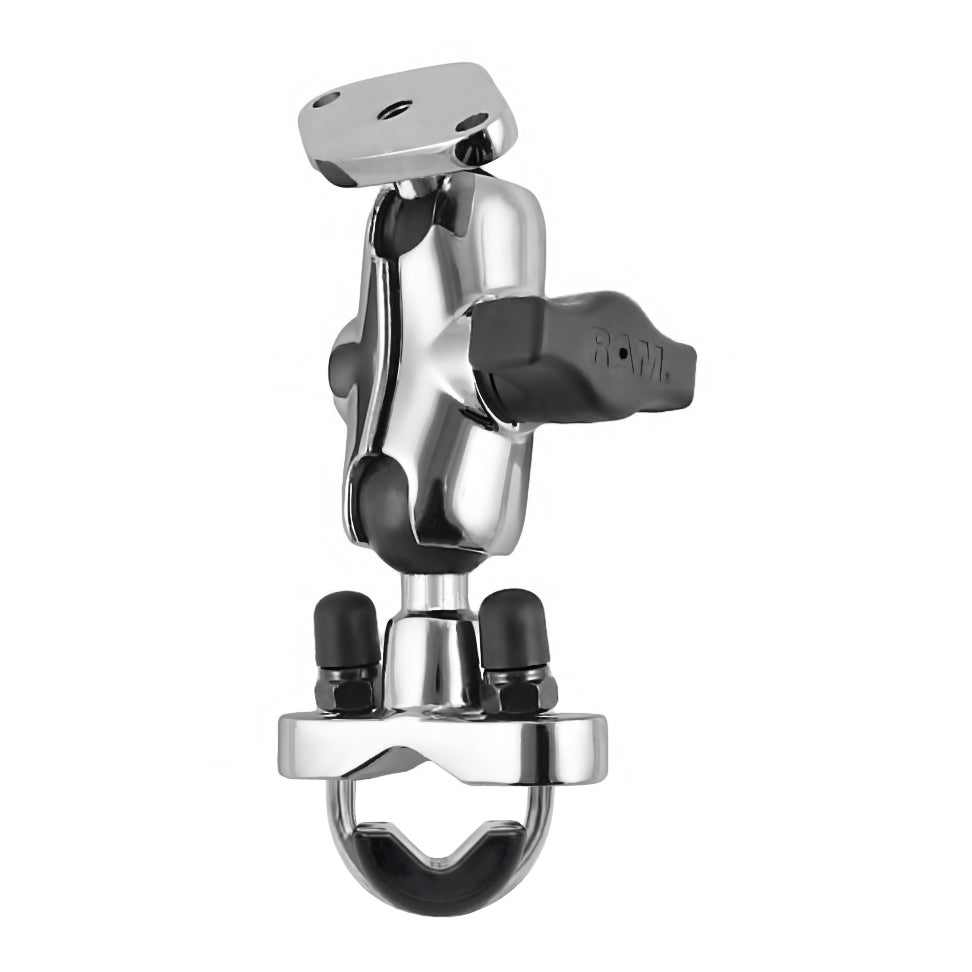

The RAM-B-149ACH-LO4 consists of a stainless steel u-bolt base, SHORT CHROME double socket arm and diamond adapter base. The diamond adapter base has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED

(1) 1/4"-20 U-Bolt for .5" - 1" Rails(2) 1/4"-20 Nylock Nuts(2) Rubber Caps(1) U-Bolt Spacer

CLAMP RANGE

.5" - 1" diameter

SOCKET TO SOCKET LENGTH

1.75"

HOLE PATTERN

2-Hole AMPS: 1.912"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Retail Bag

WEIGHT

0.58 lb
