RAM® ATV/Side By Side Double Ball Rail Mount with 1/4″-20 Threaded Stud

RAM® ATV/Side By Side Double Ball Rail Mount with 1/4″-20 Threaded Stud

OVERVIEW

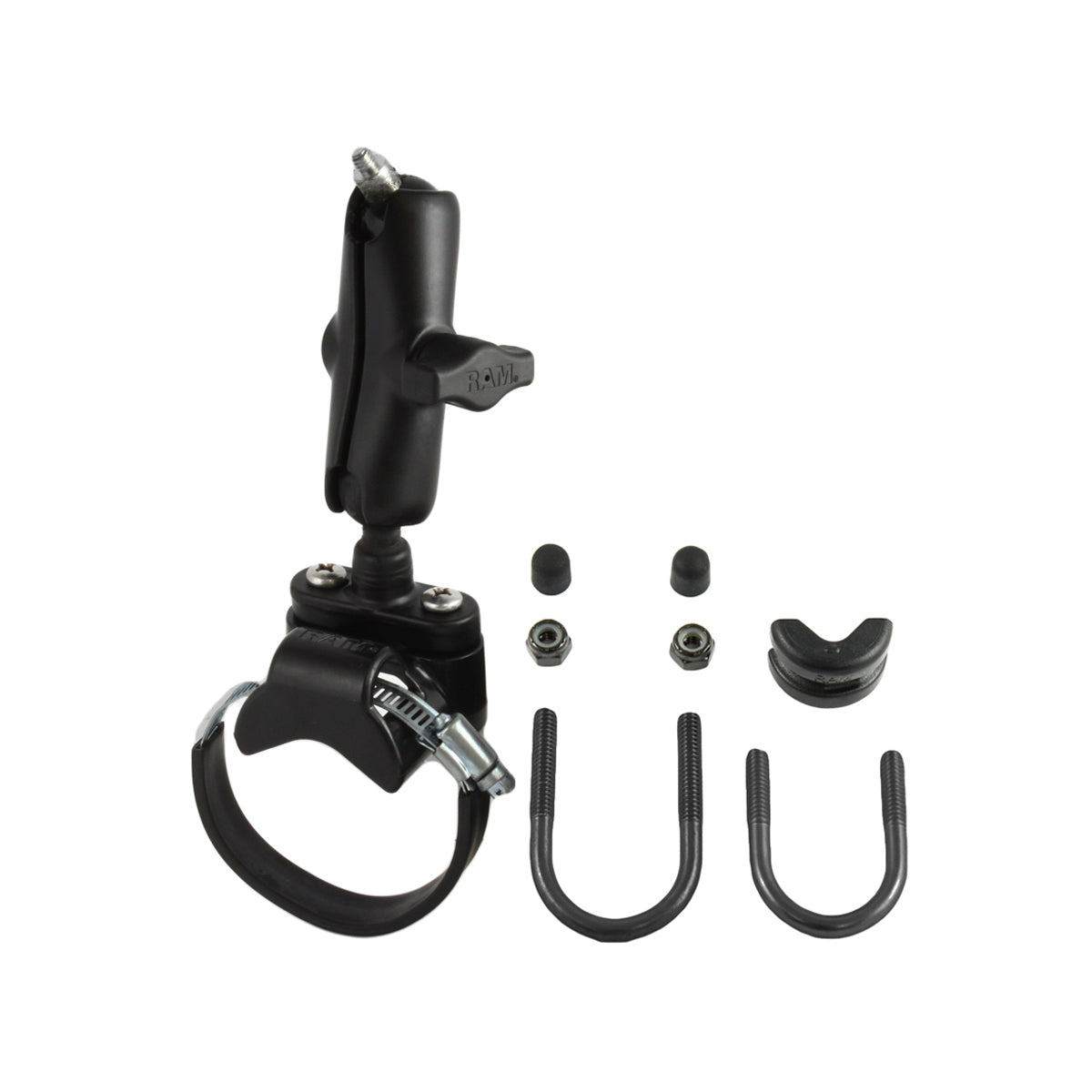

The RAM-B-149Z-2-237 consists of a medium length B-size double socket arm with a 1/4"-20 threaded stud and an ATV/Side By Side clamp base.

HARDWARE INCLUDED

(1) Strap Clamp Adapter(2) 1/4"-20 x 1" Machine Screws(2) 1/4"-20 Nylock Nuts(1) Zinc Worm Drive Strap Clamp(1) 6" Rubber Strip(1) 1/4"-20 U-Bolt for .5" - 1" Rails(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails(2) Rubber Caps(1) U-Bolt Spacer

CLAMP RANGE

U-Bolt: .5" - 1.25" diameterStrap Clamp: 1.57" - 3.15" diameter

SOCKET TO SOCKET LENGTH

3"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum High strength composite

PACKAGING TYPE

Retail Bag

WEIGHT

0.82 lb
