RAM® ATV/Side By Side Rail Mount for Garmin Astro 320, GPSMAP 62 + More

RAM® ATV/Side By Side Rail Mount for Garmin Astro 320, GPSMAP 62 + More

OVERVIEW

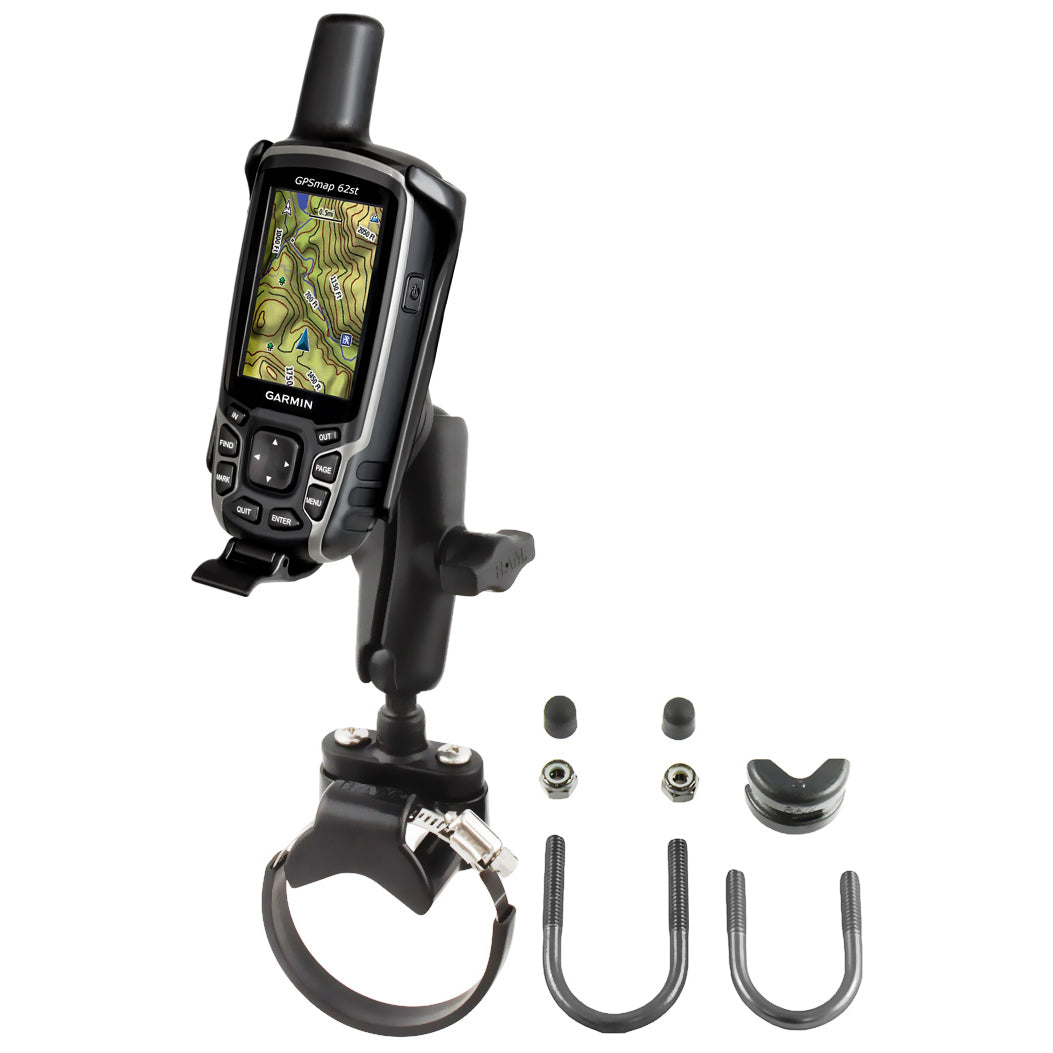

The RAM-B-149Z-2-GA41U consists of a steel strap base, u-bolt bases, double socket, diamond adapter base and high strength composite cradle. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes on Side By Side’s, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATVs using the included hardware. With the ball base in place, you have the foundation for mounting everything from GPS Devices, RAM Aqua Boxes, Spotlights and Radios. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED

Assembly Hardware(1) Strap Clamp Adapter(2) 1/4"-20 x 1" Machine Screws(2) 1/4"-20 Nylock Nuts(1) Zinc Worm Drive Strap Clamp(1) 6" Rubber Strip(1) 1/4"-20 U-Bolt for .5" - 1" Rails(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails(2) Rubber Caps(1) U-Bolt Spacer

CLAMP RANGE

U-Bolt: .5" - 1.25" diameterStrap Clamp: 1.57" - 3.15" diameter

SOCKET TO SOCKET LENGTH

3"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

1.3 lb
