RAM Spine Clip Garmin Mount with Handlebar U-Bolt Base (RAM-B-149Z-A-GA76U)

RAM Mounts

$103.00

RAM Spine Clip Holder with Ball for Garmin Handheld Devices

$31.00

In stock

RAM Double Socket Arm - B Size Short

$34.00

In stock

RAM Handlebar U-Bolt Base for Rails 0.5" to 1.25" in Diameter - B Size

$38.00

In stock

In stock

Not sure which RAM® Mount you need?Build your complete mount: pick your device and where it goes.Build my mount
SKU RAM-B-149Z-A-GA76U Categories ,
Overview

Overview

The RAM® Spine Clip holder is a mount adapter that easily clips into the integrated spine connection on a wide variety of Garmin devices. Included is a medium length RAM® double socket arm and zinc-coated handlebar U-Bolt base that accommodates rails from .5” to 1.25” in diameter. This ideal motorcycle mount is perfect for securing your Garmin device in the harshest conditions.

Features

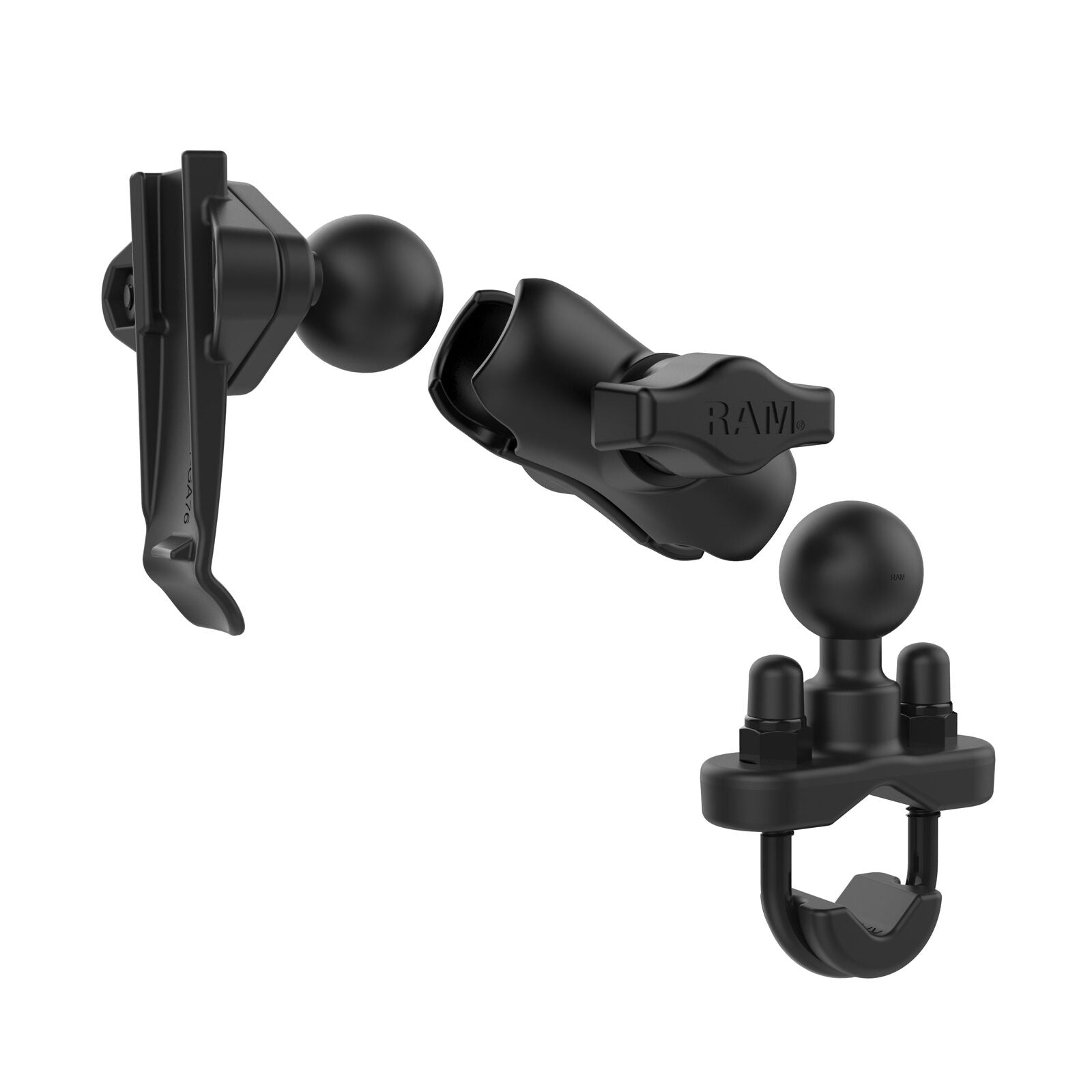

  • Kit includes RAM® Spine Clip Holder for Garmin, B size diamond ball base, short double socket arm and RAM® U-Bolt base

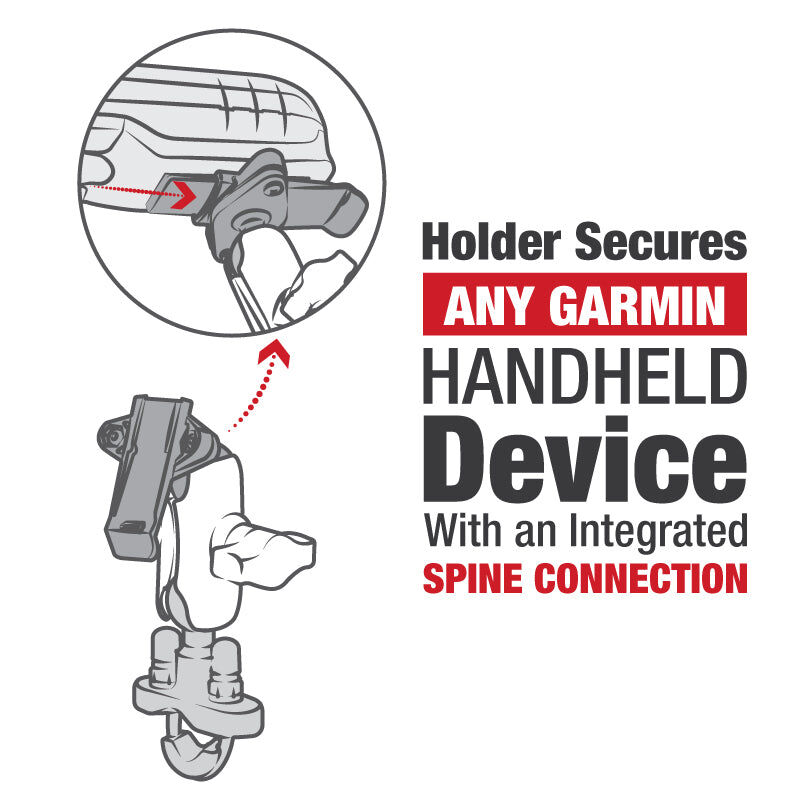

  • Holder secures any Garmin handheld device with an integrated spine connection
  • U-bolt base includes bar spacer and accommodates rails from .5" to 1.25" in diameter
  • Backed by a lifetime warranty

Specs

Type: Complete kit: holder, arm and base. Nothing else needed.

Mounts on: Motorcycle, bike or ATV handlebars and rails 12 to 32 mm across.

Fits: GPS units: 45 listed models, including Astro 430, Astro 900, Dakota 10, Dakota 20, GPSMAP 62 Series. Check yours in the Mount Builder.

Hardware Included

Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

Clamp Range

.5" - 1.25" diameter

Socket To Socket Length

1.75"

Ball Size

B Size (1")

Weight Capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials

Marine-grade aluminum
High strength composite

Packaging Type

Poly Bag

Weight

0.68 lb
