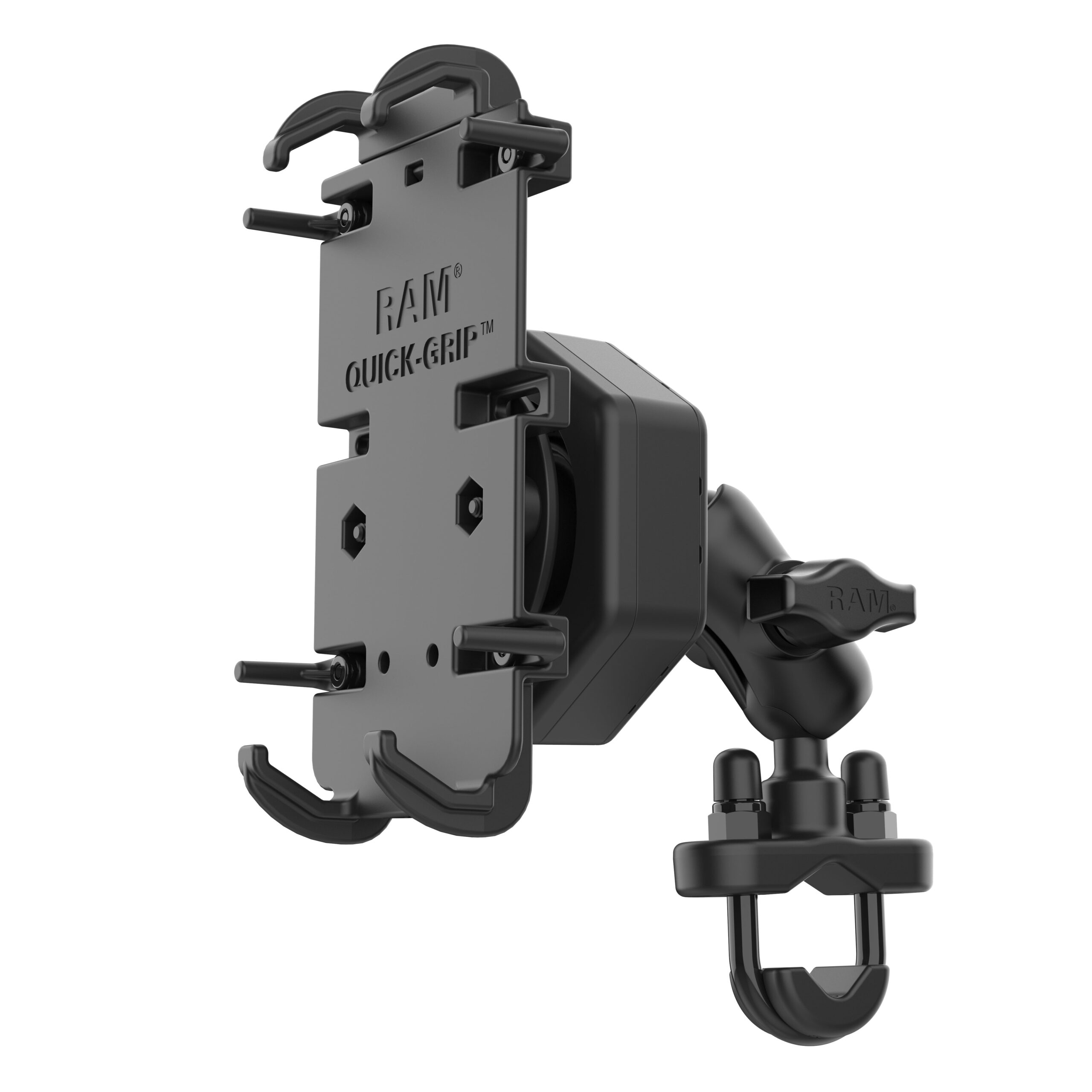

RAM® Quick-Grip™ XL Phone Mount with Vibe-Safe™ & U-Bolt Base – Short

RAM® Quick-Grip™ XL Phone Mount with Vibe-Safe™ & U-Bolt Base – Short

OVERVIEW

The RAM® Quick-Grip™ XL Phone Mount with RAM® Vibe-Safe™ & U-Bolt Base - Short (RAM-B-149Z-A-PD4-462) is a combination of the RAM® Quick-Grip™ XL Phone Mount and the RAM® Vibe-Safe™—our vibration damping accessory is designed to protect electronic devices from a wide range of vibration frequencies. The RAM® Vibe-Safe™ is based on an NPT connection point and boasts the versatility to rotate between portrait and landscape while keeping your device secure in rugged environments. This product includes one (1) short B size arm and one (1) RAM® U-Bolt Base that accommodates rails from .5" - 1.25" in diameter. The holder is compatible with handheld devices that will fit the dimensions listed below, it is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

HARDWARE INCLUDED

Assembly Hardware(1) 1/4"-20 U-Bolt for .5" - 1" Rails(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails(2) 1/4"-20 Nylock Nuts(2) Rubber Caps(1) U-Bolt Spacer

HOLDER DIMENSIONS

Height Range: 5.75" - 8.25"Width Range: 2.625" - 3.625"Max Depth: .72"

CLAMP RANGE

.5" - 1.25" diameter

SOCKET TO SOCKET LENGTH

1.75"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum High strength composite

PACKAGING TYPE

Retail Bag

WEIGHT

1.13 lb

ADDITIONAL INFORMATION

A reduction in vibration does not guarantee full protection of device. External immeasurable factors may cause damage to phones, cameras, and other devices while mounted in the RAM® Vibe-Safe™. National Products, Inc does not assume responsibility or liability for any such personal injury, death or property damage. RAM® mounts lifetime warranty is limited to RAM® mounts and components. The warranty does not include any device mounted or attached to a RAM® mount, such as a phone, GPS, camera, computer or other device.
