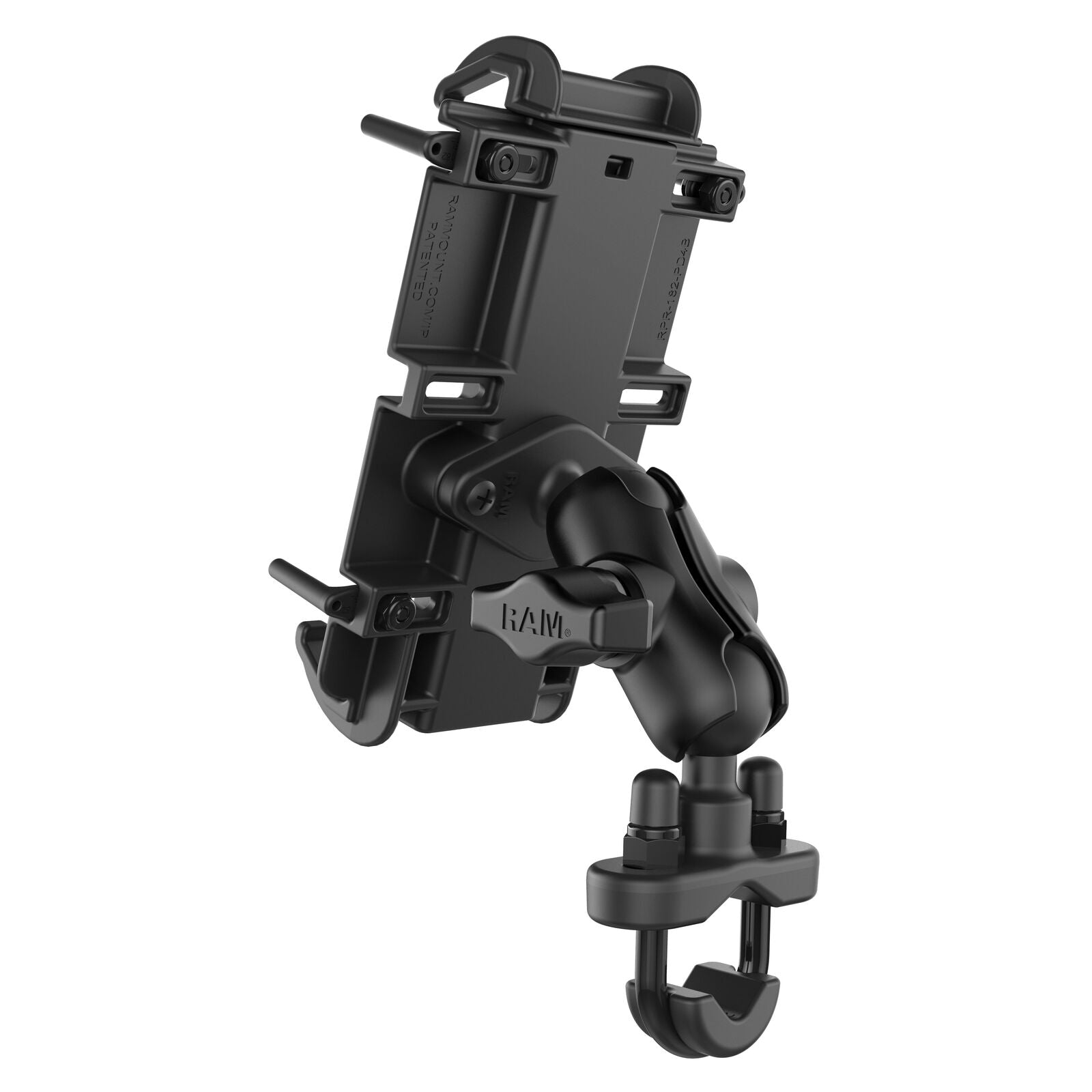

RAM Quick-Grip XL Phone Mount with Handlebar U-Bolt Base – Short

RAM Quick-Grip XL Phone Mount with Handlebar U-Bolt Base – Short

OVERVIEW

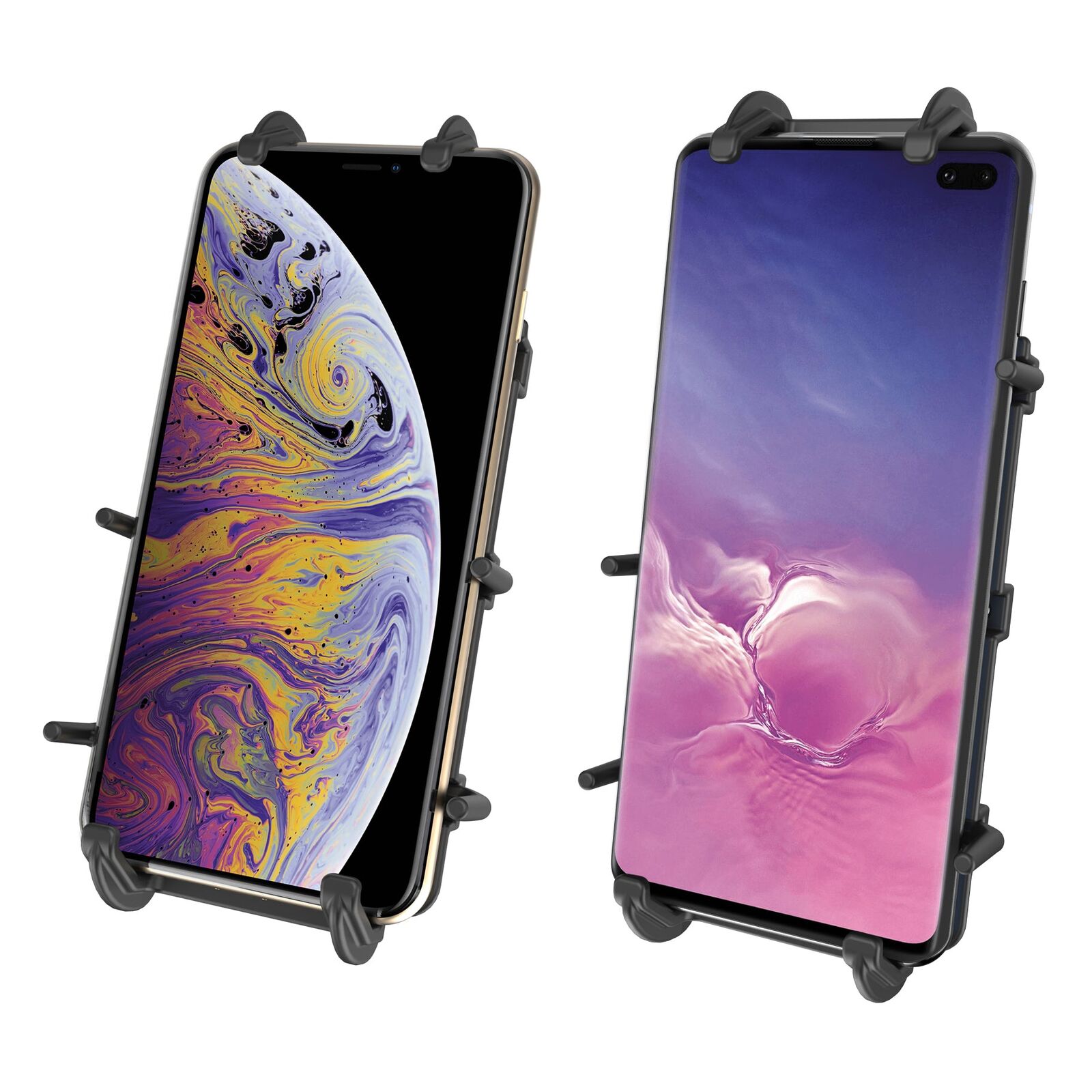

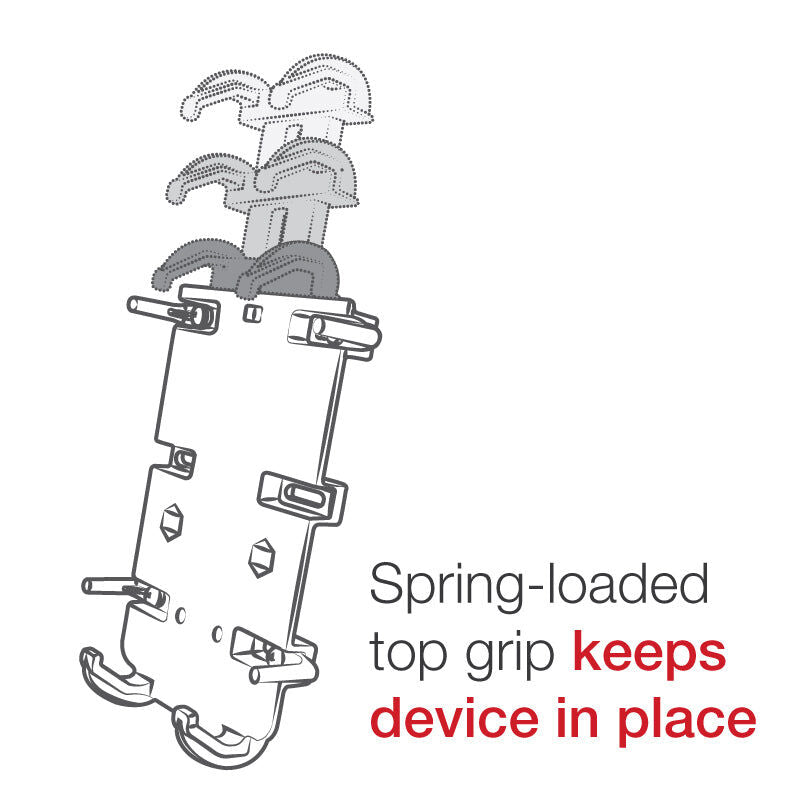

This version of the spring-loaded RAM® Quick-Grip™ holder provides a secure fit for a variety of large phones and other devices. Included is a short RAM® double socket arm and zinc-coated handlebar U-Bolt base that accommodates rails from .5” to 1.25” in diameter.

HARDWARE INCLUDED

Assembly Hardware(1) 1/4"-20 U-Bolt for .5" - 1" Rails(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails(2) 1/4"-20 Nylock Nuts(2) Rubber Caps(1) U-Bolt Spacer

HOLDER DIMENSIONS

Height Range: 5.75" - 7.25"Width Range: 2.625" - 3.625"Max Depth: .72"

CLAMP RANGE

.5" - 1.25" diameter

SOCKET TO SOCKET LENGTH

1.75"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

0.84 lb

ADDITIONAL INFORMATION

Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
