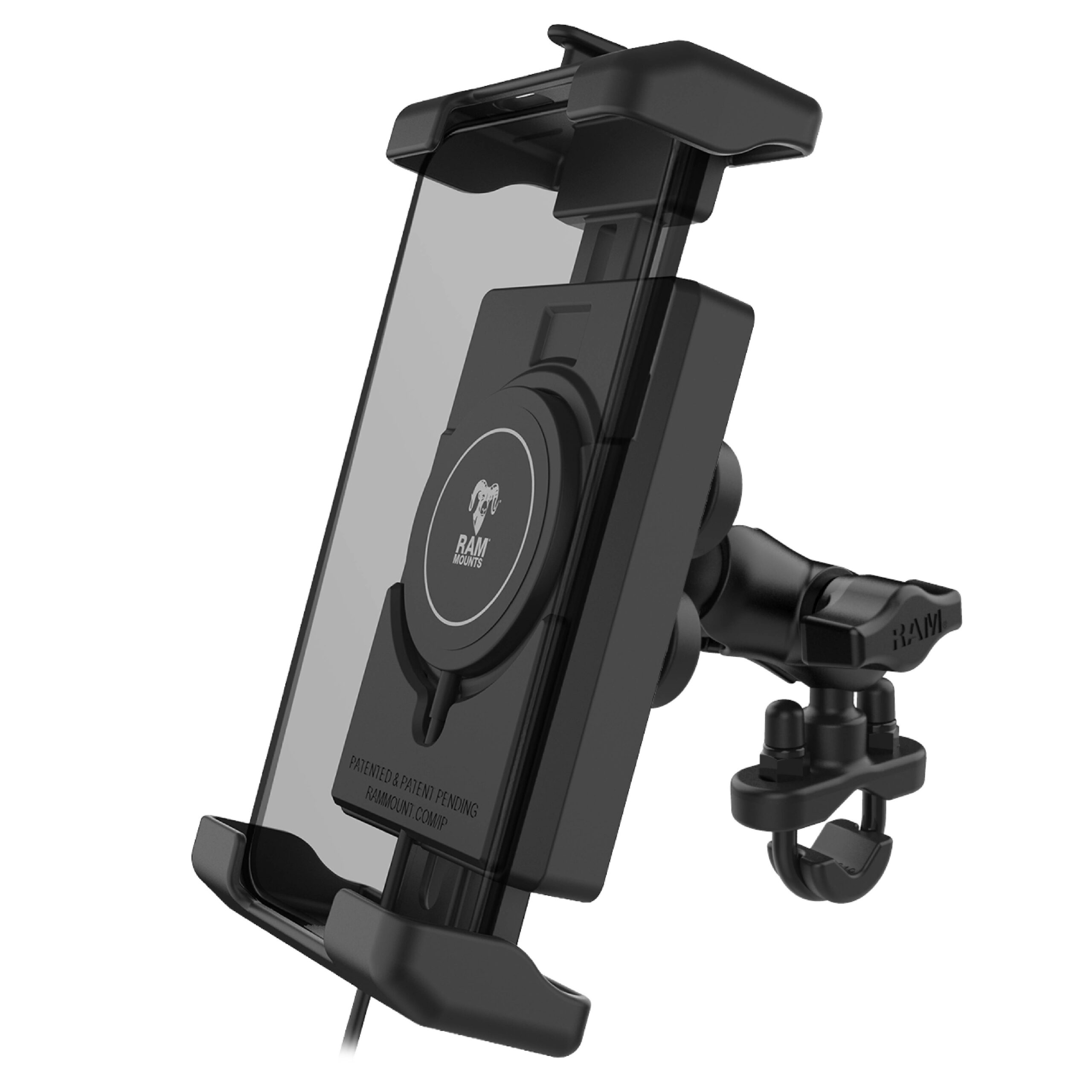

RAM® Quick-Grip™ Pro XL Vibration Damping Phone Mount & Qi2 15W Charger

RAM® Quick-Grip™ Pro XL Vibration Damping Phone Mount & Qi2 15W Charger

OVERVIEW

The RAM® Quick-Grip™ Pro XL Vibration Damping Phone Mount & Qi2 15W Charger (RAM-B-149Z-A-PD7V-W2MU) is an ideal handlebar solution featuring the next evolution of the RAM® Quick-Grip™ series, re-designed to be the most rugged universal phone holder that fits a wide range of phones and handheld devices. This phone holder comes with the RAM® Qi2 wireless charger and features an integrated cavity to secure it in place. This phone holder comes with an anti-slip cover ensuring a flush fit when the wireless charging puck is not installed. The RAM® Quick-Grip™ Pro XL features a spring-loaded design that allows easy one-handed insertion and removal of your device. Large and small shims are included to provide a snug, secure fit for large and small phones without a case. This kit includes a zinc-coated handlebar U-Bolt base that accommodates rails from .5” to 1.25” in diameter. RAM® recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.

HARDWARE INCLUDED

Assembly Hardware (1) RAM® Qi2 Wireless Charging Puck (1) 1/4"-20 U-Bolt for .5" - 1" Rails (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails (2) 1/4"-20 Nylock Nuts (2) Rubber Caps (1) U-Bolt Spacer

HOLDER DIMENSIONS

Height Range: 5.375" - 7"Width Range: 2.75" - 3.5"Max Depth: .75"

CLAMP RANGE

.5" - 1.25" diameter

SOCKET TO SOCKET LENGTH

1.75"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum High strength composite

PACKAGING TYPE

Poly Bag

POWER SPECIFICATIONS

Operating Frequency: 360KHZStand-by Consumption ~ 0.008A / 8mA @5VDC80% Wireless Power Transfer Efficiency or GreaterSupports USB 2.0 BC1.2 Power Supply (5V)Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0

INPUT VOLTAGE

USB 5V @ 3AQC2.0 9V @ 2.22AUSB PD 2.0 5-15V @ 2A

POWER OUTPUT

BPP - 5WEPP - 7.5WMPP - 15W

OUTPUT CONNECTOR

USB Type-C Male with USB-A Adapter

OUTPUT CABLE LENGTH

1 Meter

OPERATING TEMPERATURE

0°C to +40°C

STORAGE TEMPERATURE

-20°C to +80°C

REGULATORY

Over Current ProtectionShort circuit ProtectionOver Temperature ProtectionRoHS ComplianceWEEE Compliance

CERTIFICATIONS

IP67SAE J1455FCC CertificationCE CertificationE-Mark CertificationRCM Certification

WEIGHT

1.31 lb

ADDITIONAL INFORMATION

The included wireless charger will support up to 8mm charging distance between puck and device. A reduction in vibration does not guarantee full protection of device. External immeasurable factors may cause damage to phones, cameras, and other devices while mounted. National Products, Inc does not assume responsibility or liability for any such personal injury, death or property damage. RAM® mounts lifetime warranty is limited to RAM® mounts and components. The warranty does not include any device mounted or attached to a RAM® mount, such as a phone, GPS, camera, computer or other device.
