RAM® Handlebar U-Bolt Mount for Garmin GPSMAP 60 Series + More

RAM® Handlebar U-Bolt Mount for Garmin GPSMAP 60 Series + More

OVERVIEW

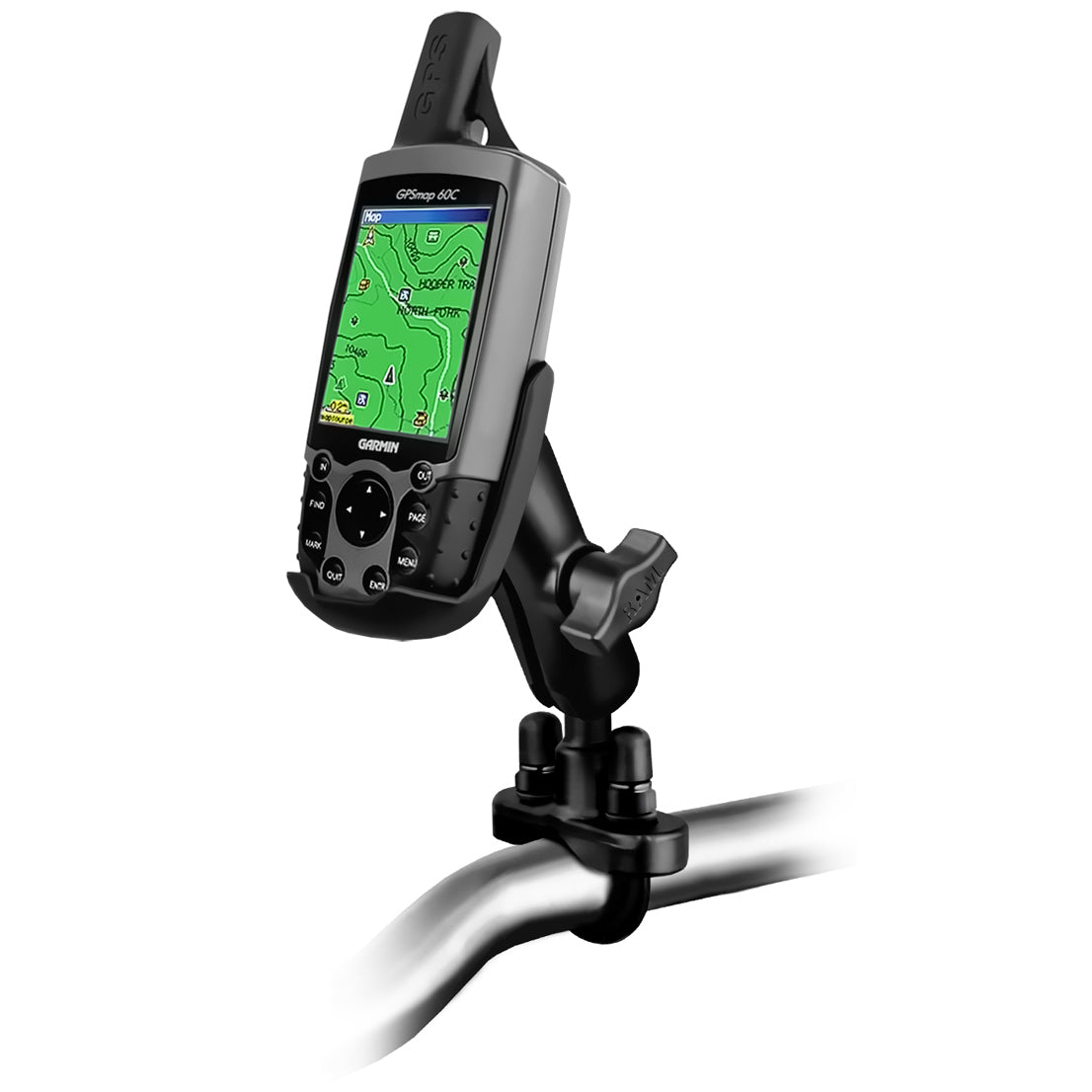

The RAM-B-149Z-GA12U consists of a zinc coated u-bolt base, double socket arm, diamond adapter base and custom high strength composite cradle for the Garmin GPSMAP. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the Garmin GPSMAP mount to your optimum viewing position. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter.

HARDWARE INCLUDED

Assembly Hardware(1) 1/4"-20 U-Bolt for .5" - 1" Rails(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails(2) 1/4"-20 Nylock Nuts(2) Rubber Caps(1) U-Bolt Spacer

CLAMP RANGE

.5" - 1.25" diameter

SOCKET TO SOCKET LENGTH

3"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

0.63 lb

ADDITIONAL INFORMATION

This mount requires the standard belt clip button which is included with the purchase of the GPS unit from Garmin.
