RAM® Handlebar U-Bolt Double Ball Mount for Garmin Rino 520 + More

RAM® Handlebar U-Bolt Double Ball Mount for Garmin Rino 520 + More

OVERVIEW

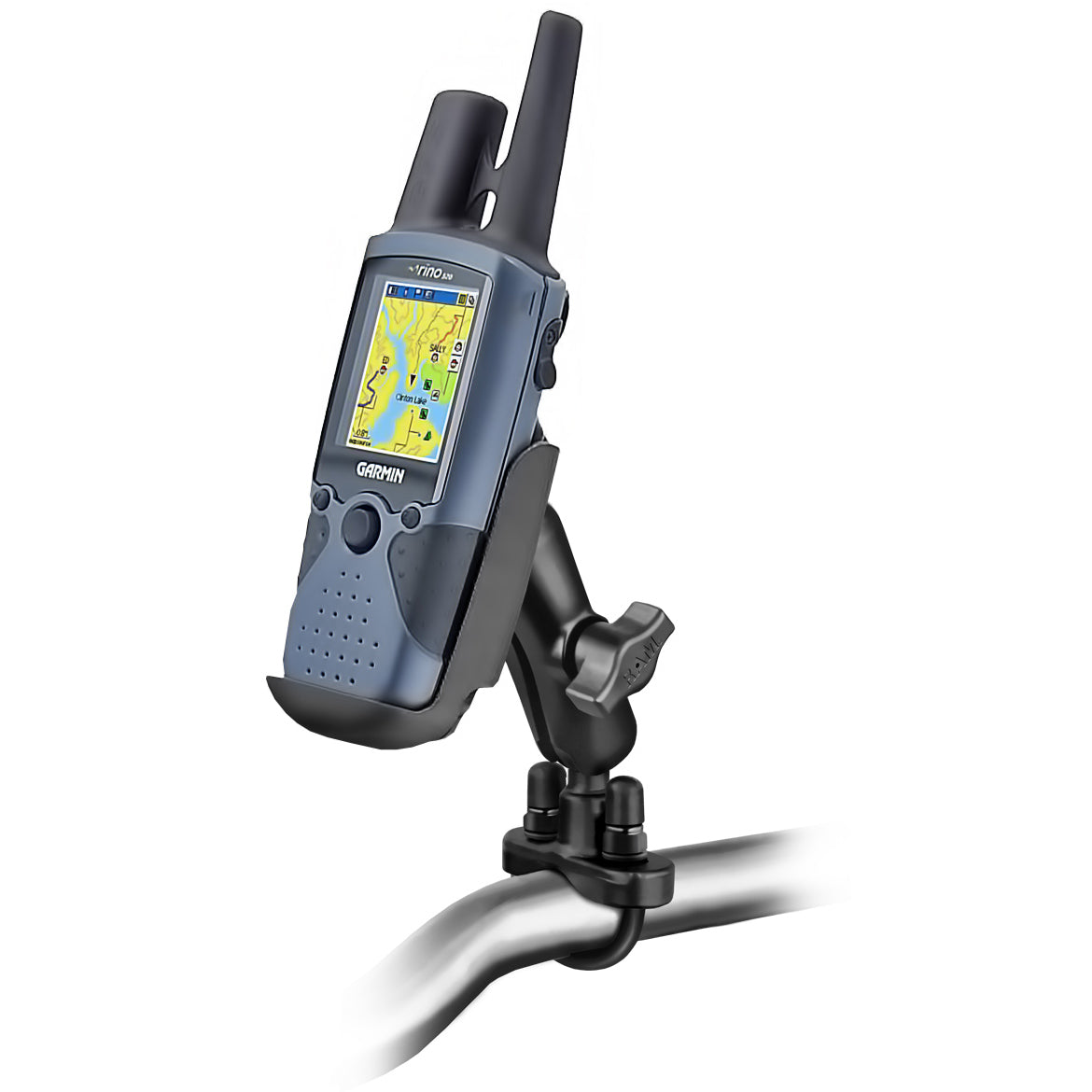

The RAM-B-149Z-GA20U consists of a zinc coated u-bolt base, double socket arm, diamond adapter base and custom high strength composite cradle for the Garmin Rino. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the Garmin Rino motorcycle mount to your optimum viewing position. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter.

HARDWARE INCLUDED

Assembly Hardware(1) 1/4"-20 U-Bolt for .5" - 1" Rails(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails(2) 1/4"-20 Nylock Nuts(2) Rubber Caps(1) U-Bolt Spacer

CLAMP RANGE

.5" - 1.25" diameter

SOCKET TO SOCKET LENGTH

3"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

0.68 lb
