RAM® Quick-Grip™ Pro Phone Handlebar Mount with Qi2 15W Wireless Charger

RAM® Quick-Grip™ Pro Phone Handlebar Mount with Qi2 15W Wireless Charger

OVERVIEW

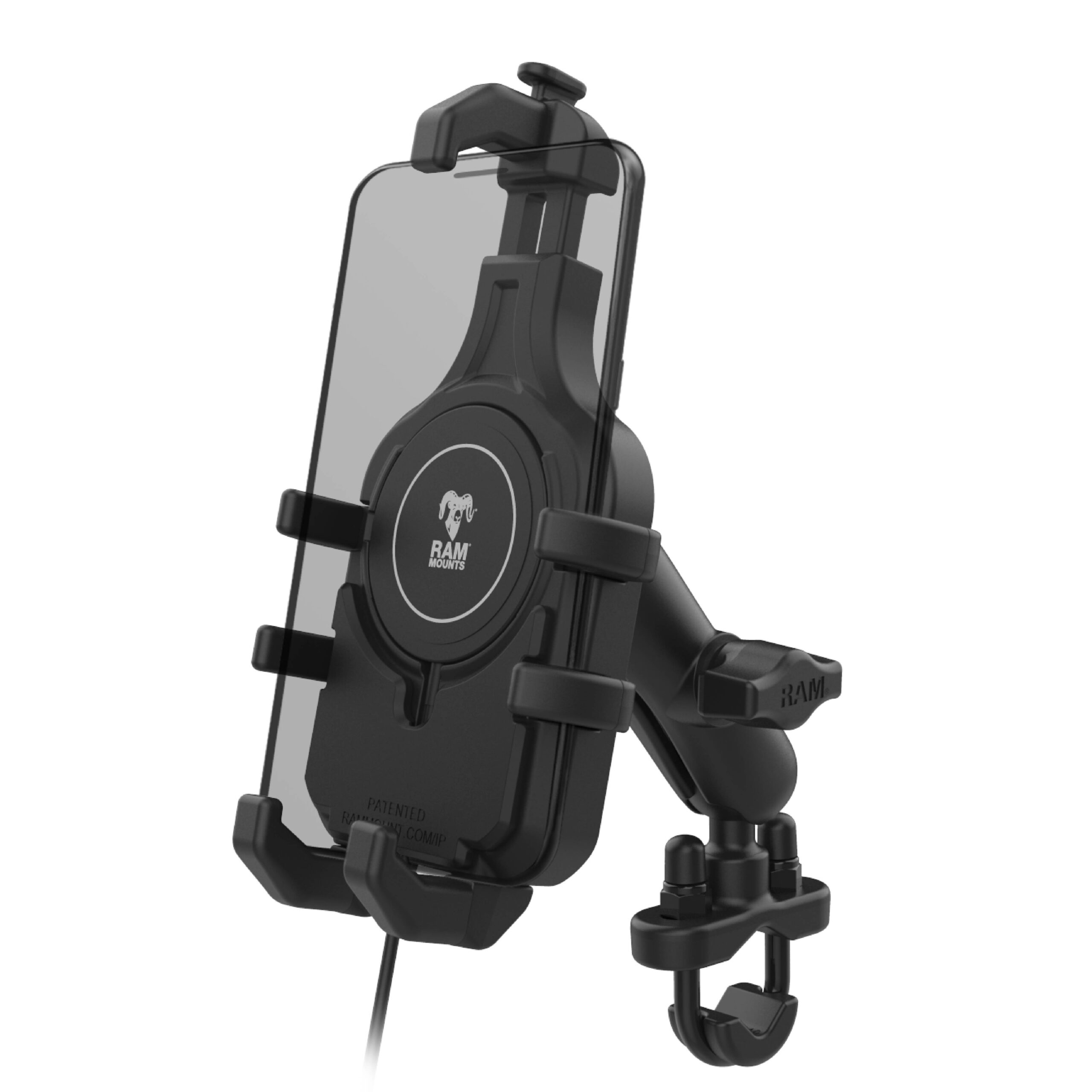

The RAM® Quick-Grip™ Pro Phone Handlebar Mount with Qi2 15W Wireless Charger (RAM-B-149Z-PD5-W2MU) is the next evolution of the RAM® Quick-Grip™ series, re-designed with a new, sleek look and integrated rubber side arms to provide a secure, no-slip hold on your phone. This phone holder comes with the RAM® Qi2 wireless charger and features an integrated cavity to secure it in place. This phone holder comes with an anti-slip cover ensuring a flush fit when the wireless charging puck is not installed. The RAM® Quick-Grip™ Pro features a spring-loaded design that allows easy one-handed insertion and removal of your phone. The adjustable side arms ensure that your phone will remain secured in the holder without blocking any ports or buttons. This kit includes zinc-coated handlebar U-Bolt base that accommodates rails from .5” to 1.25” in diameter. RAM® recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.

HARDWARE INCLUDED

Assembly Hardware (1) RAM® Qi2 Wireless Charging Puck (1) 1/4"-20 U-Bolt for .5" - 1" Rails (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails (2) 1/4"-20 Nylock Nuts (2) Rubber Caps (1) U-Bolt Spacer

HOLDER DIMENSIONS

Height Range: 5.5" - 7.75"Width Range: 2.625" - 3.75"Max Depth: .67"

CLAMP RANGE

.5" - 1.25" diameter

SOCKET TO SOCKET LENGTH

3"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum High strength composite

PACKAGING TYPE

Poly Bag

POWER SPECIFICATIONS

Operating Frequency: 360KHZStand-by Consumption ~ 0.008A / 8mA @5VDC80% Wireless Power Transfer Efficiency or GreaterSupports USB 2.0 BC1.2 Power Supply (5V)Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0

INPUT VOLTAGE

USB 5V @ 3AQC2.0 9V @ 2.22AUSB PD 2.0 5-15V @ 2A

POWER OUTPUT

BPP - 5WEPP - 7.5WMPP - 15W

OUTPUT CONNECTOR

USB Type-C Male with USB-A Adapter

OUTPUT CABLE LENGTH

1 Meter

OPERATING TEMPERATURE

0°C to +40°C

STORAGE TEMPERATURE

-20°C to +80°C

REGULATORY

Over Current ProtectionShort circuit ProtectionOver Temperature ProtectionRoHS ComplianceWEEE Compliance

CERTIFICATIONS

IP67SAE J1455FCC CertificationCE CertificationE-Mark CertificationRCM Certification

WEIGHT

1.08 lb

ADDITIONAL INFORMATION

The included wireless charger will support up to 8mm charging distance between puck and device. Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more. Top hook may block front facing camera and facial recognition on select phones.
