RAM® Handlebar U-Bolt Mount for TomTom ONE XL & XLS

RAM® Handlebar U-Bolt Mount for TomTom ONE XL & XLS

OVERVIEW

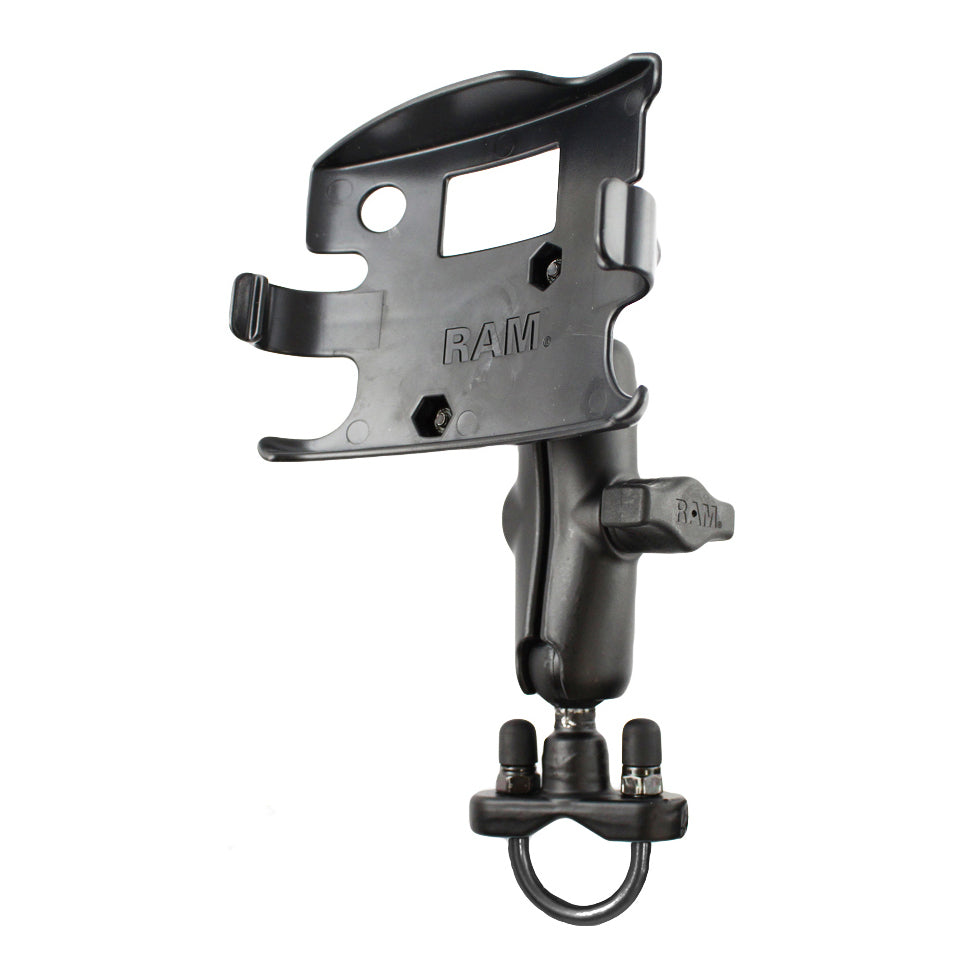

The RAM-B-149Z-TO5 consists of a double socket arm, zinc coated u-bolt base, diamond adapter base and custom high strength cradle for the TomTom ONE. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the motorcycle TomTom ONE mount to your optimum viewing position. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter.

HARDWARE INCLUDED

Assembly Hardware(1) 1/4"-20 U-Bolt for .5" - 1" Rails(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails(2) 1/4"-20 Nylock Nuts(2) Rubber Caps(1) U-Bolt Spacer

CLAMP RANGE

.5" - 1.25" diameter

SOCKET TO SOCKET LENGTH

3"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

0.68 lb
