RAM® Twist-Lock™ Suction Cup Mount for Garmin echo™ 100, 150 & 300c
$110.00
Overview

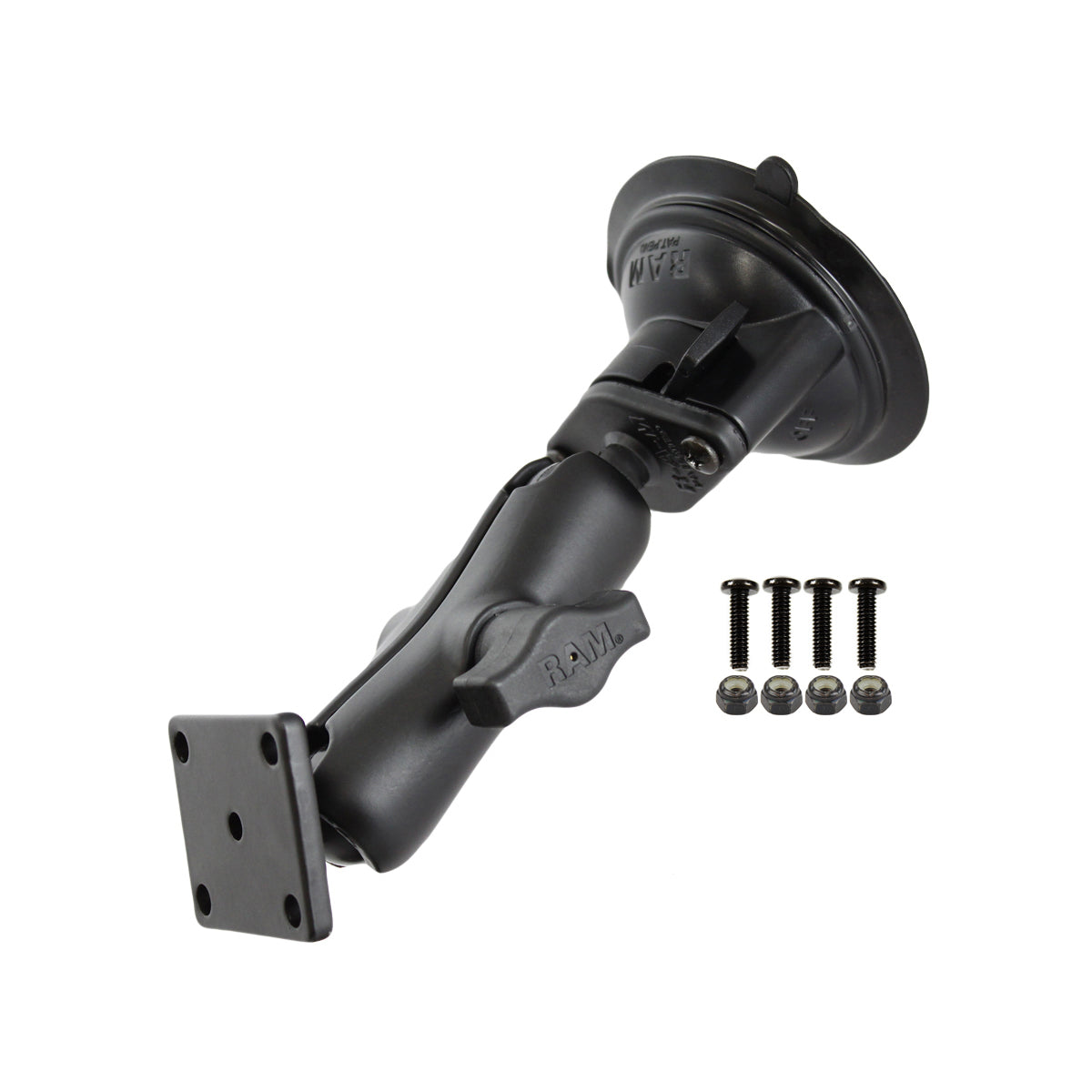

The RAM-B-166-G4 consists of a 3.3" suction cup twist lock base, double socket arm, 2" x 1.7" plate and custom hardware for the Garmin GPSMAP. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. Simply attach the suction cup base to the windshield of your vehicle for an easy and safe way to view your handheld device in your vehicle. The included hardware allows your device to attach directly to the mount.
Hardware Included
Assembly Hardware
(3) #8-32 x 5/8" Machine Screws
(3) #8-32 Nylock Nuts
Product Dimensions
Overall Height: 6.69"
Suction Size
3.3" Diameter
Socket To Socket Length
3"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Ball Size
B Size (1")
Weight Capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
Materials
Marine-grade aluminum
High strength composite
Packaging Type
Retail Bag
Weight
0.72 lb
Additional Information
*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
