RAM® Tab-Tite™ with RAM® Twist-Lock™ Suction Cup for Large Tablets

RAM Mounts

$191.00

RAM Tab-Tite Universal Spring Loaded Holder for Large Tablets

$88.00

Out of stock

RAM Round Plate with Ball - B Size

$21.00

In stock

RAM Twist-Lock Suction Cup Base with Ball

$44.00

In stock

RAM Double Socket Arm - B Size Medium

$38.00

In stock

Out of stock Available on backorder

Not sure this fits your setup?Tell us your device and where you are mounting it. The RAM® Mount Builder shows every mount that fits.Find my mount
SKU RAM-B-166-TAB-LGU Categories , ,
Overview

Overview

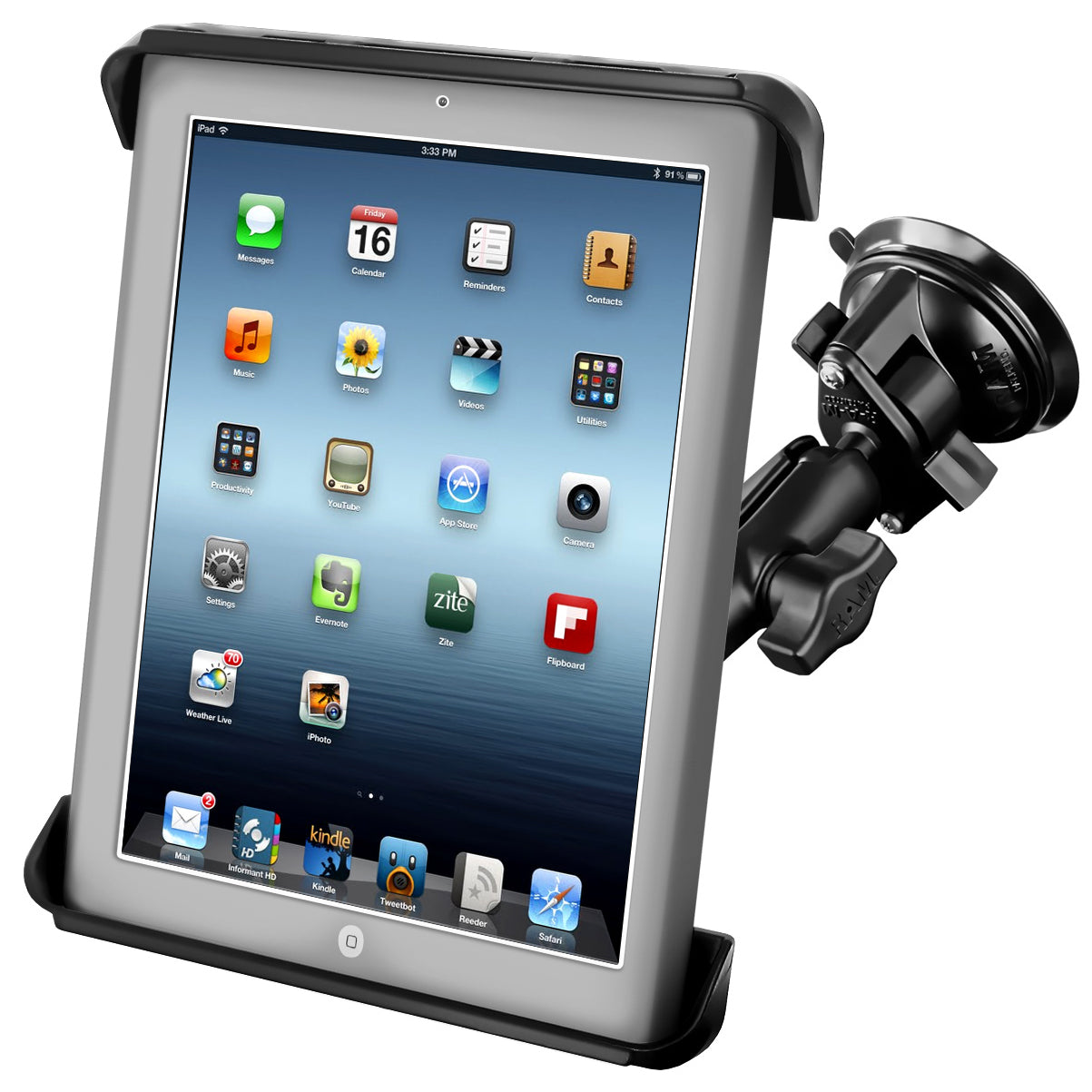

The RAM-B-166-TAB-LGU consists of a 3.3" suction cup twist lock base, double socket arm, diamond adapter base, Tab-Tite™ cradle and 2 sets of cup ends to accommodate for tablets of various sizes. The suction cup, twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded, quick release Tab-Tite™ cradle makes it easy to load and unload your tablet, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended.

Specs

Hardware Included

Assembly Hardware

Holder Dimensions

Height Range: 8.5" - 11.75"
Width Range: 7.75" - 8.25"
Depth Range: .56" - 1.1"

Suction Size

3.3" Diameter

Socket To Socket Length

3"

Ball Size

B Size (1")

Weight Capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials

Marine-grade aluminum
High strength composite

Packaging Type

Poly Bag

Resources
