RAM® X-Grip® Phone Mount with RAM® Twist-Lock™ Suction Cup

RAM® X-Grip® Phone Mount with RAM® Twist-Lock™ Suction Cup

OVERVIEW

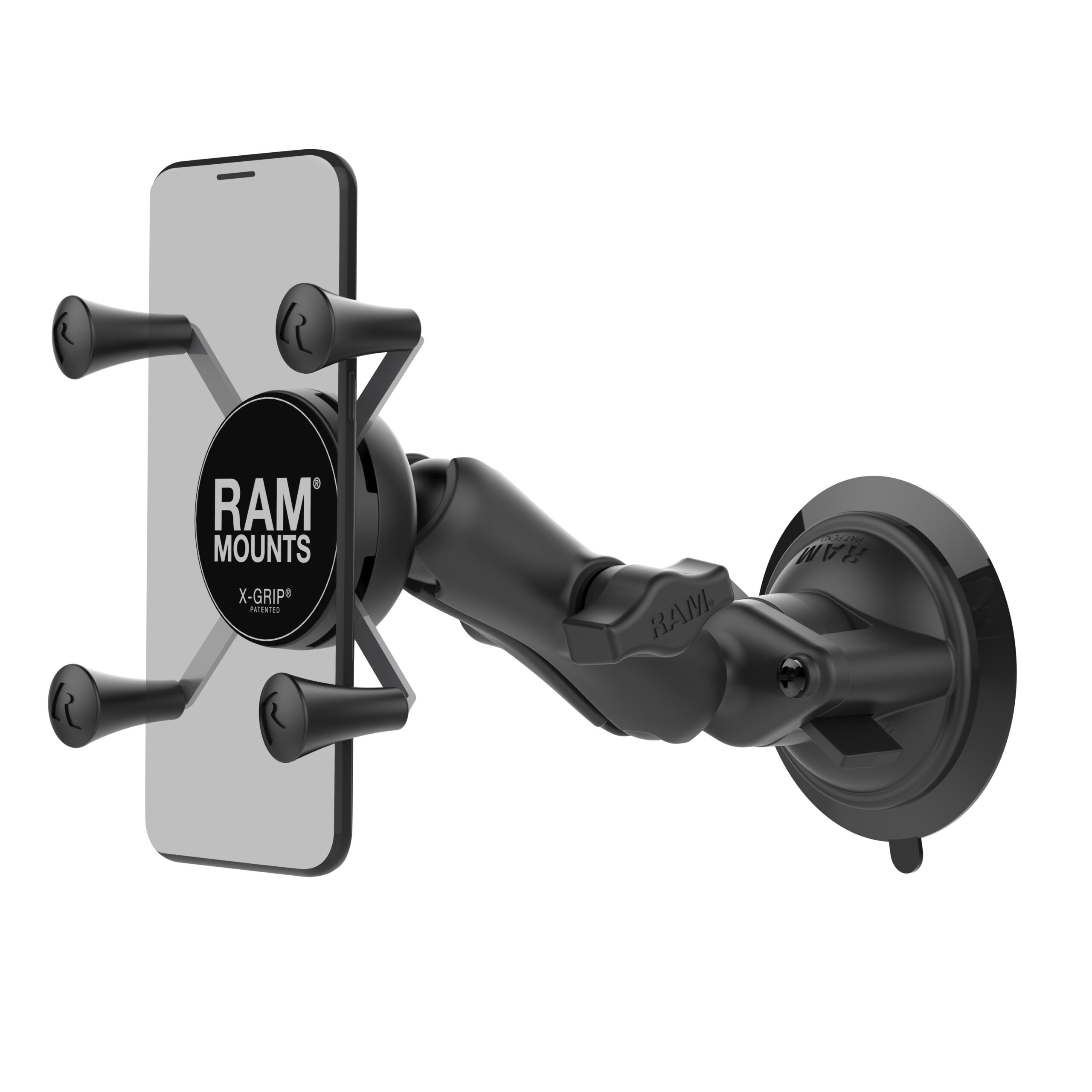

The RAM® X-Grip® Small Phone Mount with Twist-Lock™ Suction Cup (RAM-B-166-UN7U) comes with everything needed to secure a phone to a windshield. This bundle includes the RAM® Twist-Lock™ base, medium-length double socket arm, and universal spring-loaded X-Grip®. The RAM® Twist-Lock™  suction cup is 3.3" in diameter and is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM® adhesive disks. The spring-loaded RAM® X-Grip® phone holder allows for a perfect custom fit across phone models and small electronic devices 1.87" to 3.25" in width through expansion and contraction of the arms. The holder features four grip knobs that attach to the arms for a secure hold; also included is a rubber device tether recommended for outdoor & high vibration applications. To ensure fit within the RAM® X-Grip®, it is important to verify the dimensions of the handheld device while within its case/sleeve/skin. The patented rubber ball and socket system with adjustment points at both ends of the socket arm allows adjustment to the optimum viewing position.

HARDWARE INCLUDED

Assembly Hardware(1) Optional Tether(1) Glue Tube for Rubber Caps

HOLDER DIMENSIONS

Width Range: 1.875" - 3.25"Depth Range: .875" max

SUCTION SIZE

3.3" Diameter

SOCKET TO SOCKET LENGTH

3"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum High strength composite Stainless steel

PACKAGING TYPE

Poly Bag

WEIGHT

0.77 lb

ADDITIONAL INFORMATION

Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more. *The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
