RAM Twist-Lock Suction Cup Double Ball Mount – Medium

RAM Twist-Lock Suction Cup Double Ball Mount – Medium

OVERVIEW

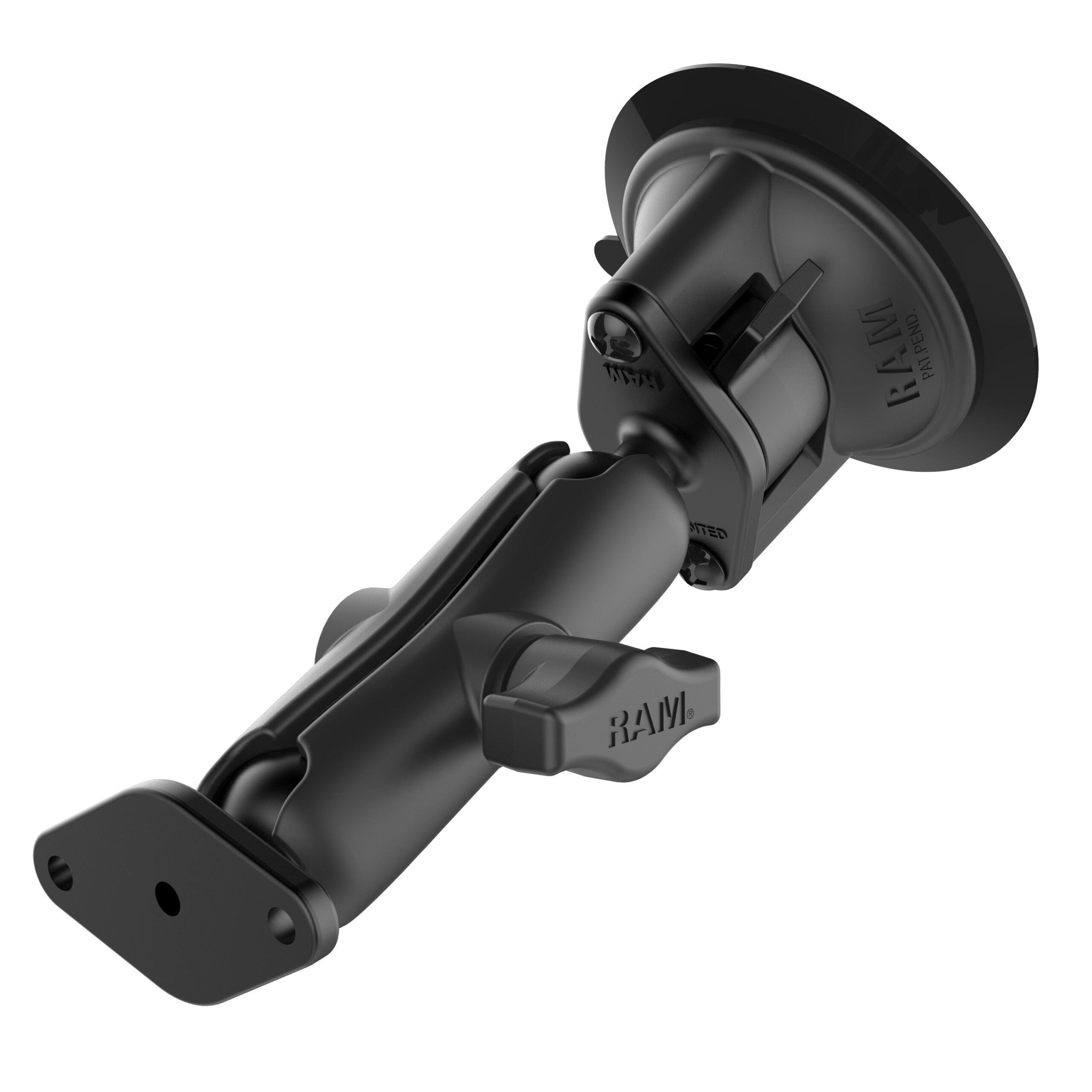

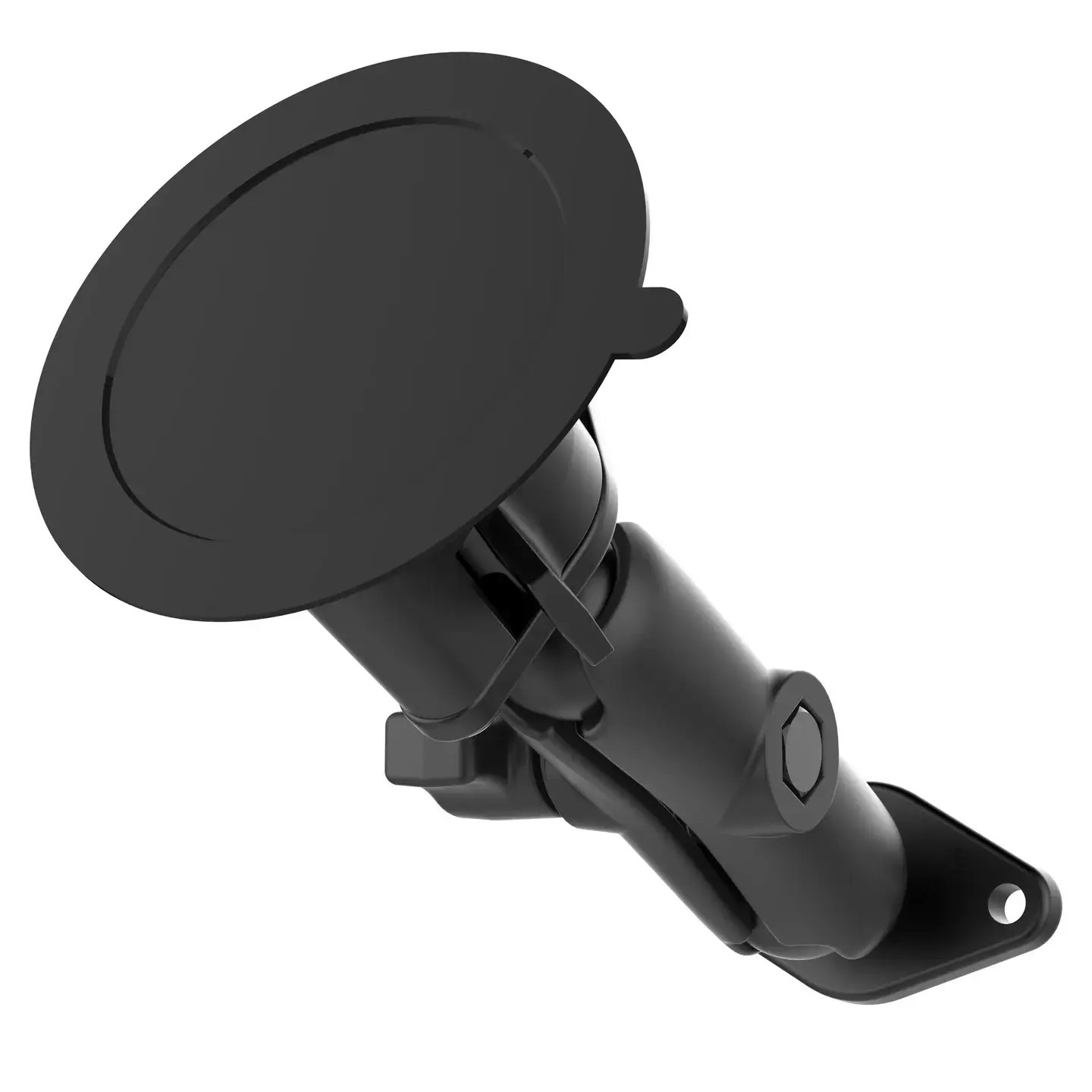

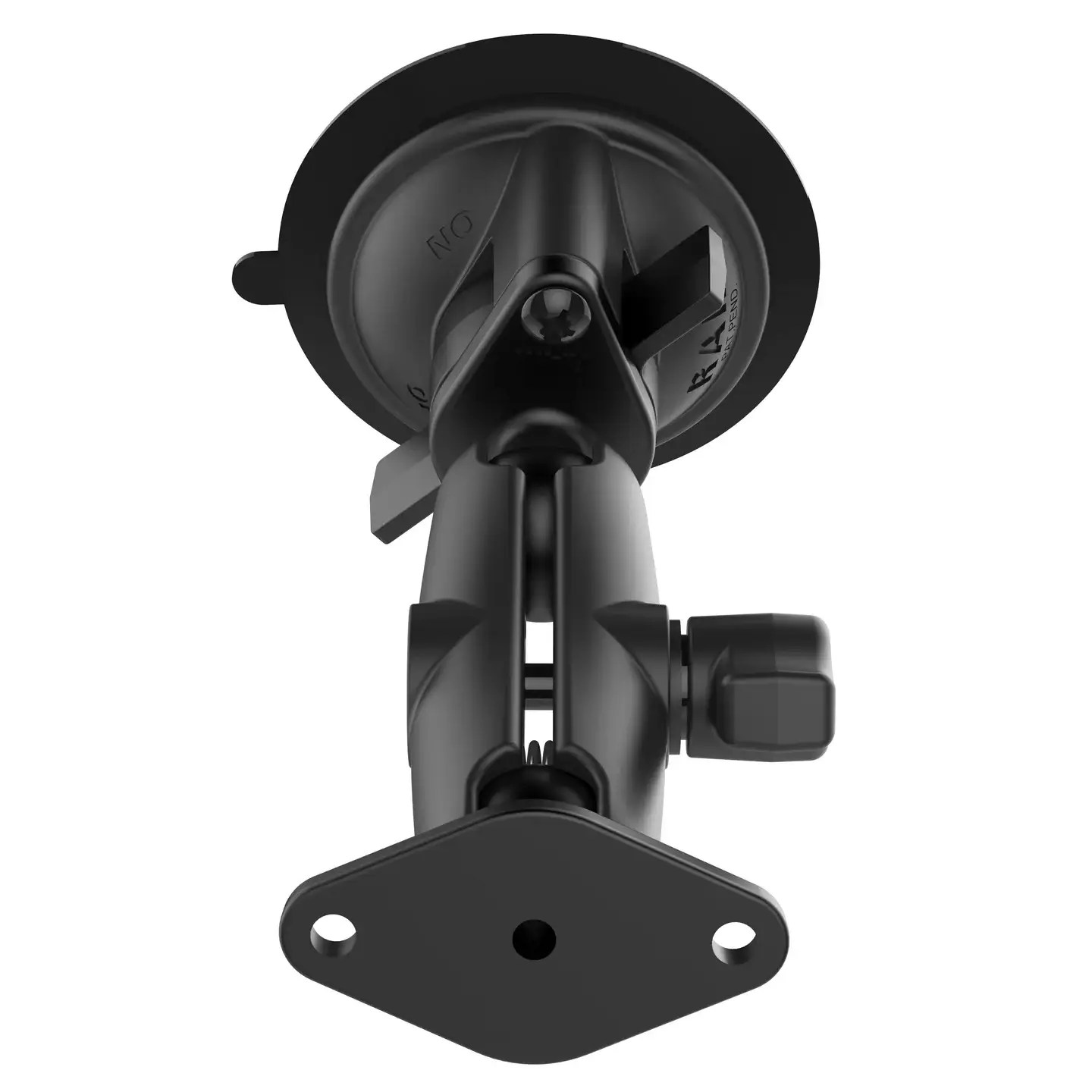

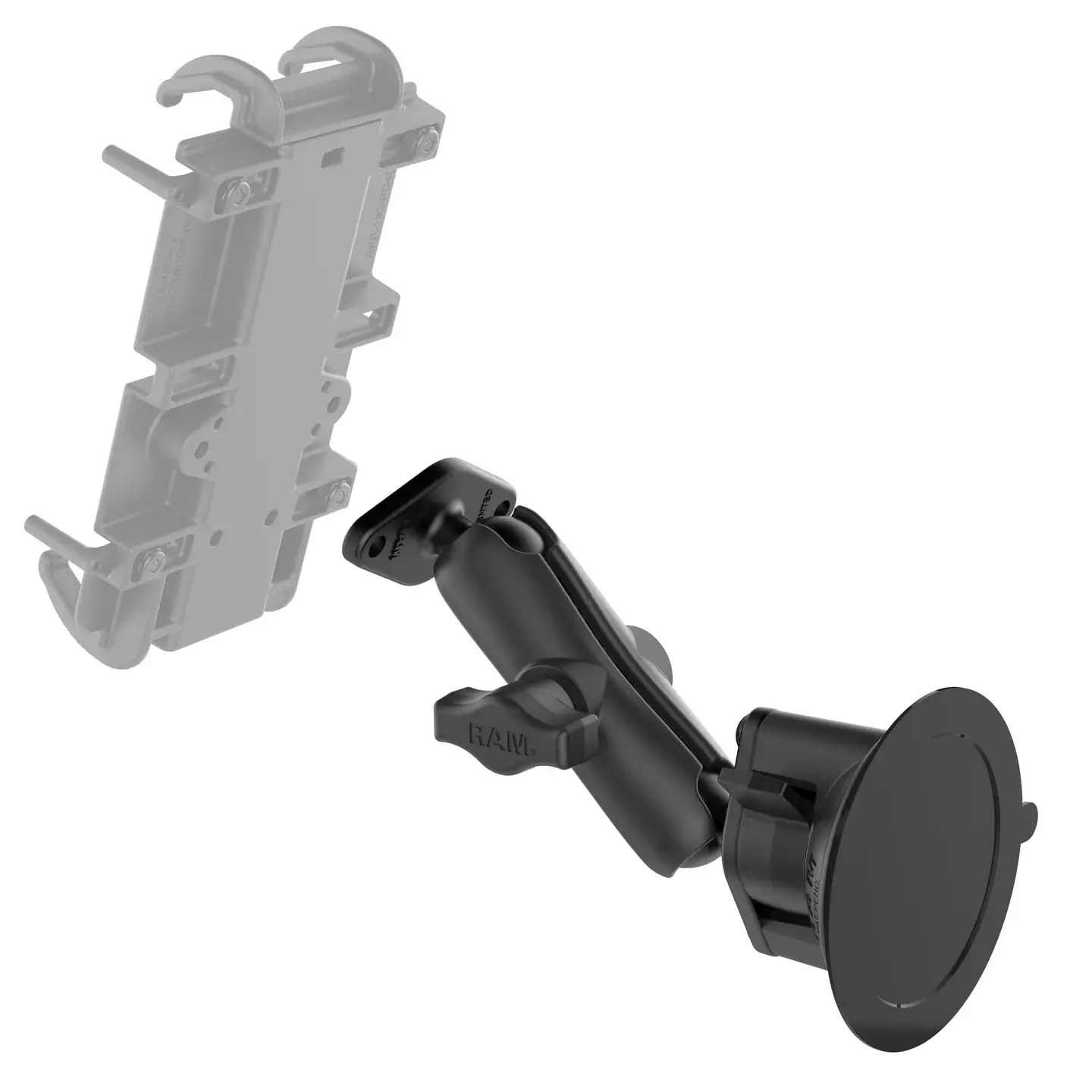

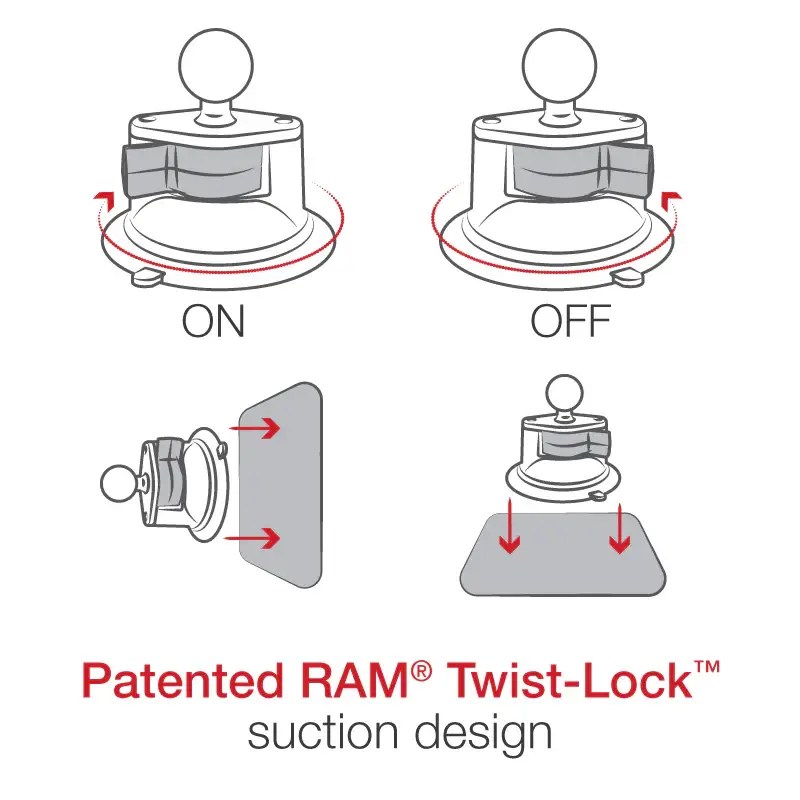

The RAM-B-166U consists of a 3.3" diameter suction cup twist lock base, STANDARD length double socket arm and diamond base adapter. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM® adhesive disks. The mount is designed with a RAM® 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the diamond base adapter will connect to most RAM® cradles.

HARDWARE INCLUDED

Assembly Hardware

PRODUCT DIMENSIONS

Overall Height: 6.69"

SUCTION SIZE

3.3" Diameter

SOCKET TO SOCKET LENGTH

3"

HOLE PATTERN

2-Hole AMPS: 1.912"

PLATE SIZE

2.43" x 1.31"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

0.64 lb

ADDITIONAL INFORMATION

*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
