RAM® Motorcycle Brake/Clutch Reservoir Base with Action Camera Mount

RAM® Motorcycle Brake/Clutch Reservoir Base with Action Camera Mount

OVERVIEW

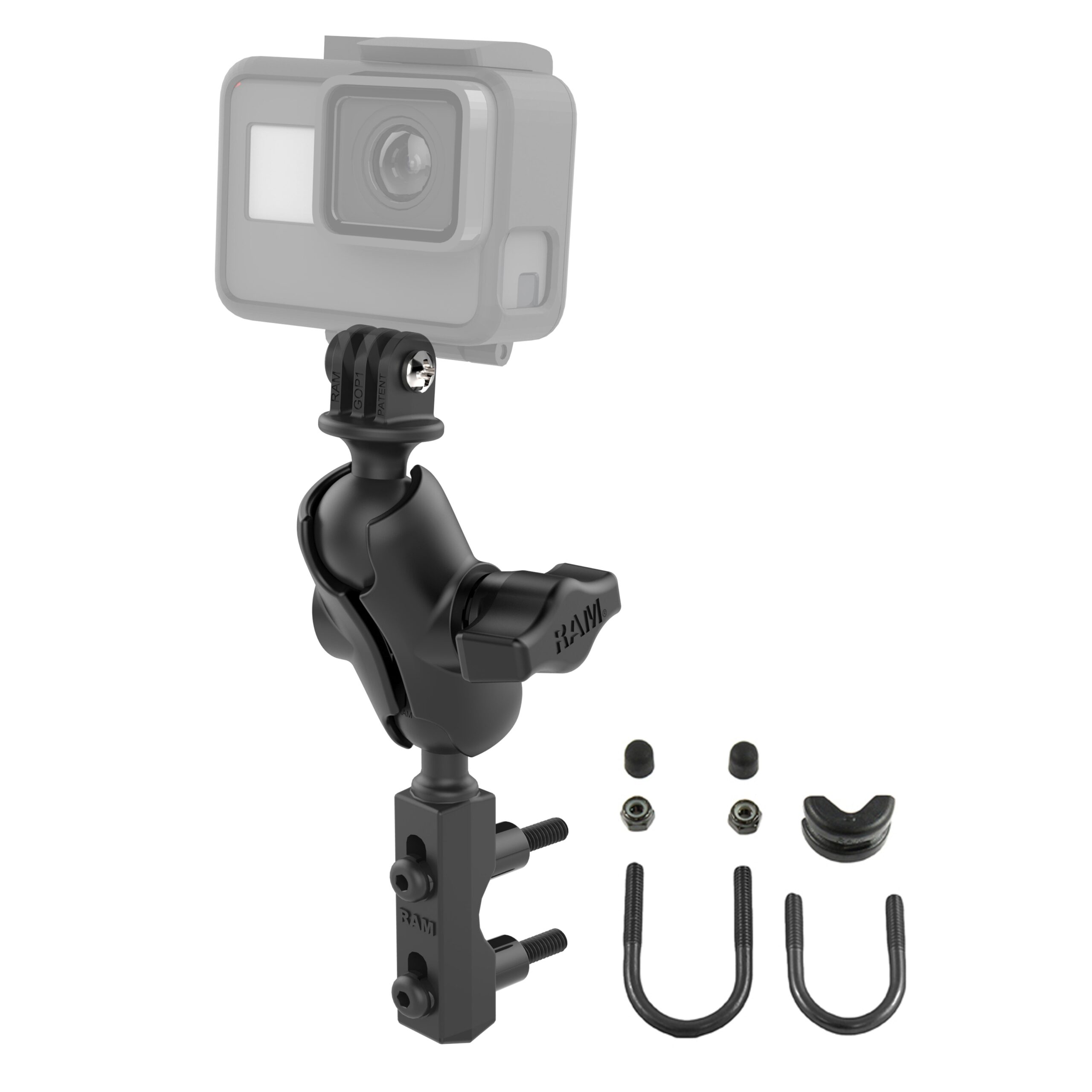

The RAM-B-174-A-GOP1U consists of hardware for mounting to either brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, short length double socket arm and action camera mount. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts.

HARDWARE INCLUDED

Assembly Hardware(2) M6 x 55mm Hex Bolts(2) #1/4-20 x 2" Hex Bolts(2) 1/4"-20 x 2.5" Hex Bolts(2) 1/2" Spacers(2) 1/4" Split Lock Washers(1) 1/4"-20 U-Bolt for .5" - 1" Rails(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails(2) 1/4"-20 Nylock Nuts(2) Rubber Caps(1) U-Bolt Spacer

CLAMP RANGE

.5" - 1.25" diameter

SOCKET TO SOCKET LENGTH

1.75"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

0.71 lb
