RAM® Brake/Clutch Reservoir Mount for Garmin eTrex Legend Color + More

RAM® Brake/Clutch Reservoir Mount for Garmin eTrex Legend Color + More

OVERVIEW

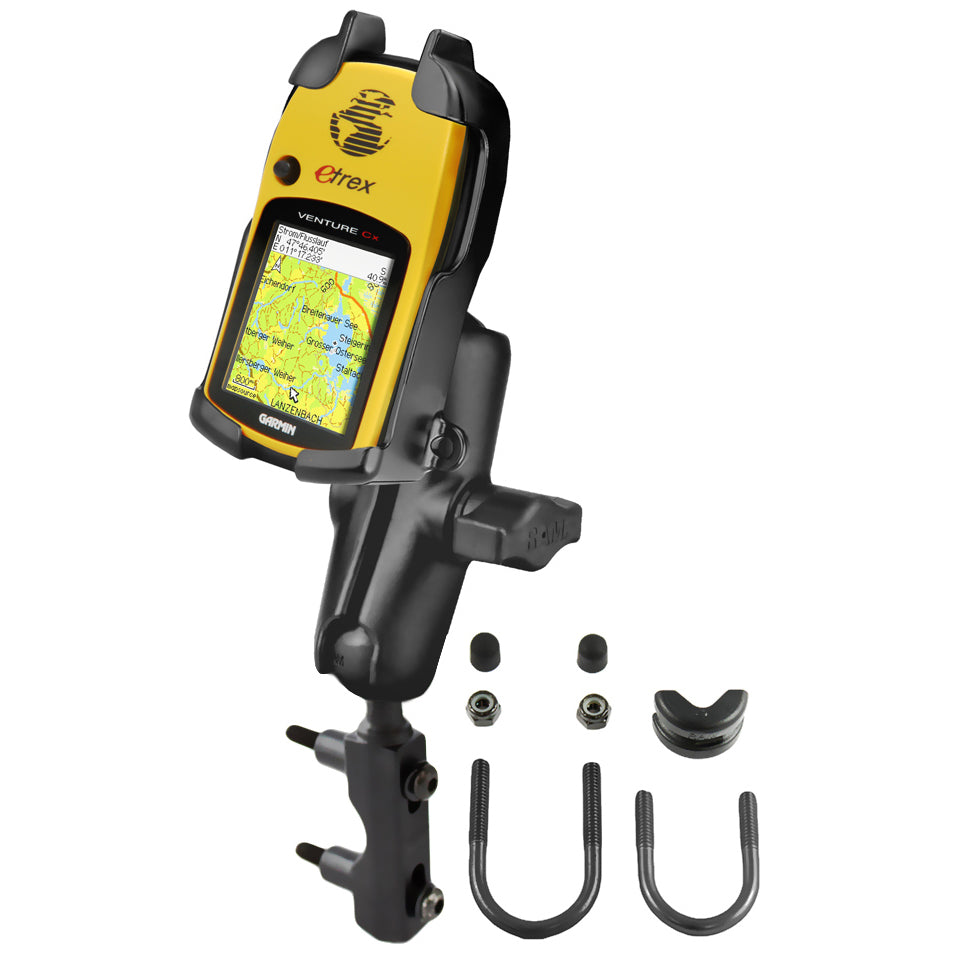

The RAM-B-174-GA16U consists of a hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, double socket arm, diamond base adapter and high strength composite cradle. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED

Assembly Hardware(2) M6 x 55mm Hex Bolts(2) #1/4-20 x 2" Hex Bolts(2) 1/4"-20 x 2.5" Hex Bolts(2) 1/2" Spacers(2) 1/4" Split Lock Washers(1) 1/4"-20 U-Bolt for .5" - 1" Rails(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails(2) 1/4"-20 Nylock Nuts(2) Rubber Caps(1) U-Bolt Spacer

CLAMP RANGE

.5" - 1.25" diameter

SOCKET TO SOCKET LENGTH

3"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

0.51 lb
