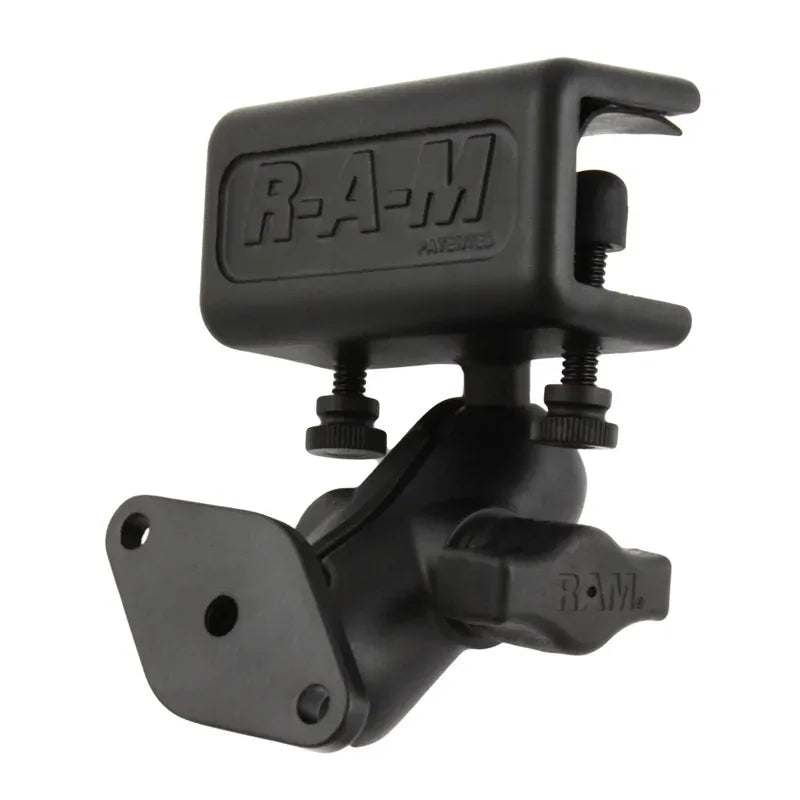

RAM Glare Shield Clamp Mount with Diamond Plate - Image 1

RAM Glare Shield Clamp Mount with Diamond Plate

RAM Mounts

$101.00

In stock

Don't Miss Top Accessories
RAM EZ-Roll'r Cradle for Apple iPad mini 1, 2 & 3
RAM EZ-Roll'r Cradle for Apple iPad mini 1, 2 & 3$40.00Add to cart
RAM Form-Fit Cradle for Garmin GPSMAP 176, 196, 276C, 396, 496 + More
RAM Form-Fit Cradle for Garmin GPSMAP 176, 196, 276C, 396, 496 + More$26.00Add to cart
Not sure this fits your setup?Tell us your device and where you are mounting it. The RAM® Mount Builder shows every mount that fits.Find my mount
SKU RAM-B-177U Categories ,
Overview

Overview

The RAM-B-177U consists of a glare shield clamp base, short double socket arm and diamond base adapter. The RAM-B-177U is designed to mount to the lip edge of a flat surface up to 5/8" thick. Popular mounting edges include a car side window edge lip or glare shield on an airplane. The base has two composite bolts that, when tightened, clamp the base to the lip surface. A RAM 1" diameter rubber ball is connected to the base allowing you to connect a RAM 1" diameter arm socket and connection plates to create the perfect mount for your application. The hole pattern found on the diamond base adapter will connect to most RAM cradles.

Specs

Hardware Included

(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad

Clamp Range

.625" max

Socket To Socket Length

1.75"

Hole Pattern

2-Hole AMPS: 1.912"

Ball Size

B Size (1")

Weight Capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials

Marine-grade aluminum

Packaging Type

Poly Bag

Resources
