RAM® Centered Reservoir Cover Double Ball Mount

RAM® Centered Reservoir Cover Double Ball Mount

OVERVIEW

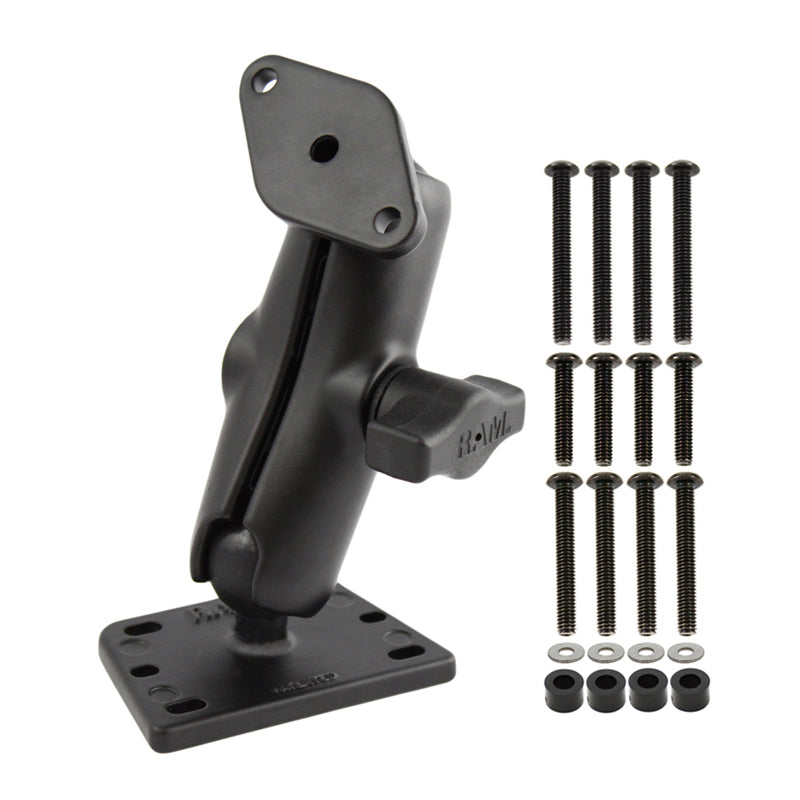

The RAM-B-182U consists of a centered brake/clutch reservoir cover base, double socket arm and diamond adapter base. The diamond adapter base has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the reservoir cover mount to your optimum viewing position.

HARDWARE INCLUDED

(4) M4 x 20mm Machine Screws(4) M4 x 30mm Machine Screws(4) M4 x 35mm Machine Screws(4) Nylon Spacers(4) M4 Stainless Steel Washers

PRODUCT DIMENSIONS

Overall Height: 5"

SOCKET TO SOCKET LENGTH

3"

HOLE PATTERN

2-Hole AMPS: 1.912"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.66 lb

ADDITIONAL INFORMATION

This mount is not compatible with the 2016 BMW R1200RT.
