RAM® X-Grip® with Twist-Lock™ Pivot Suction for 9″-11″ Tablets – Short
$387.00
Overview

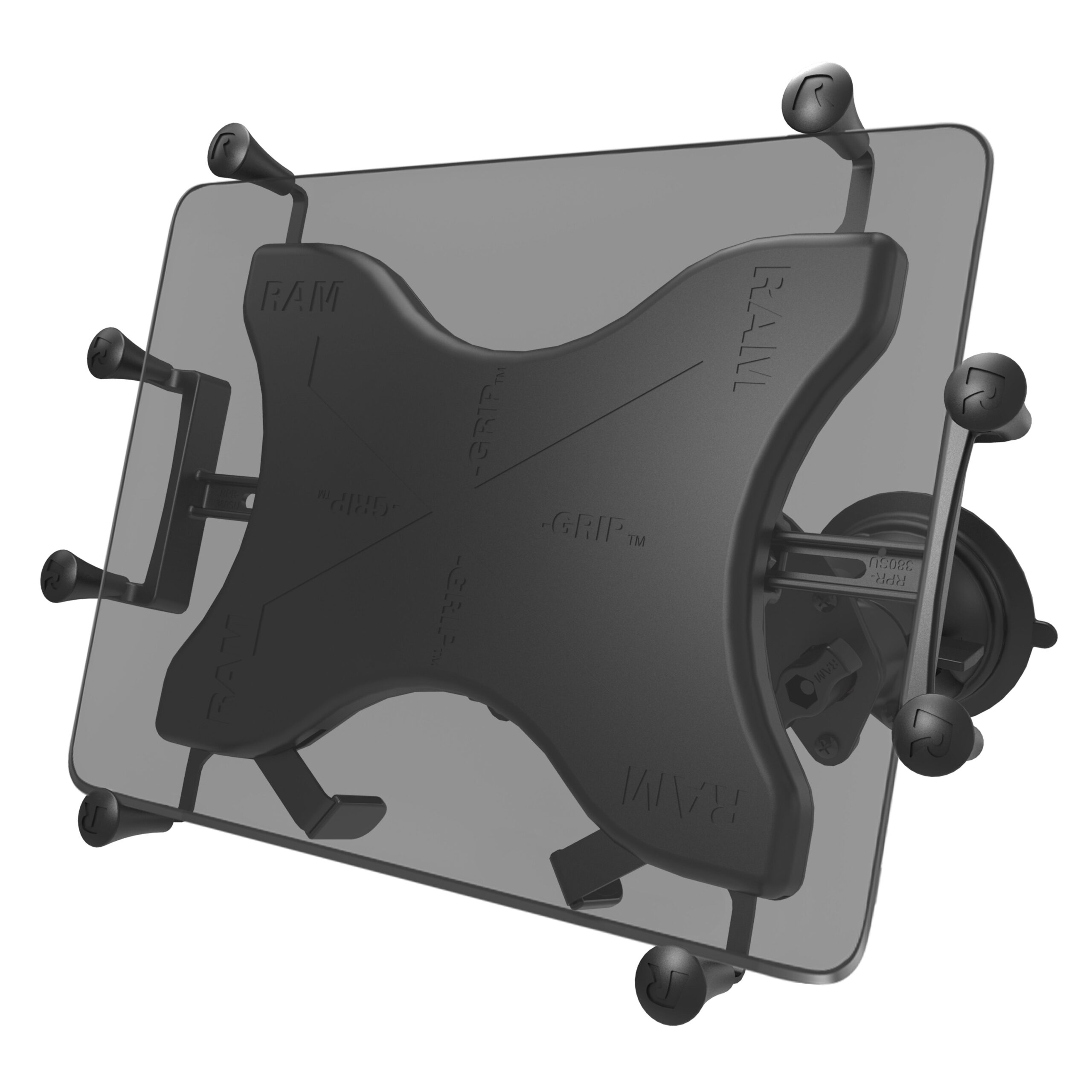

The RAM-B-189-PIV1-A-UN9U consists of a dual articulating 3.3" twist lock suction cup base, short length double socket arm, and universal X-Grip® cradle for 9"-11" tablets. The dual articulating suction cup base is an amazing innovation in suction cup mounting. With the ability to independently articulate each suction cup, this mounting base can be used in a variety of applications such as curved windows and surfaces. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® cradle is compatible with devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Hardware Included
Assembly Hardware
Holder Dimensions
Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"
Suction Size
(2) 3.3" Diameter Bases, Total Width 7.95"
Socket To Socket Length
1.75"
Ball Size
B Size (1")
Weight Capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
Materials
Powder coated steel
Marine-grade aluminum
High strength composite
Packaging Type
Poly Bag
Weight
2.48 lb
Additional Information
*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
