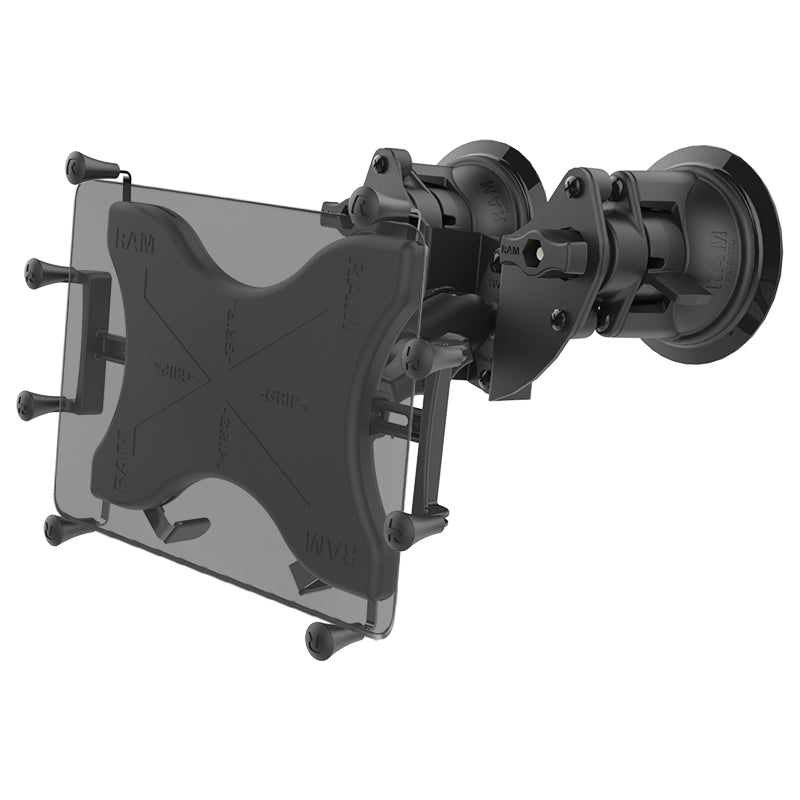

RAM X-Grip with RAM Twist-Lock Pivot Suction for 12"-13" Tablets - Image 1
Click to enlarge

RAM X-Grip with RAM Twist-Lock Pivot Suction for 12″-13″ Tablets

$393.00

In stock

  • Spring-loaded ‘X’ design with rubber caps sports great holding power without hiding your tablet; fits most 12″ tablets
  • Includes RAM® Twist-Lock™ dual suction cup base and medium length B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty
SKU RAM-B-189-PIV1-UN11U Category
Overview

RAM X-Grip with RAM Twist-Lock Pivot Suction for 12″-13″ Tablets

OVERVIEW

The RAM-B-189-PIV1-UN11U consists of a dual articulating 3.3" twist lock suction cup base, double socket arm, and universal X-Grip® cradle for 12" Tablets. The dual articulating suction cup base is an amazing innovation in suction cup mounting. With the ability to independently articulate each suction cup, this mounting base can be used in a variety of applications such as curved windows and surfaces. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® cradle is compatible with devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

HARDWARE INCLUDED

Assembly Hardware

HOLDER DIMENSIONS

Max Height: 10.25" (using optional supports)Width Range: 7.25" - 8.75"Max Depth: .875"

SUCTION SIZE

(2) 3.3" Diameter Bases, Total Width 7.95"

SOCKET TO SOCKET LENGTH

3"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Powder coated steelMarine-grade aluminumHigh strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

2.48 lb

ADDITIONAL INFORMATION

*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
