SKU RAM-B-189-TAB8-ALA1U Categories , ,
Overview

Overview

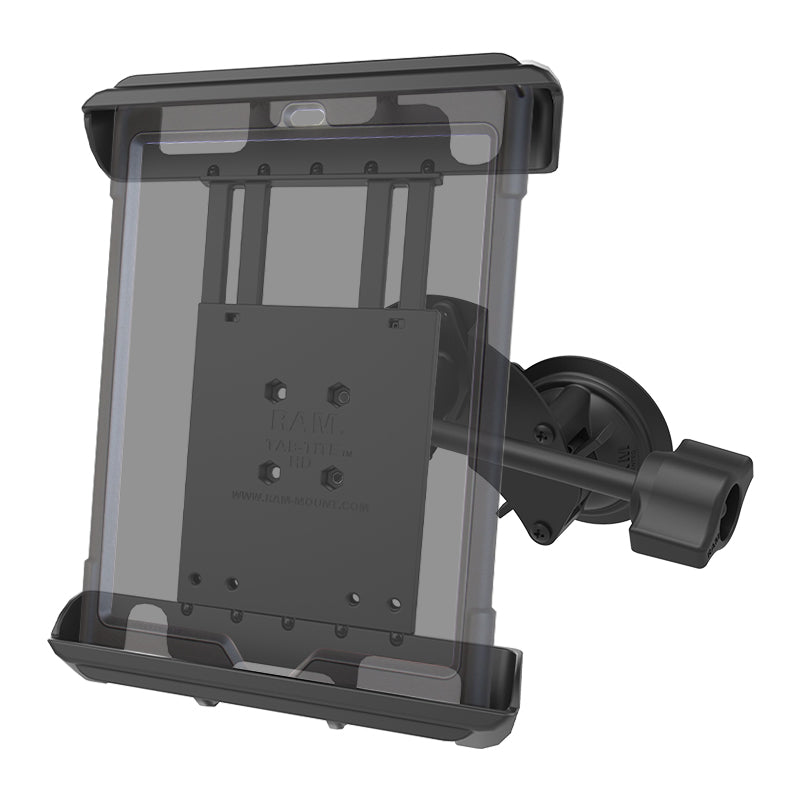

The RAM-B-189-TAB8-ALA1U consists of a double 3.3" twist lock suction cup base, double socket arm, round base adapter, extended retention knob and Tab-Tite™ universal clamping cradle. The included backplate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the backplate for support of your new tablet. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Specs

Hardware Included

Assembly Hardware

Holder Dimensions

Height Range: 9" - 11.5"
Width Range: 6.38" - 8.31"
Depth Range: .13" - 1.12"

Suction Size

(2) 3.3" Diameter Bases, Total Width 7.95"

Socket To Socket Length

3"

Ball Size

B Size (1")

Weight Capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials

Powder coated steel
Marine-grade aluminum
High strength composite

Packaging Type

Poly Bag

Resources
