RAM U-Bolt Ball Base for Rear View Mirrors

RAM U-Bolt Ball Base for Rear View Mirrors

OVERVIEW

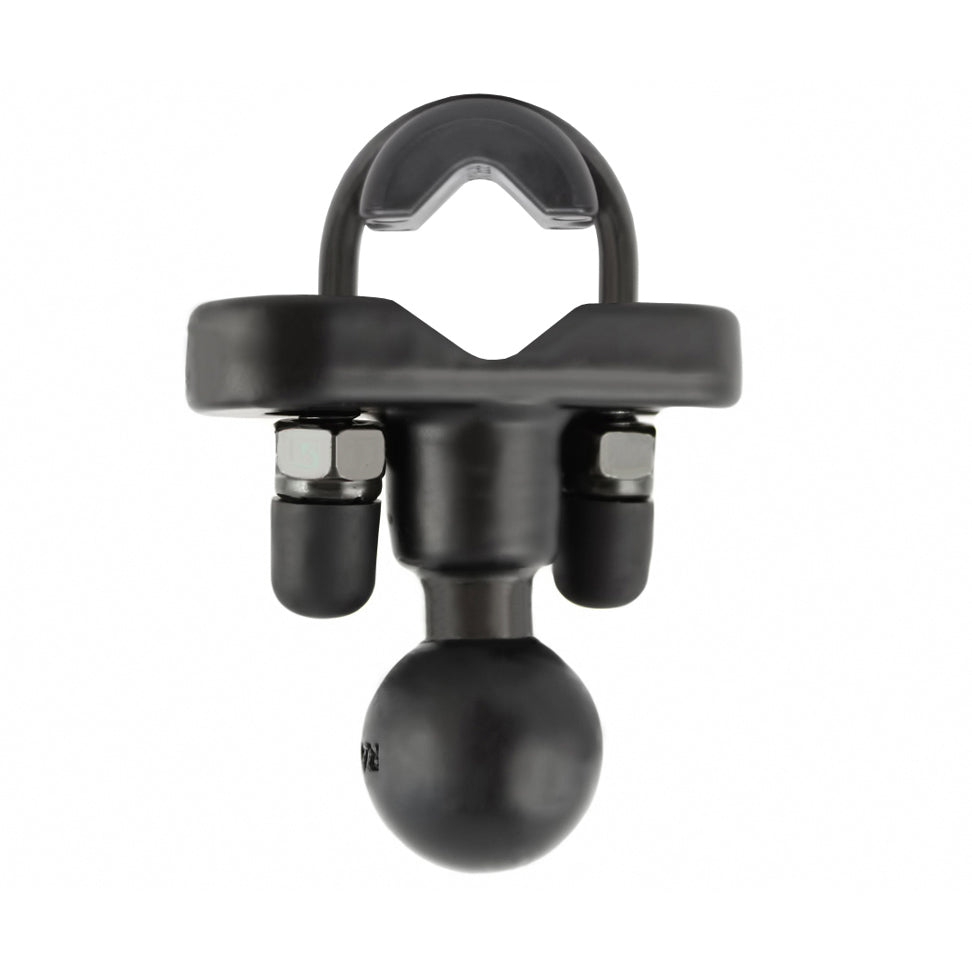

The RAM-B-231Z-RVMU consists of a 1" rubber ball designed to sit at right angles to the mounting rail and zinc coated metal u-bolt. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mirror base will attach to all RAM 1" diameter ball compatible arms.

HARDWARE INCLUDED

(1) 1/4"-20 U-Bolt for .5" - 1" Rails(2) 1/4"-20 Hex Nuts(2) Rubber Caps(1) U-Bolt Spacer

CLAMP RANGE

.5" - 1" diameter

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.22 lb
