RAM® Motorcycle Fork Stem Mount with 1/4″-20 Action Camera Adapter

RAM® Motorcycle Fork Stem Mount with 1/4″-20 Action Camera Adapter

OVERVIEW

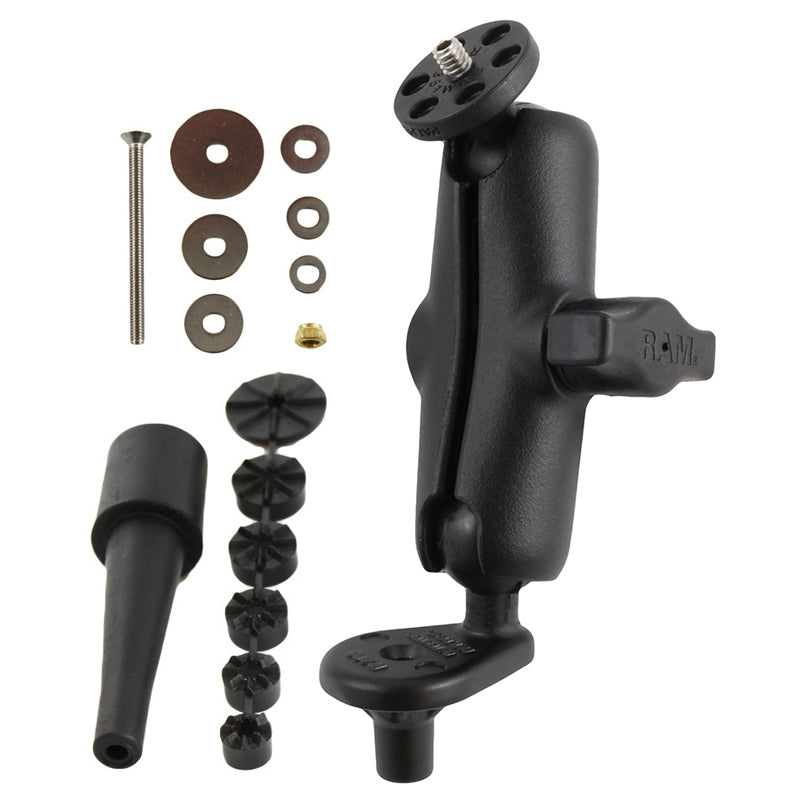

The RAM-B-342-366U consists of a fork stem base, double socket arm and 1" diameter rubber ball, connected to a round plate with 1/4"-20 camera thread. The RAM® Motorcycle Fork Stem Base is one of the cleanest and most popular solutions for mounting your device cleanly on the center of your bike. This part is designed to fit into the cylindrical bore wall of fork stems and will work with stems that measure from 12 - 38mm (.5” – 1.49”).

HARDWARE INCLUDED

(1) Expansion Plug for 12mm - 38mm (.5" - 1.49") Fork Stem Holes(1) M5 x 60mm Machine Screw(1) Steel Washer Set(1) Nut Pocket Washer Set(1) Brass Nylock Nut

SOCKET TO SOCKET LENGTH

3"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

0.59 lb
