RAM® Quick-Grip™ Pro XL Tough-Claw™ Mount with Qi2 15W Wireless Charger

RAM® Quick-Grip™ Pro XL Tough-Claw™ Mount with Qi2 15W Wireless Charger

OVERVIEW

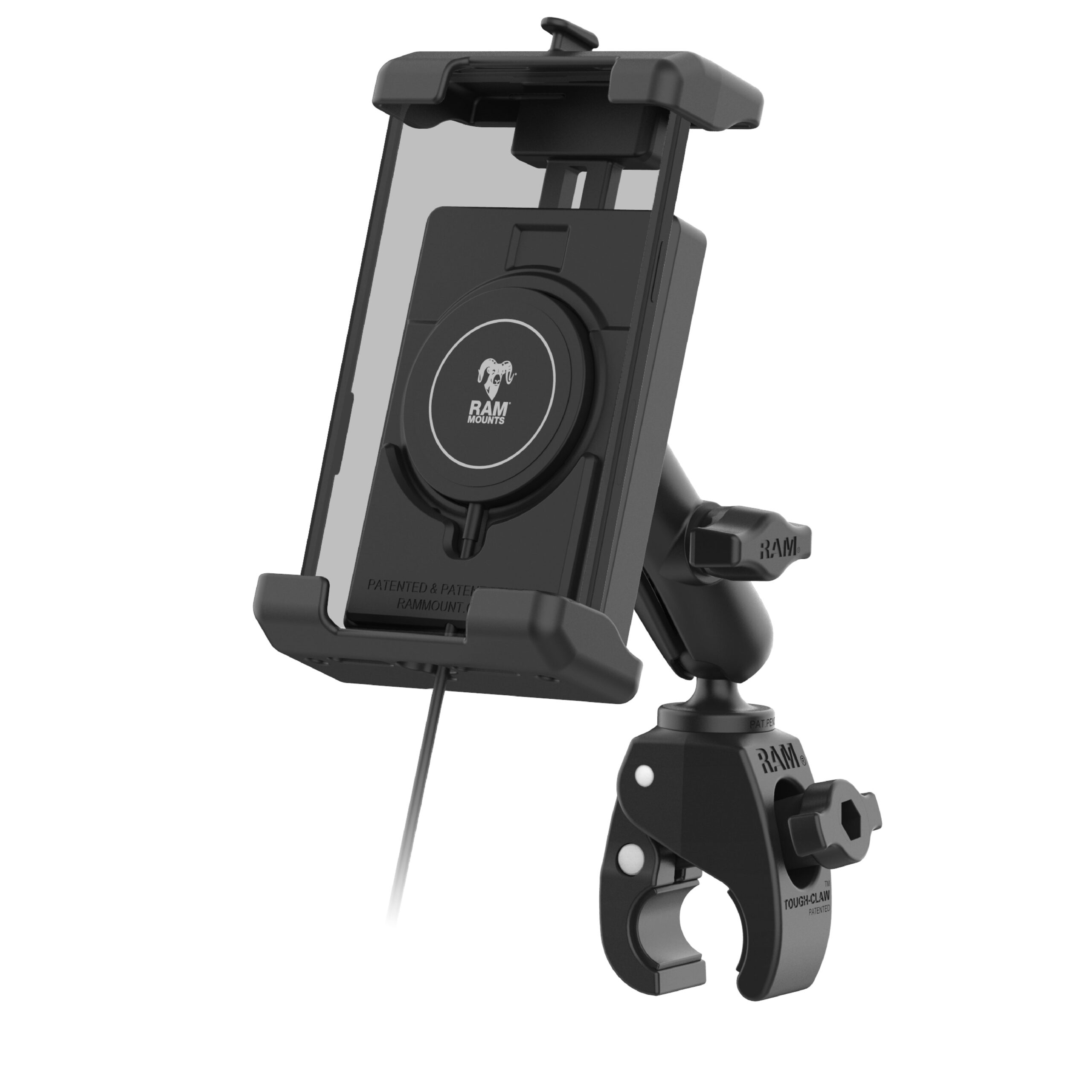

The RAM® Quick-Grip™ Pro XL Tough-Claw™ Mount with Qi2 15W Wireless Charger (RAM-B-400-PD7-W2MU) is a complete mounting and charging solution featuring the next evolution of the RAM® Quick-Grip™ phone holder series, engineered to be the most rugged universal holder yet for a wide range of phones and handheld devices. Included in this kit is the RAM® Qi2 15W Wireless Charger, transforming the holder into a convenient wireless charging solution for compatible devices. The spring-loaded RAM® Quick-Grip™ Pro XL allows for easy one-handed insertion and removal while maintaining a secure hold in demanding environments. Paired with the RAM® Tough-Claw™, this kit enables tool-free installation on round, square, and irregular-shaped rails and bars ranging from .625" to 1.14" in outer diameter. The RAM® ball and socket system provides near-infinite adjustability for optimal viewing angles. RAM® recommends using the included device tether in open-cockpit vehicle applications. Verify the dimensions of your handheld device with any case, sleeve, or skin installed to ensure proper fitment.

HARDWARE INCLUDED

Assembly Hardware

HOLDER DIMENSIONS

Height Range: 5.375" - 7"Width Range: 2.75" - 3.5"Max Depth: .75"

CLAMP RANGE

.625" - 1.14" diameter

SOCKET TO SOCKET LENGTH

3"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum High strength composite

PACKAGING TYPE

Poly Bag

POWER SPECIFICATIONS

Operating Frequency: 360KHZStand-by Consumption ~ 0.008A / 8mA @5VDC80% Wireless Power Transfer Efficiency or GreaterSupports USB 2.0 BC1.2 Power Supply (5V)Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0

INPUT VOLTAGE

USB 5V @ 3AQC2.0 9V @ 2.22AUSB PD 2.0 5-15V @ 2A

POWER OUTPUT

BPP - 5WEPP - 7.5WMPP - 15W

OUTPUT CONNECTOR

USB Type-C Male with USB-A Adapter

OUTPUT CABLE LENGTH

1 Meter

OPERATING TEMPERATURE

0°C to +40°C

STORAGE TEMPERATURE

-20°C to +80°C

REGULATORY

Over Current ProtectionShort circuit ProtectionOver Temperature ProtectionRoHS ComplianceWEEE Compliance

CERTIFICATIONS

IP67SAE J1455FCC CertificationCE CertificationE-Mark CertificationRCM Certification

WEIGHT

1.45 lb

ADDITIONAL INFORMATION

The included wireless charger will support up to 8mm charging distance between puck and device. A reduction in vibration does not guarantee full protection of device. External immeasurable factors may cause damage to phones, cameras, and other devices while mounted. National Products, Inc does not assume responsibility or liability for any such personal injury, death or property damage. RAM® mounts lifetime warranty is limited to RAM® mounts and components. The warranty does not include any device mounted or attached to a RAM® mount, such as a phone, GPS, camera, computer or other device.
