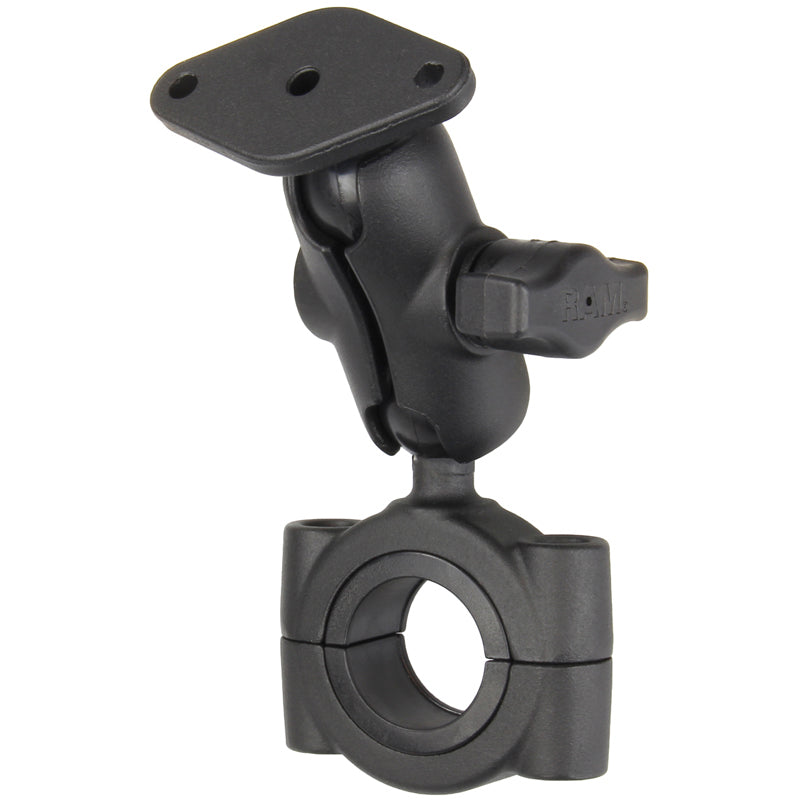

RAM® Torque™ Large Rail Base with Diamond Plate – Short

RAM® Torque™ Large Rail Base with Diamond Plate – Short

OVERVIEW

The RAM® Torque™ handlebar and rail mounting base has a 1” rubber ball and accommodates bars 1 1/8” to 1 1/2” in diameter. Sizing inserts are included to provide a snug fit and protection of the rail. The mount utilizes nylon-insert lock nuts to prevent loosening in high vibration environments. Included is a short double socket arm and a diamond plate for mounting to RAM mounting cradles.

HARDWARE INCLUDED

(2) #10-24 x 1" Socket Head Cap Screws(2) #10-24 Nylock Nuts(2) 1.12" Split Reducing Bushings(2) 1.27" Split Reducing Bushings(1) 5/32" Hex Key Wrench(1) 127mm x 17mm Rubber Adhesive Strip

CLAMP RANGE

1.125" - 1.5" diameter

SOCKET TO SOCKET LENGTH

1.75"

HOLE PATTERN

2-Hole AMPS: 1.912"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.57 lb
