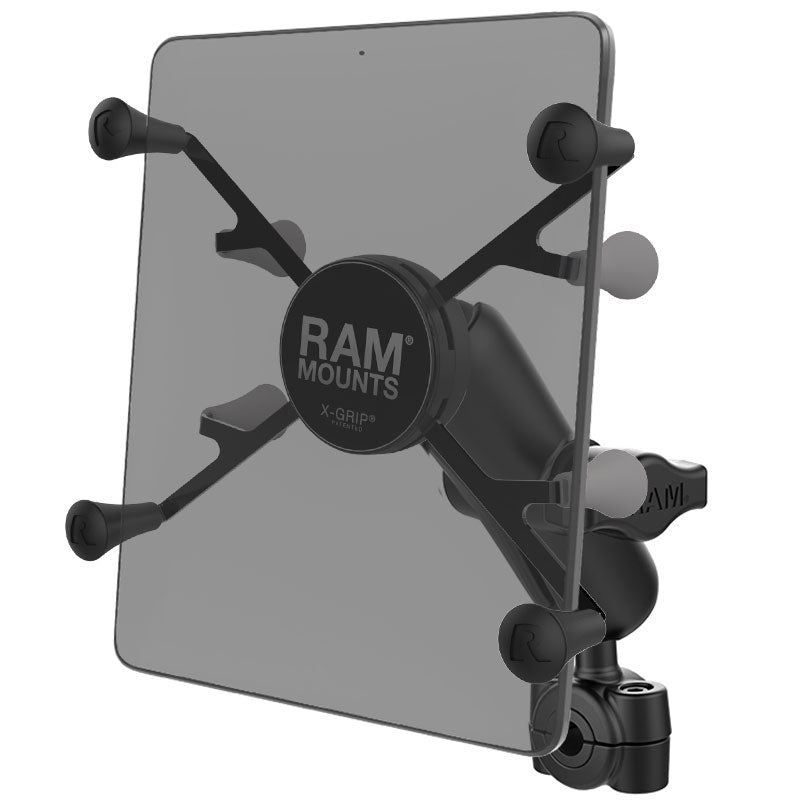

RAM® X-Grip® with RAM® Torque™ Small Rail Base for 7″-8″ Tablets

RAM Mounts

$189.00

RAM Torque Small Rail Base

$52.00

RAM X-Grip Universal Holder for 7"-8" Tablets with Ball - B Size

$99.00

RAM Double Socket Arm - B Size Medium

$38.00

In stock

In stock

Not sure this fits your setup?Tell us your device and where you are mounting it. The RAM® Mount Builder shows every mount that fits.Find my mount
SKU RAM-B-408-37-62-UN8U Categories ,
Overview

Overview

Take your mobile entertainment on the road with the new RAM® Torque™ handlebar and rail mounting base. We’ve paired a B-size 1” rubber ball base that accommodates bars 3/8” – 5/8” in diameter with a B-size standard length arm the dynamic X-Grip® for 7”-8” tablets. Sizing inserts are included to provide a snug fit and offer additional protection for the rail. The mount utilizes nylon-insert lock nuts to prevent loosening in high vibration environments. This low-profile mount is the perfect way to secure your personal electronics and small accessories in any high-vibration environment. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Specs

Hardware Included

(1) Optional Tether
(1) Glue Tube for Rubber Caps
(2) #8-32 x .75" Socket Head Cap Screws
(2) #8-32 Nylock Nuts
(2) .32" Composite Bushings
(2) .4" Composite Bushings
(2) .47" Composite Bushings
(2) .55" Composite Bushings
(1) 57.2mm Rubber Strip
(1) 9/64" Hex Key Wrench

Holder Dimensions

Width Range: 2.5" - 5.75"
Depth Range: .875" max

Clamp Range

.375" - .625" diameter

Socket To Socket Length

3"

Ball Size

B Size (1")

Weight Capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials

Marine-grade aluminum
High strength composite

Packaging Type

Poly Bag

Weight

0.8 lb
