RAM® Torque™ Medium Rail Base with Universal Action Camera Adapter

RAM® Torque™ Medium Rail Base with Universal Action Camera Adapter

OVERVIEW

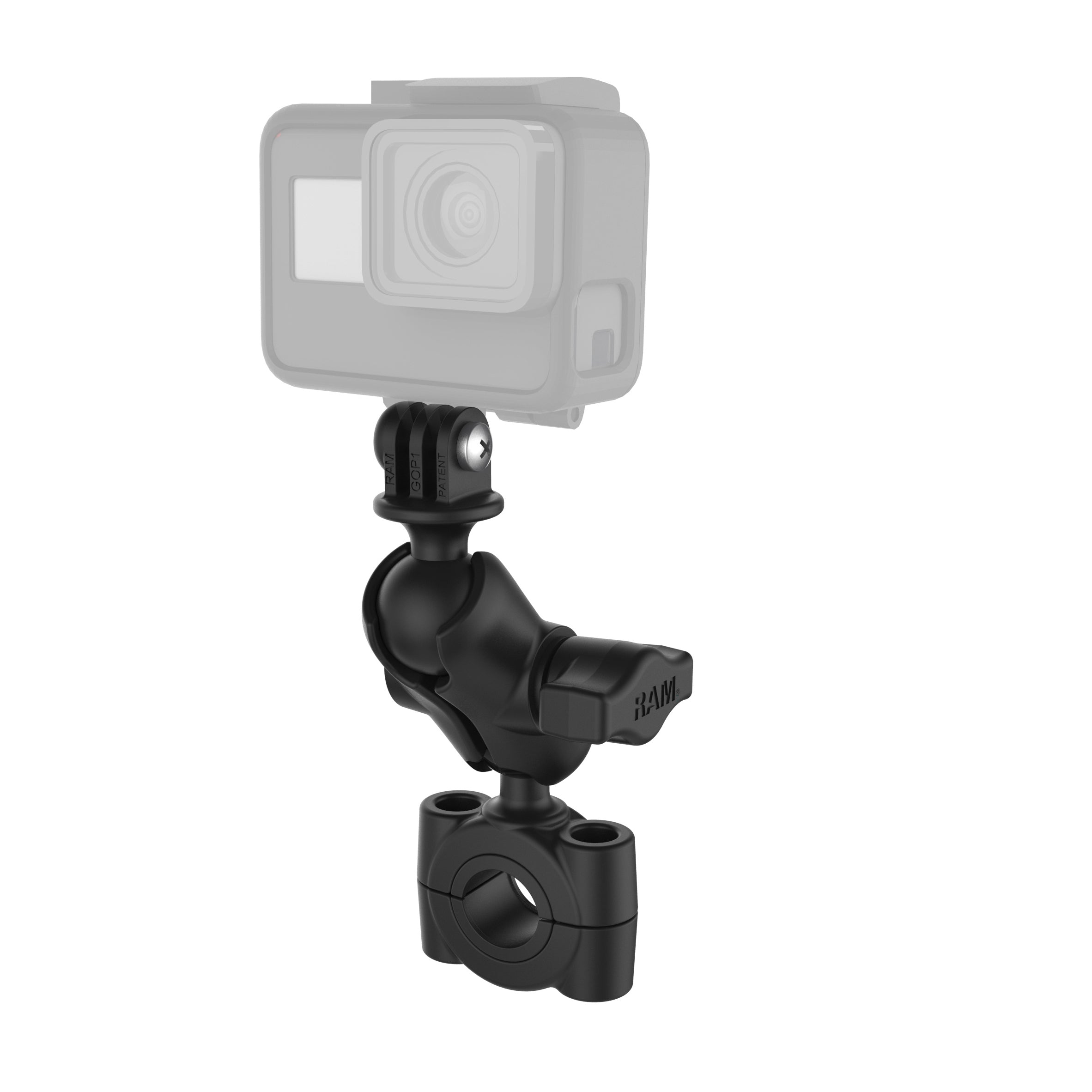

The RAM® Torque™ handlebar and rail mounting base has a 1” rubber ball and accommodates bars 3/4” to 1” in diameter. Sizing inserts are included to provide a snug fit and protection of the rail. The mount utilizes nylon-insert lock nuts to prevent loosening in high vibration environments. Included is a short double socket arm and a GoPro/Action Camera mount.

HARDWARE INCLUDED

Assembly Hardware(2) #10-24 x 1" Socket Head Cap Screws(2) #10-24 Nylock Nuts(2) .75" Composite Bushings(2) .9" Composite Bushings(1) 88.9mm Rubber Strip(1) 5/32" Hex Key Wrench

CLAMP RANGE

.75" - 1" diameter

SOCKET TO SOCKET LENGTH

1.75"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

0.5 lb
