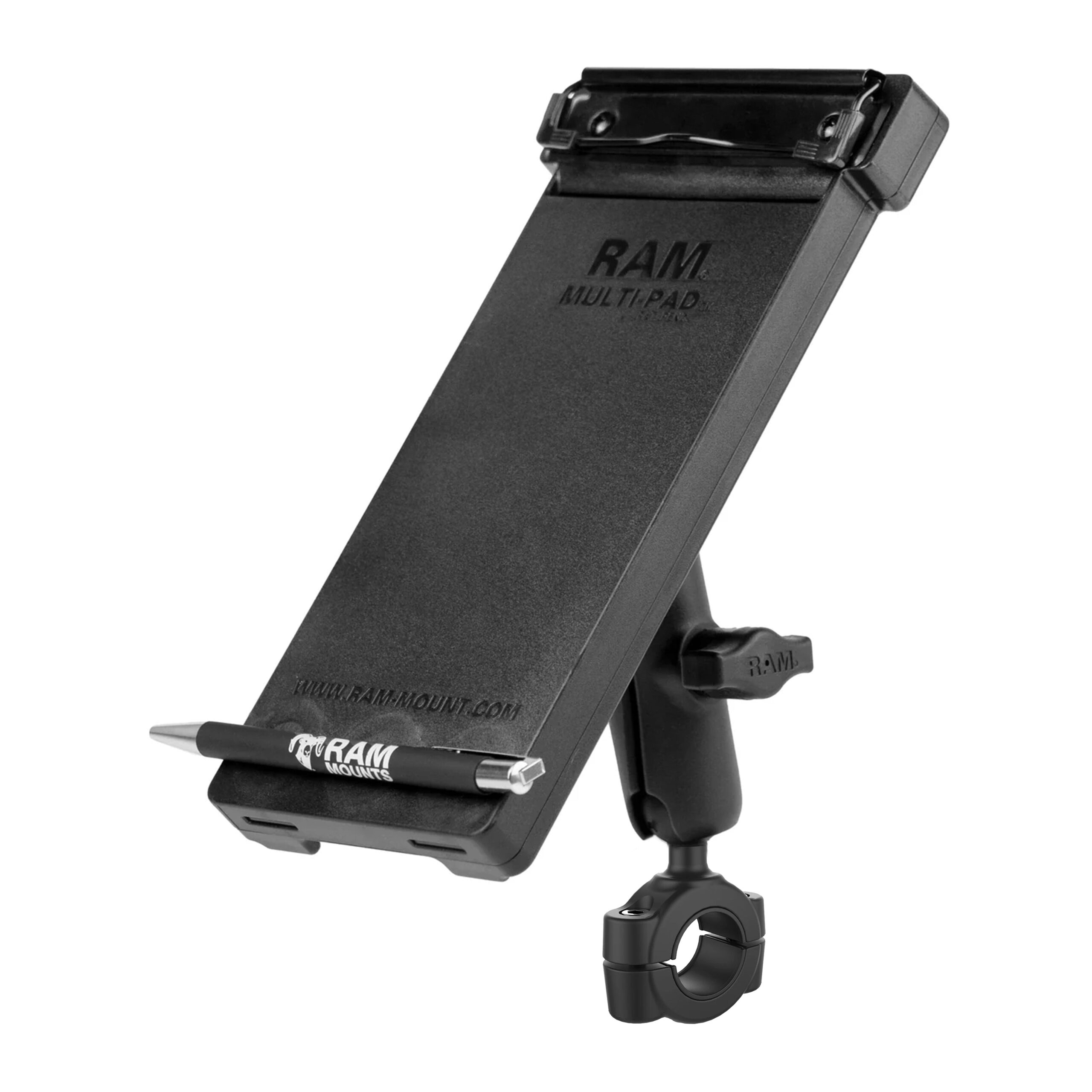

RAM® Multi-Pad™ Mount with Medium Torque™ Base

RAM® Multi-Pad™ Mount with Medium Torque™ Base

OVERVIEW

The RAM® Multi-Pad™ Mount with Medium Torque™ Base (RAM-B-408-75-1-MP1U) is a rugged mounting solution designed to keep notes organized and within reach. The RAM® Multi-Pad™ features a durable 4.25" x 7.87" writing surface with an integrated spring clip to hold small notepads, plus a dedicated slot that securely inserts a 4" x 6.5" notepad for added stability during use. Two built-in magnets on the base provide a convenient place to store the included pen, ensuring everything stays in one place. The RAM® Torque™ handlebar mounting base is compatible with rails 3/4” to 1” in diameter, with sizing inserts included to provide a tight fit while also protecting the mounting surface. The RAM® Torque™ mounting base also includes nylon-insert lock nuts to prevent loosening in high vibration environments. The RAM® ball and socket system allows for articulation at both ends of the double socket arm, creating almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED

Assembly Hardware (1) RAM® Pen (2) #10-24 x 1" Socket Head Cap Screws (2) #10-24 Nylock Nuts (2) .75" Composite Bushings (2) .9" Composite Bushings (1) 88.9mm Rubber Strip (1) 5/32" Hex Key Wrench

CLAMP RANGE

.75" - 1" diameter

SOCKET TO SOCKET LENGTH

3"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum High strength composite Stainless steel

PACKAGING TYPE

Poly Bag

WEIGHT

1.45 lb
