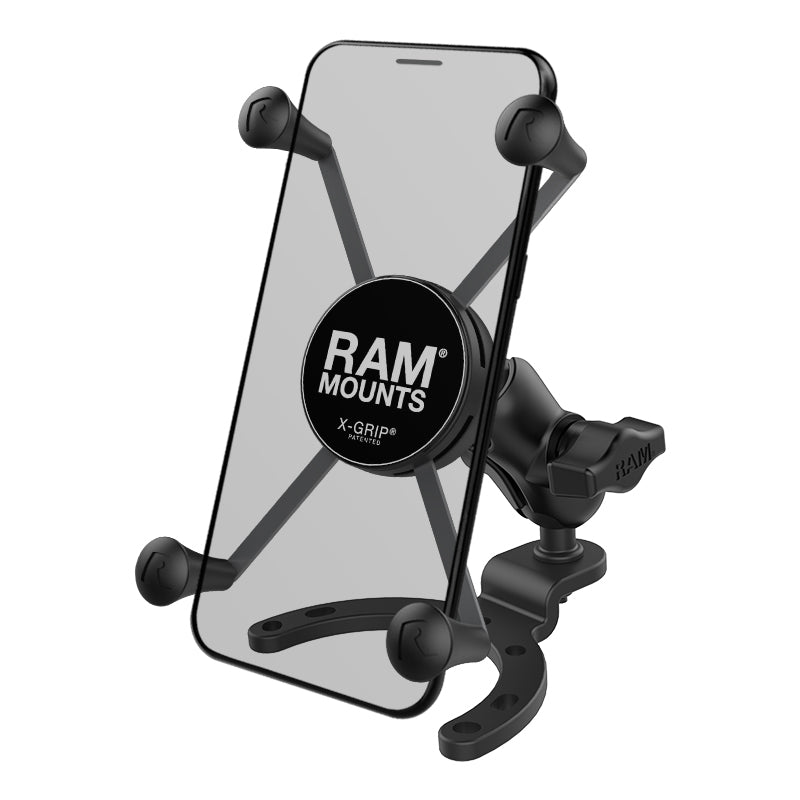

RAM® X-Grip® Large Phone Mount with Large Gas Tank Base

RAM® X-Grip® Large Phone Mount with Large Gas Tank Base

OVERVIEW

The RAM Gas Tank base is a low-profile way to get a unique perspective from your camera or to attach your electronic device where it can be quickly accessible. This powder coated aluminum base mounts directly to the stock gas tank of any listed compatible motorcycles. We include the hardware you need to mount to the fill port as well. Included is the X-Grip for large phone devices. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

HARDWARE INCLUDED

Assembly Hardware(1) Optional Tether(1) Glue Tube for Rubber Caps(4) M5-.8 x 40mm Socket Head Cap Screws(3) M5-.8 x 25mm Socket Head Cap Screws(4) M5 Stainless Steel Washers

HOLDER DIMENSIONS

Width Range: 1.75" - 4.5"Depth Range: .875" max

SOCKET TO SOCKET LENGTH

1.75"

HOLE PATTERN

See Drawing

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum High strength composite Stainless steel

PACKAGING TYPE

Poly Bag

WEIGHT

0.62 lb

ADDITIONAL INFORMATION

Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more. To ensure proper fit use the measuring guide. Tank bolts distance, for this part will be 4".
