RAM® Large Marine Electronics Mount – D Size Long

RAM® Large Marine Electronics Mount – D Size Long

OVERVIEW

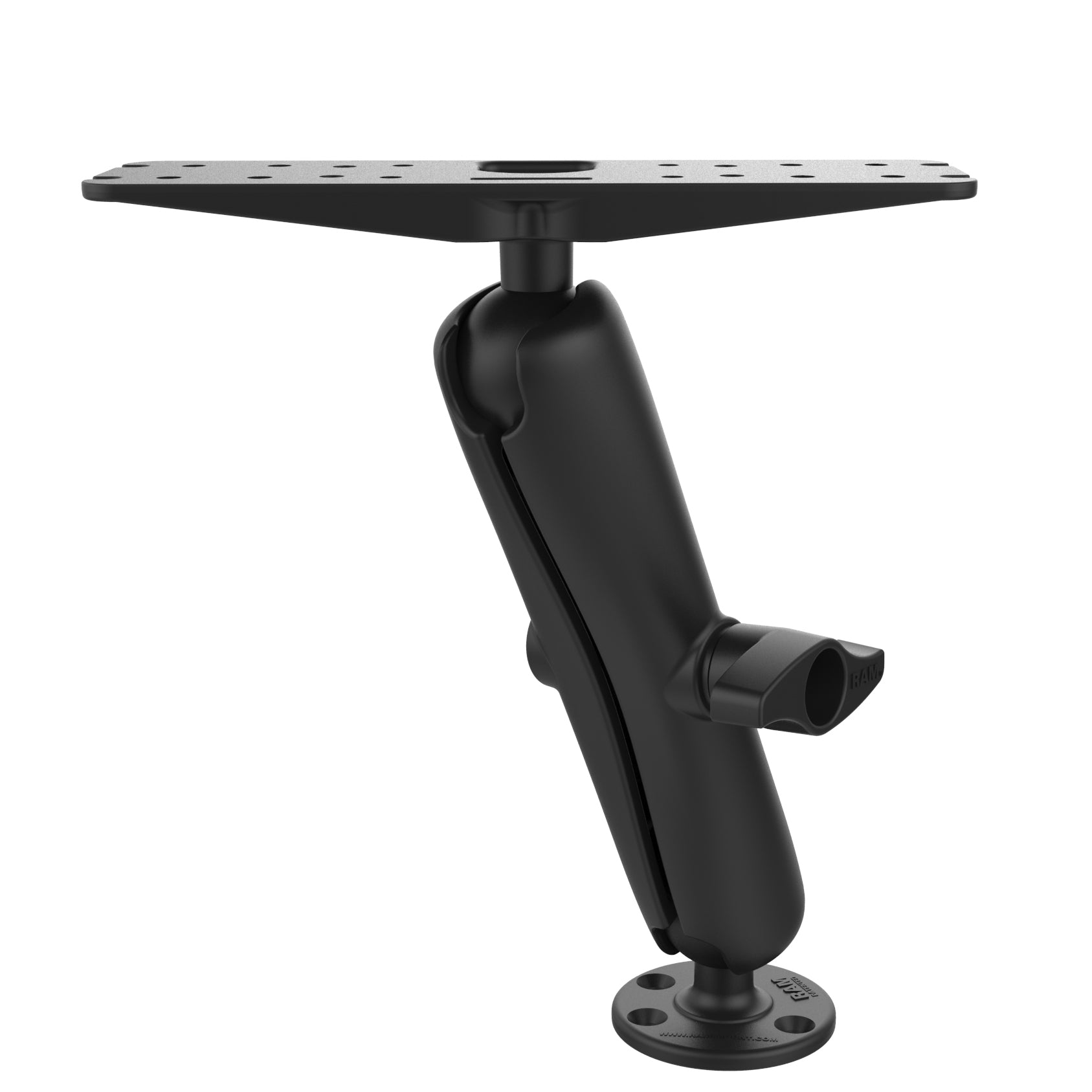

The RAM® Large Marine Electronics Mount (RAM-D-111U-E) is a complete, drill-down mounting solution for fish finders, chartplotters, and other large electronic devices. This kit consists of D size components, including a 3.68" diameter round base, long-length double socket arm, and 11" x 3" rectangular adapter plate. The round base is pre-drilled with several combinations of holes, including two holes at 180° and three holes at 120°. The adapter plate contains different combinations of pre-drilled holes which will match up to popular electronic devices and gimbal brackets. Included are four shoulder washers that allow smaller hardware to fit properly in the large holes of this plate.

HARDWARE INCLUDED

(4) .312" x .187" Shoulder Washers

PRODUCT DIMENSIONS

Overall Height: 16.03"

SOCKET TO SOCKET LENGTH

11.41"

HOLE PATTERN

See Drawings

PLATE SIZE

Top Plate: 3" x 11"Bottom Plate: 3.68" Diameter

BALL SIZE

D Size (2.25")

WEIGHT CAPACITY

Standard Use: 6 lbsHeavy-Duty Use: 5 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

5.75 lb

ADDITIONAL INFORMATION

The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
