RAM Large Marine Electronics Mount – D Size Medium

FEATURES:

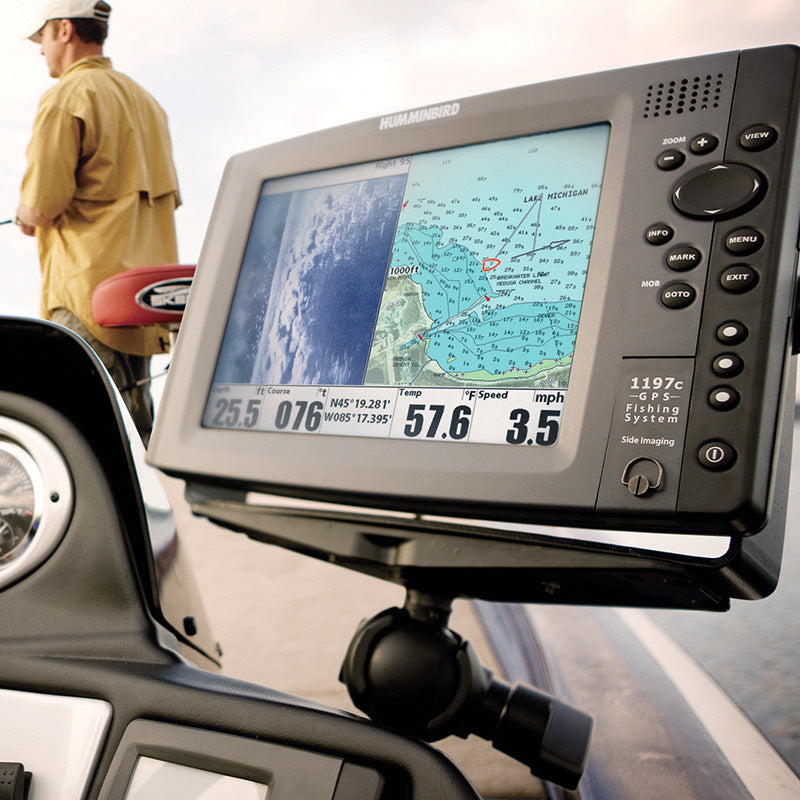

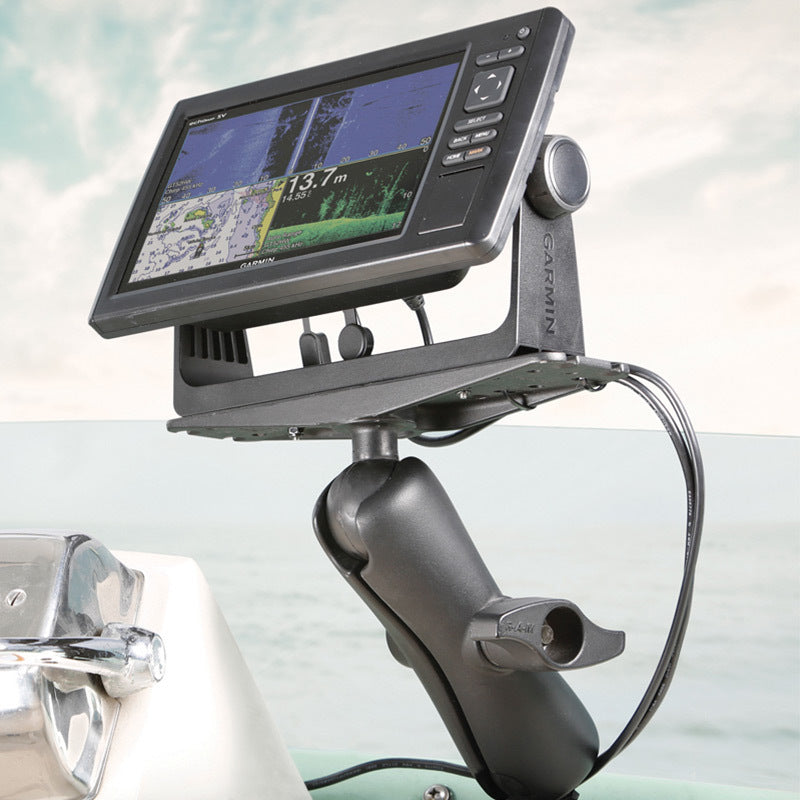

• Complete flat surface, drill-down mounting solution for large marine electronics with an overall height of 11.5"
• RAM® Mounts ball and socket technology allows for near-infinite adjustability
• Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
• Backed by a lifetime warranty

OVERVIEW:

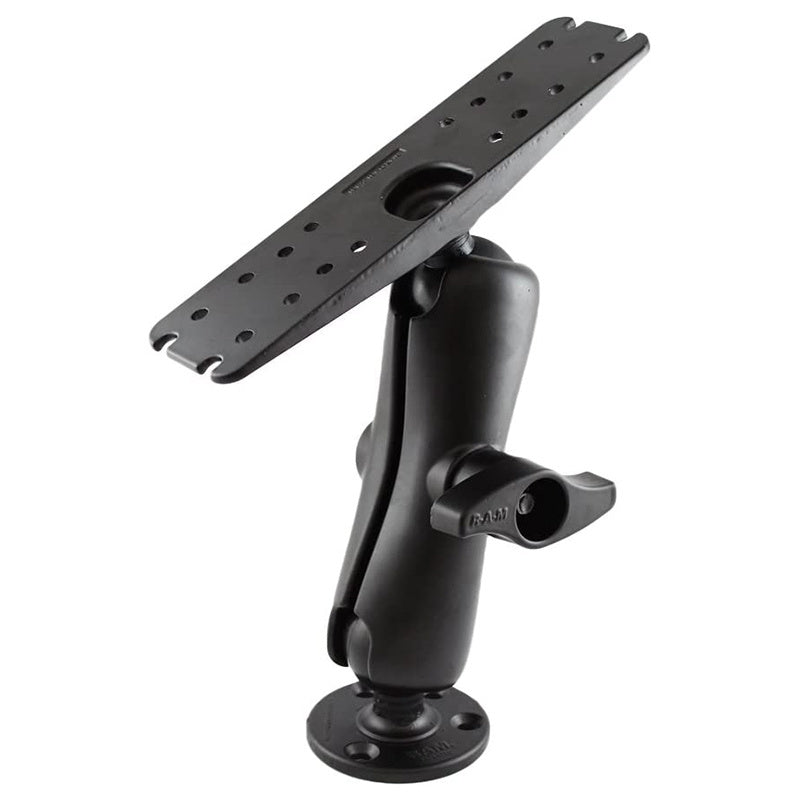

The RAM-D-111U consists of a medium double socket arm, 3.68" diameter round base, and 11" x 3" rectangle base. The round base includes a 2.25" D size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 2.25" D size rubber ball and contains a variety of pre-drilled holes that are compatible with several large marine electronic devices, including fishfinders and chartplotters.

HARDWARE INCLUDED:

(4) .312" x .187" Shoulder Washers

PRODUCT DIMENSIONS:

Overall Height: 11.5"

SOCKET-TO-SOCKET LENGTH:

6.88"

HOLE PATTERN:

See Drawings

PLATE SIZE:

• Top Plate: 3" x 11"
• Bottom Plate: 3.68" Diameter

BALL/SOCKET SIZE:

D Size (2.25")

WEIGHT CAPACITY:

• Standard Use: 6 lbs
• Heavy-Duty Use: 5 lbs

MATERIALS:

Marine-grade aluminum

ADDITIONAL INFORMATION

• The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
