OVERVIEW

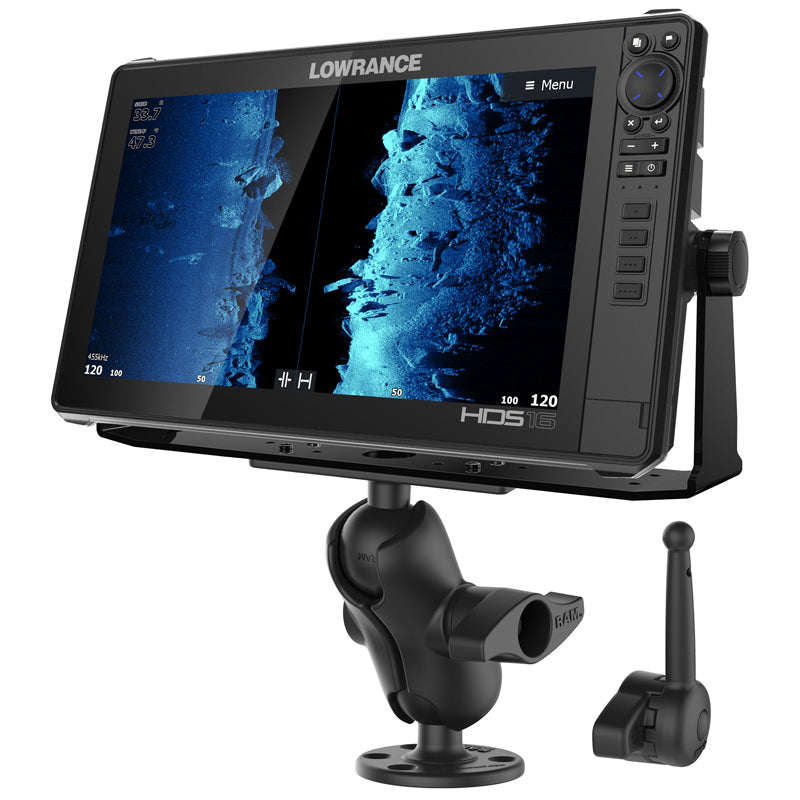

The RAM-D-115-C-KNOB9H consists of a base with a 2.25” diameter D size ball, a short arm, a Hi-Torq™ wrench and a 6.25” x 2” marine electronic plate with a D size ball for supporting larger devices. This marine electronic plate contains different combinations of pre-drilled holes and is a direct fit for 9”-12” fish finder gimbal brackets. For cold weather environments, the included Hi-Torq wrench helps to tighten the knob on the arm for a secure hold. Supports devices such as the Lowrance HDS-9 Gen2 Touch, Garmin GPSMAP 7407 and more.

PRODUCT DIMENSIONS

Overall Height: 7.325"

SOCKET TO SOCKET LENGTH

3.6"

HOLE PATTERN

See Drawings

PLATE SIZE

Top Plate: 6.25" x 2"Bottom Plate: 3.68" Diameter

BALL SIZE

D Size (2.25")

WEIGHT CAPACITY

Standard Use: 6 lbsHeavy-Duty Use: 5 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Retail bag

WEIGHT

3.65 lb

ADDITIONAL INFORMATION

The 6.25" x 2" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
