RAM Drill-Down Ball Mount for Humminbird Helix 8-10 & XPLORE Series
RAM Drill-Down Ball Mount for Humminbird Helix 8-10 & XPLORE Series - Image 2
RAM Drill-Down Ball Mount for Humminbird Helix 8-10 & XPLORE Series - Image 3
RAM Drill-Down Ball Mount for Humminbird Helix 8-10 & XPLORE Series - Image 4
RAM Drill-Down Ball Mount for Humminbird Helix 8-10 & XPLORE Series - Image 5
RAM Drill-Down Ball Mount for Humminbird Helix 8-10 & XPLORE Series - Image 6
RAM Drill-Down Ball Mount for Humminbird Helix 8-10 & XPLORE Series - Image 7

RAM Drill-Down Ball Mount for Humminbird Helix 8-10 & XPLORE Series

$260.00

In stock

SKU RAM-D-202-25-C-202U Categories , ,
Overview

RAM Drill-Down Ball Mount for Humminbird Helix 8-10 & XPLORE Series

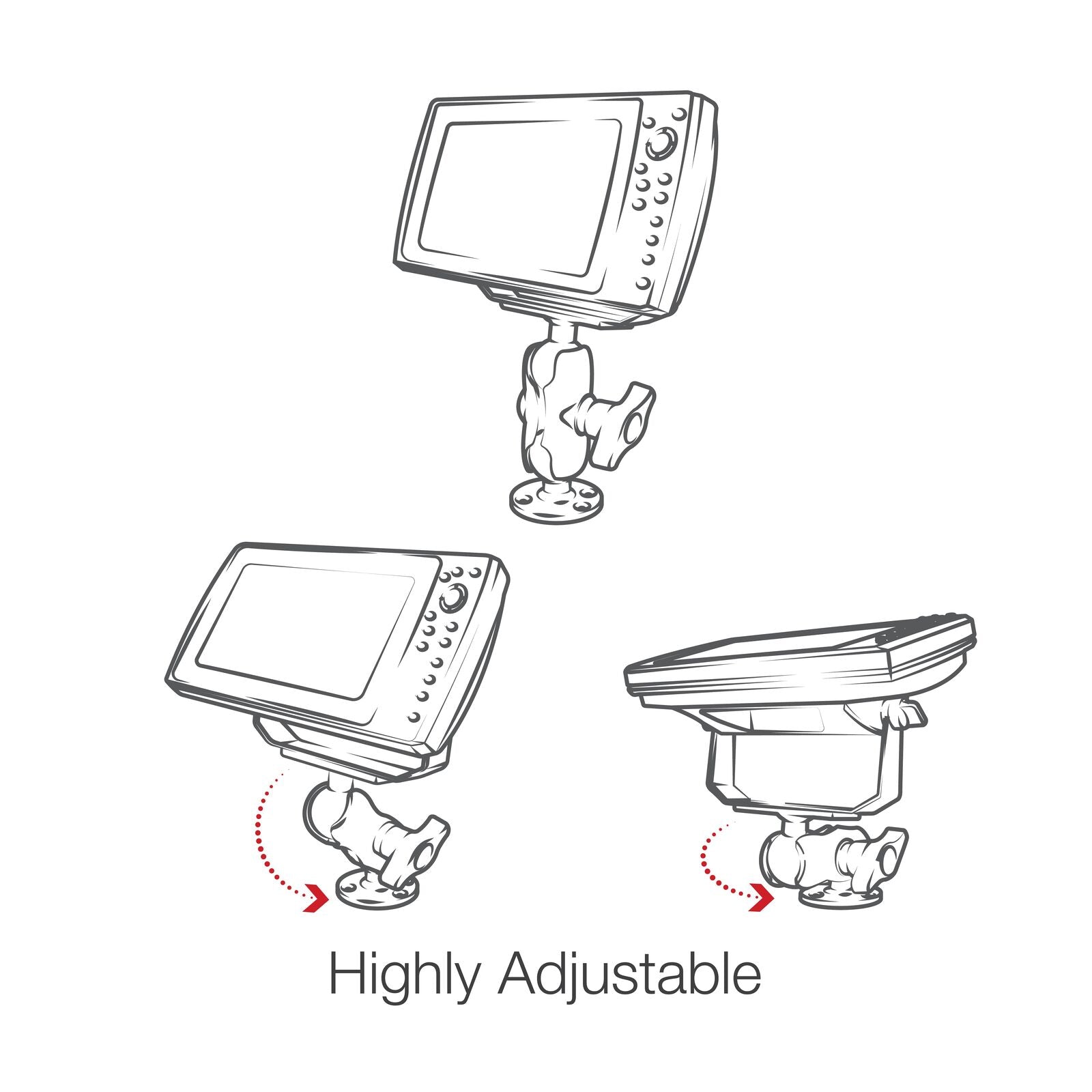

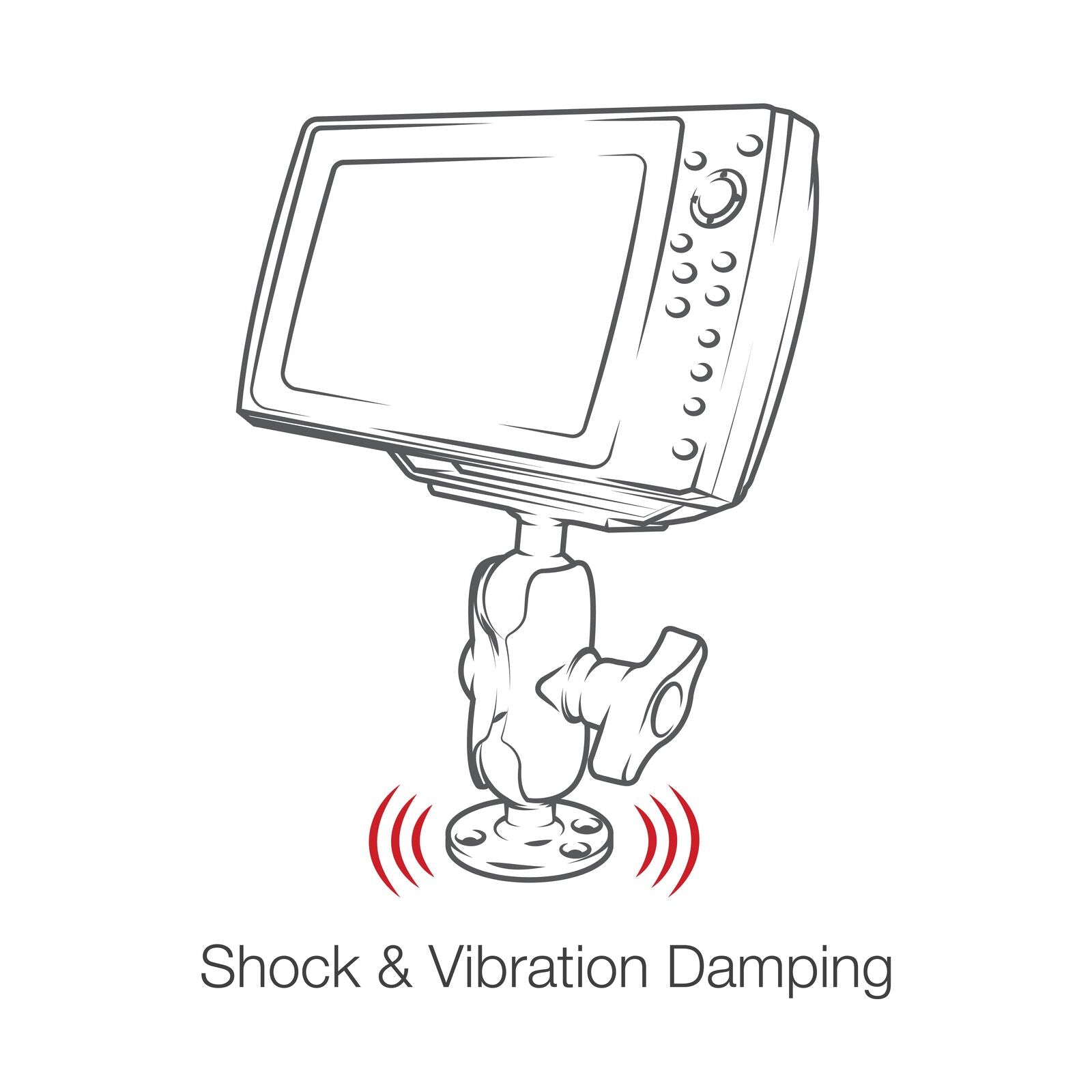

This powder-coated, marine-grade aluminum Humminbird mount consists of a short length double socket arm, a 3.68" diameter round base with a 2.25" D size ball, and one 1.5" x 4.5" rectangular plate with a 2.25" D size ball. The round plate contains two mounting holes at 180-degrees and three mounting holes at 120-degrees. The 1.5" x 4.5" rectangular plate contains a 4-hole pattern compatible with Humminbird 8, 9 & 10 models. The rubber ball and socket technology provides shock and vibration damping, and allows for near-infinite adjustability so you can position your device at the perfect viewing angle.

Specifications

<table class="ram-

Specs

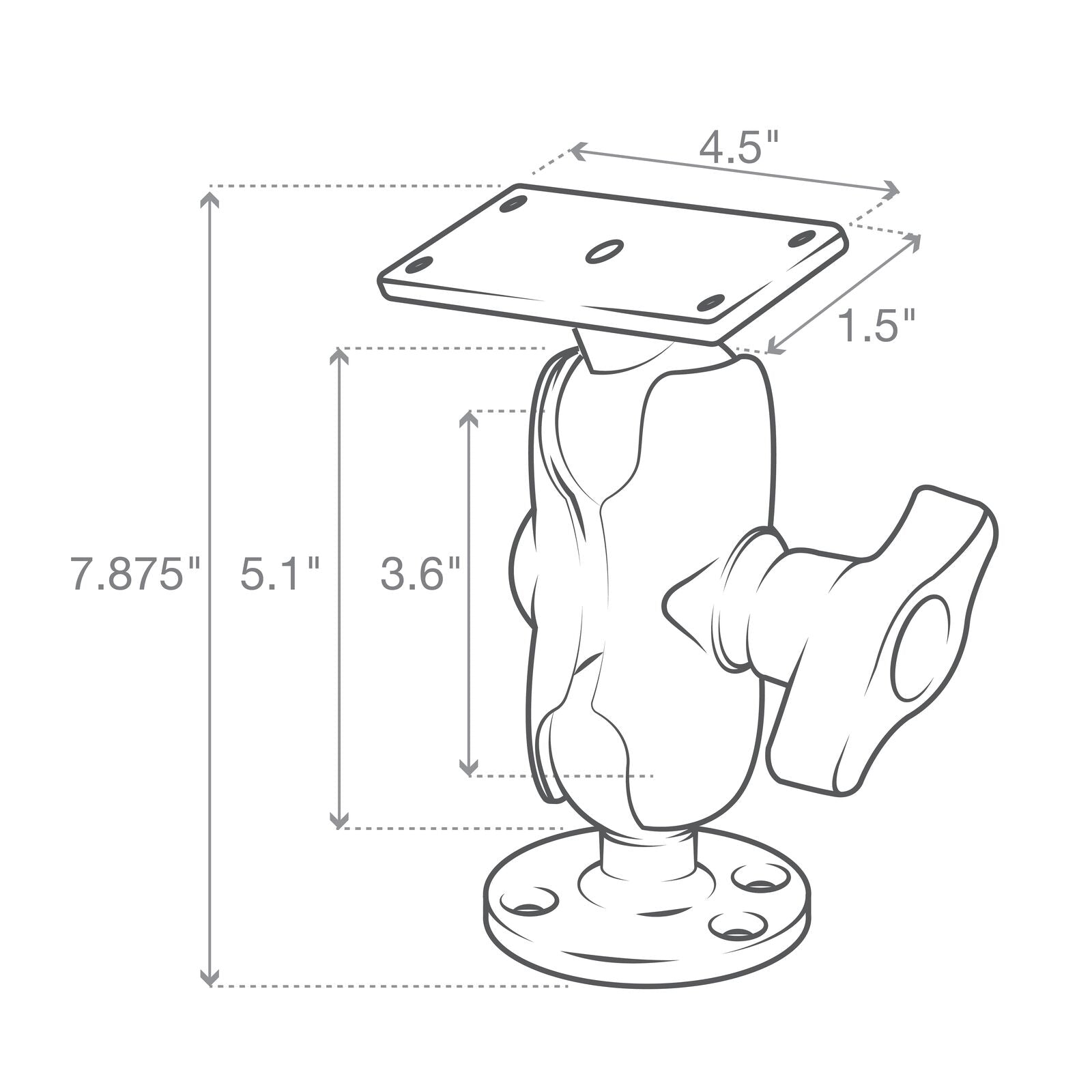

" style="font-family: Arial, sans-serif;font-size: 18px;border-collapse: collapse;width: 100%"> Product Dimensions Overall Height: 7.875" Socket To Socket Length 3.6" Hole Pattern Rectangular Plate: 1.5" x 4.5" | Round Plate: See Drawing Plate Size Top Plate: 2" x 5" | Bottom Plate: 3.68" Diameter Ball Size D Size (2.25") Weight Capacity Standard Use: 6 lbs | Heavy-Duty Use: 5 lbs Materials Marine-grade aluminum Packaging Type Poly Bag Weight 3.0 lb Additional Information For Humminbird devices greater than 10" including Helix, Solix & Apex, the version of this mount with RAM® Hi-Torq™ wrench is recommended for extra support. See RAM-D-202-25-C-202-KNOB9HU .
