RAM Large Round Plate with Ball – E Size

OVERVIEW

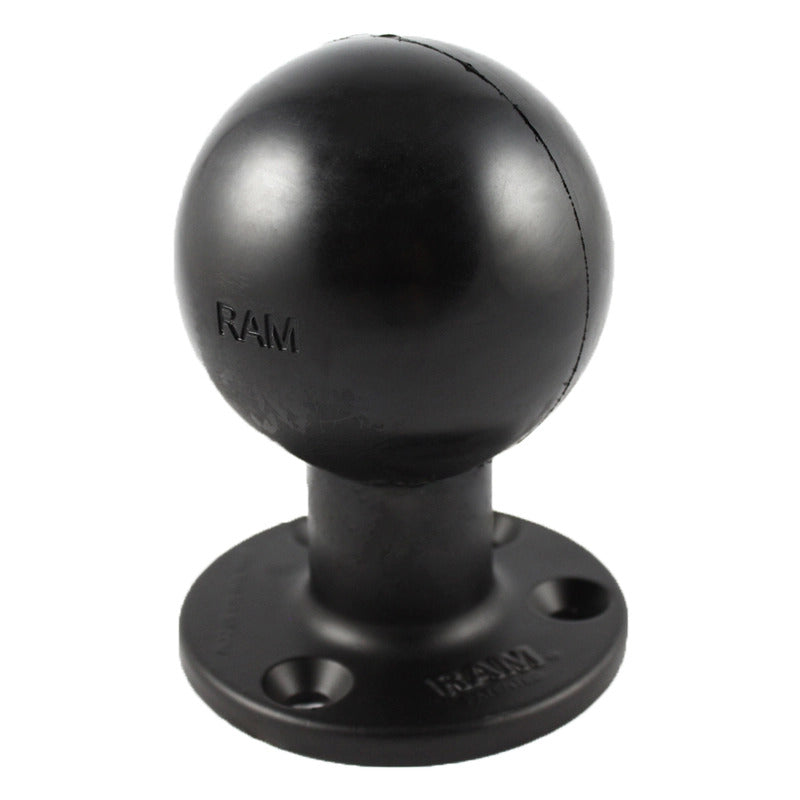

The RAM-E-202U consists of a 3.38" diameter rubber ball, connected at right angles to a 3.68" diameter round plate. The plate has pre-drilled holes in the base plate, including two holes at 180 degrees and three holes at 120 degrees.

HOLE PATTERN

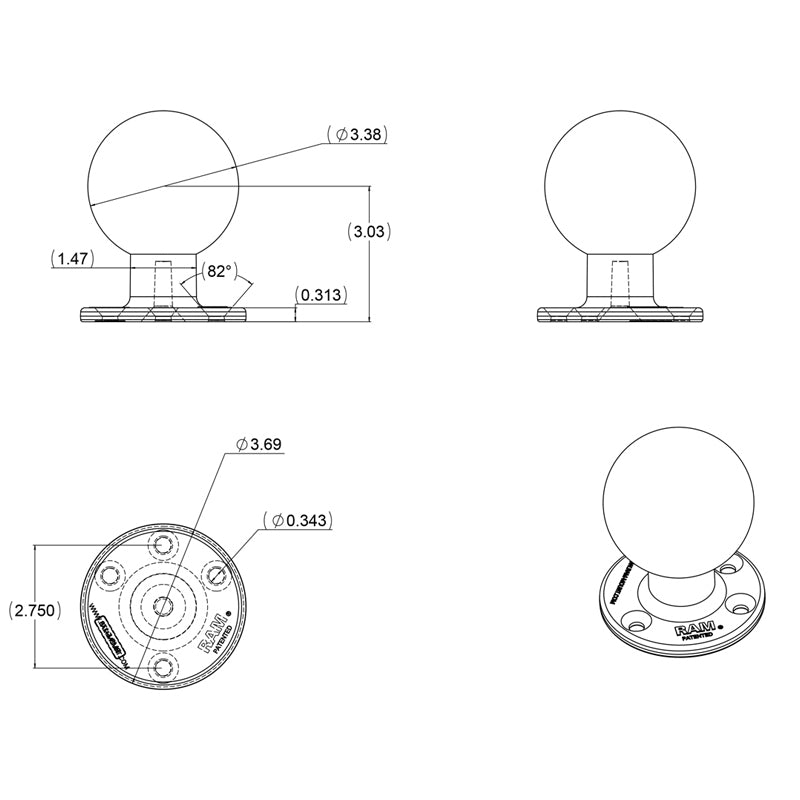

See Drawing

BALL/SOCKET SIZE

E Size (3.35")

WEIGHT CAPACITY

Standard Use: 15 lbs
Heavy-Duty Use: 10 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

1.55 lbs.
